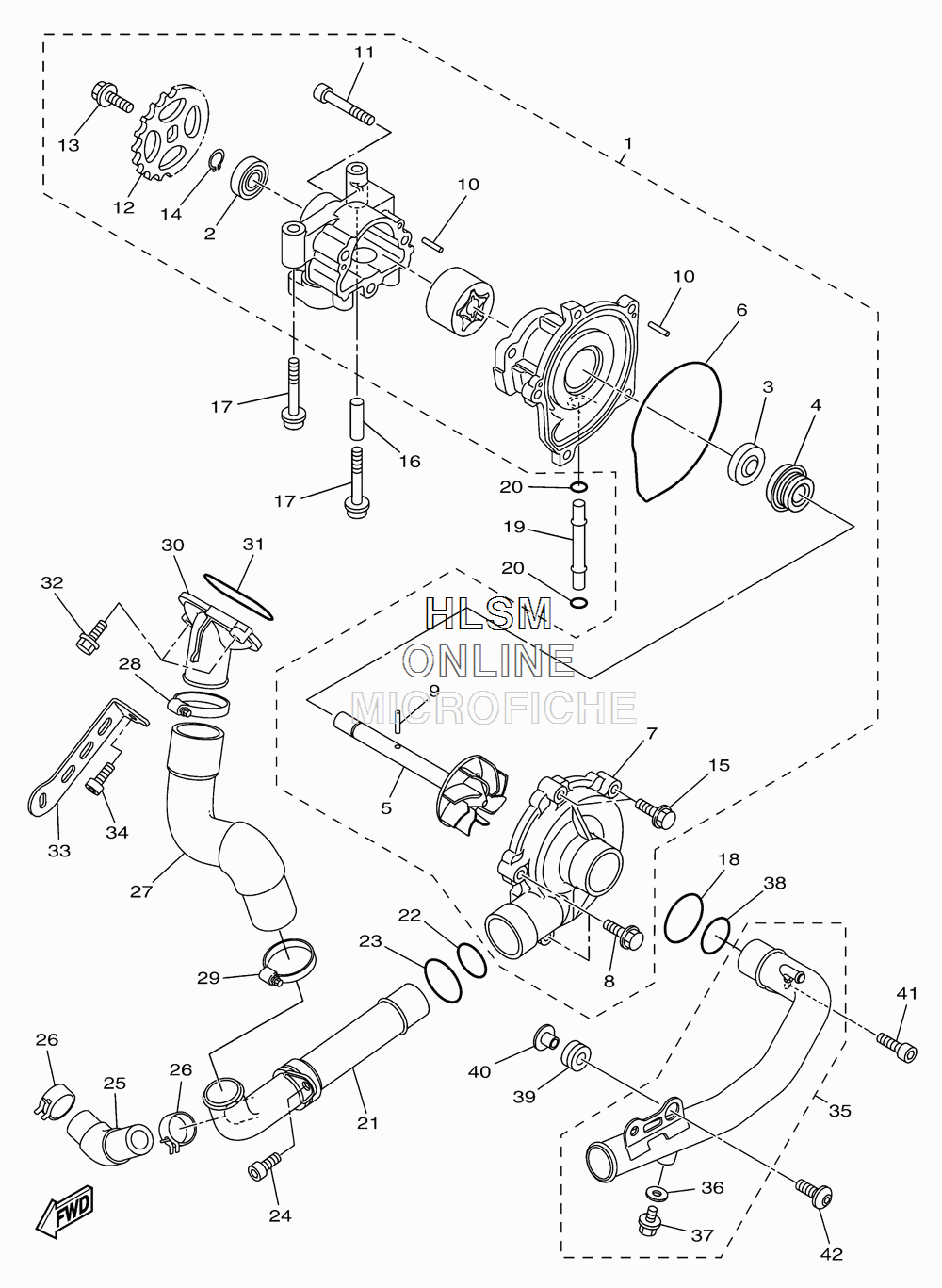

WATER PUMP для Yamaha YZF-R1 (BLACK METALLIC/PURPLISH BLUE) - 2011 года выпуска
-
№АртикулНазвание
-
114B-12420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
293306-00106-00 ...BEARING...BEARING
-
314B-13338-00-00 ...SEAL...SEAL
-
44C8-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
514B-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
64XV-12439-00-00 ...O-RING...O-RING
-
714B-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
895022-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
993603-17070-00 ...PIN, DOWEL...PIN, DOWEL
-
1093603-12007-00 ...PIN, DOWEL...PIN, DOWEL
-
1191312-06045-00 ...BOLT...BOLT
-
1214B-13355-00-00 ...SPROCKET, DRIVEN...SPROCKET, DRIVEN
-
1390105-06066-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1499009-12400-00 ...CIRCLIP...CIRCLIP
-
1595022-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1691808-30031-00 PIN, DOWELPIN, DOWEL
-
1790110-06167-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1893210-357A2-00 O-RINGO-RING
-
194XV-12485-00-00 PIPE 5PIPE 5
-
2093210-06667-00 O-RINGO-RING
-
2114B-12481-00-00 PIPE 1PIPE 1
-
2293210-235A1-00 O-RINGO-RING
-
2393210-27370-00 O-RINGO-RING
-
2490110-06182-00 BOLT (4MY)BOLT (4MY)
-
2514B-12588-00-00 HOSE 5HOSE 5
-
2690467-200A0-00 CLIPCLIP
-
2714B-12576-00-00 HOSE 1HOSE 1
-
2890450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3014B-12469-10-00 JOINT 1JOINT 1
-
3193210-46044-00 O-RINGO-RING
-
3295024-06025-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
3314B-12637-00-00 STAY 1STAY 1
-
3491314-06012-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3514B-12484-00-00 PIPE 4PIPE 4
-
3690430-06014-00 ...GASKET...GASKET
-
3790153-06002-00 ...SCREW, HEXAGON...SCREW, HEXAGON
-
3893210-235A1-00 O-RINGO-RING
-
3990480-12010-00 GROMMETGROMMET
-
4090387-06112-00 COLLARCOLLAR
-
4190110-06182-00 BOLT (4MY)BOLT (4MY)
-
4290149-06022-00 SCREWSCREW
