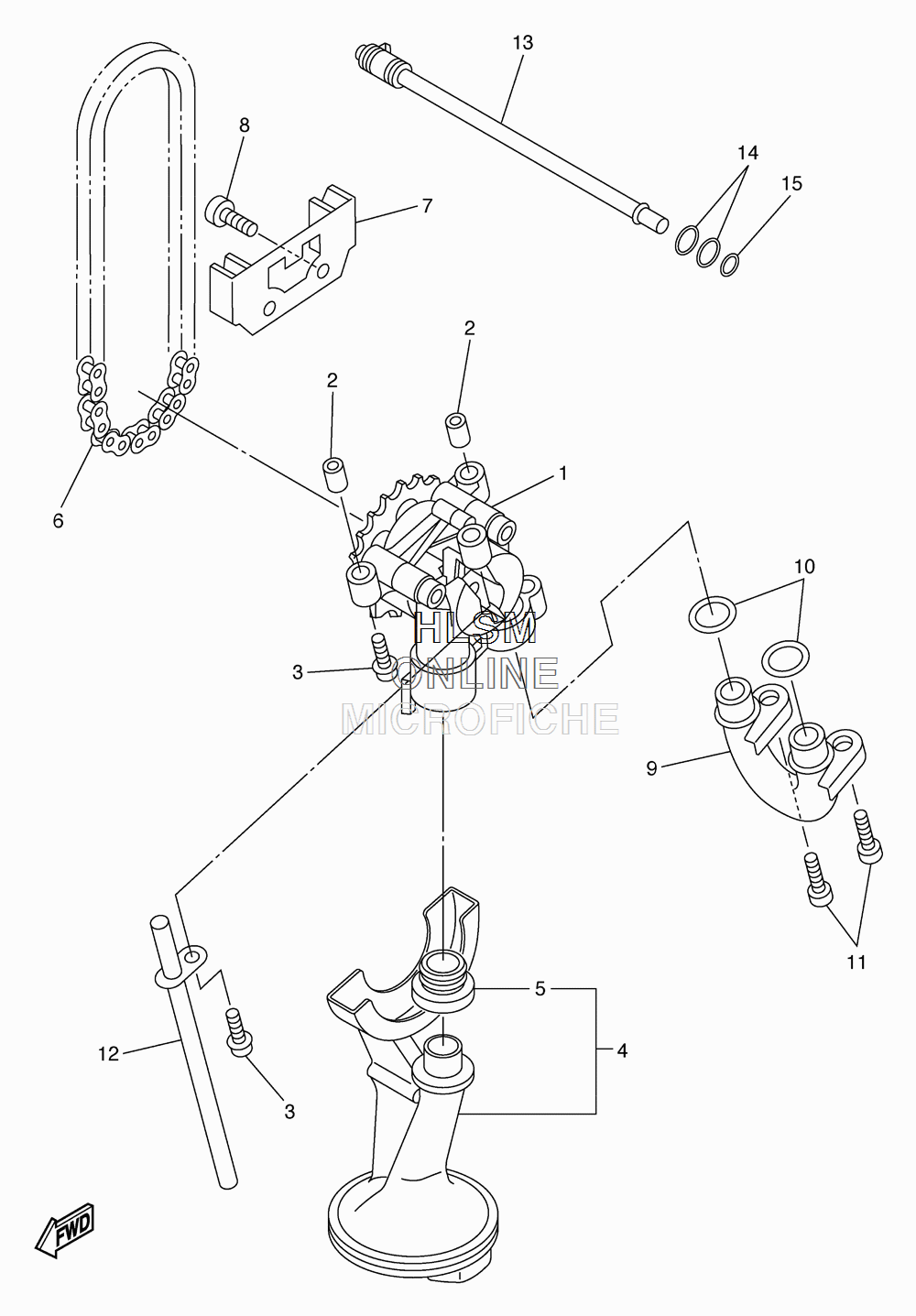

OIL PUMP для Yamaha FZ6R (BLUISH WHITE COCKTAIL) - 2012 года выпуска
-
№АртикулНазвание
-
15MT-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
291808-17032-00 PIN, DOWELPIN, DOWEL
-
395812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
45SL-13410-00-00 STRAINER HOUSING ASSYSTRAINER HOUSING ASSY
-
55EB-13415-00-00 ...SEAL, OIL STRAINER...SEAL, OIL STRAINER
-
694580-25080-00 CHAINCHAIN
-
75EB-13898-00-00 HOLDERHOLDER
-
890110-06161-00 BOLT (4MY)BOLT (4MY)
-
92C0-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
1093210-14003-00 O-RINGO-RING
-
1190110-06161-00 BOLT (4MY)BOLT (4MY)
-
125EB-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
135EB-1316E-00-00 PIPE, DELIVERY 5PIPE, DELIVERY 5
-
1493210-09165-00 O-RINGO-RING
-
1593210-06667-00 O-RINGO-RING
