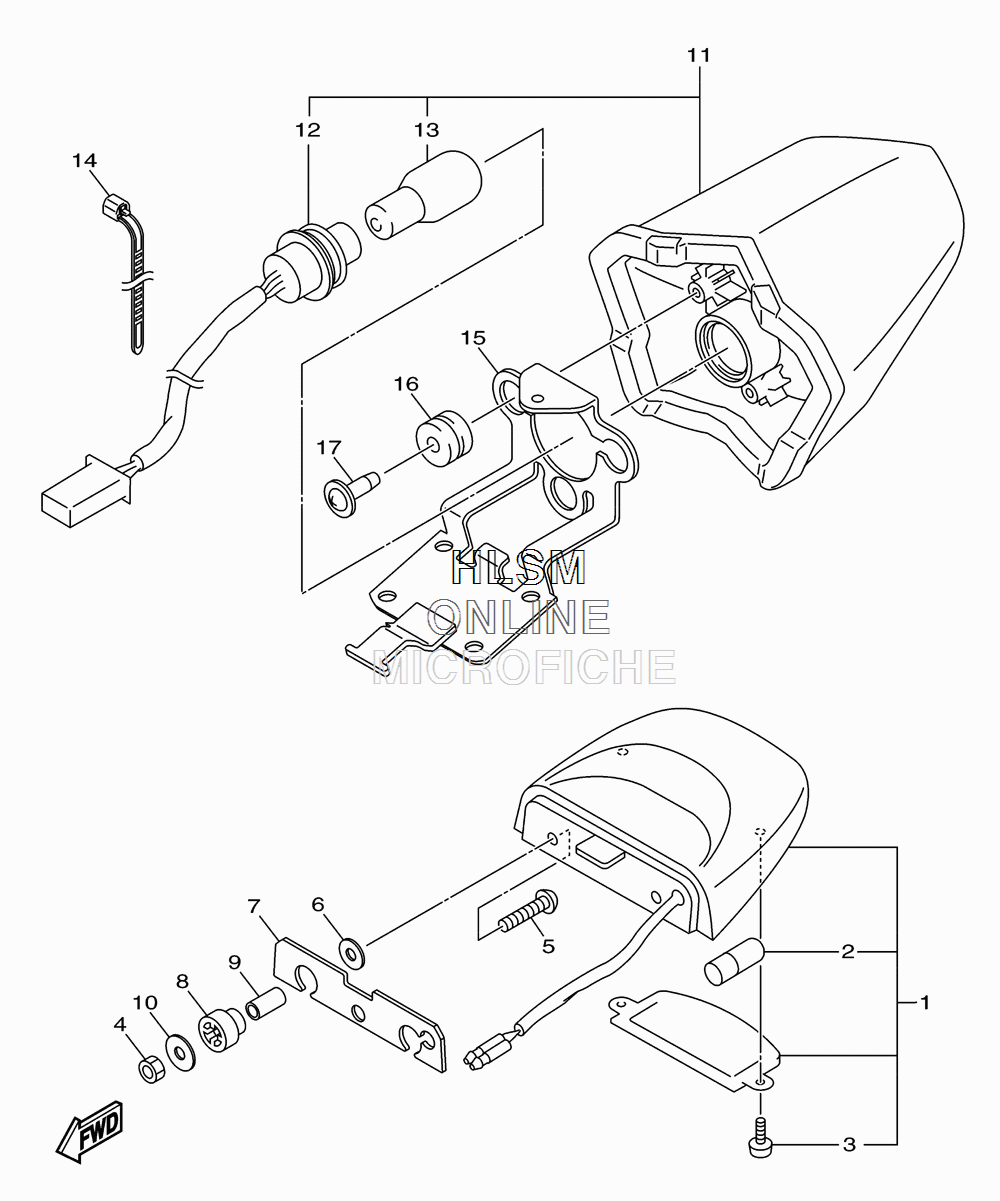

TAILLIGHT для Yamaha FZ6R (BLUISH WHITE COCKTAIL) - 2012 года выпуска
-
№АртикулНазвание
-
15VX-84745-01-00 LICENCE LIGHT UNIT ASSYLICENCE LIGHT UNIT ASSY
-
24HC-84744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
397706-04012-00 ...SCREW, TRUSS...SCREW, TRUSS
-
495602-05100-00 NUT, UNUT, U
-
590111-05030-00 BOLTBOLT
-
690201-05043-00 WASHER, PLATEWASHER, PLATE
-
720S-84753-00-00 DAMPERDAMPER
-
83F9-84553-00-00 DAMPERDAMPER
-
990387-05049-00 COLLARCOLLAR
-
1090201-05025-00 WASHER, PLATEWASHER, PLATE
-
1120S-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
1220S-84735-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
133P6-83331-10-00 ...BULB, FLASHER (12V-21/5W)...BULB, FLASHER (12V-21/5W)
-
1490464-25004-00 CLAMPCLAMP
-
1536P-84519-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
1690480-18276-00 GROMMETGROMMET
-
1790164-05001-00 SCREW, TAPPINGSCREW, TAPPING
