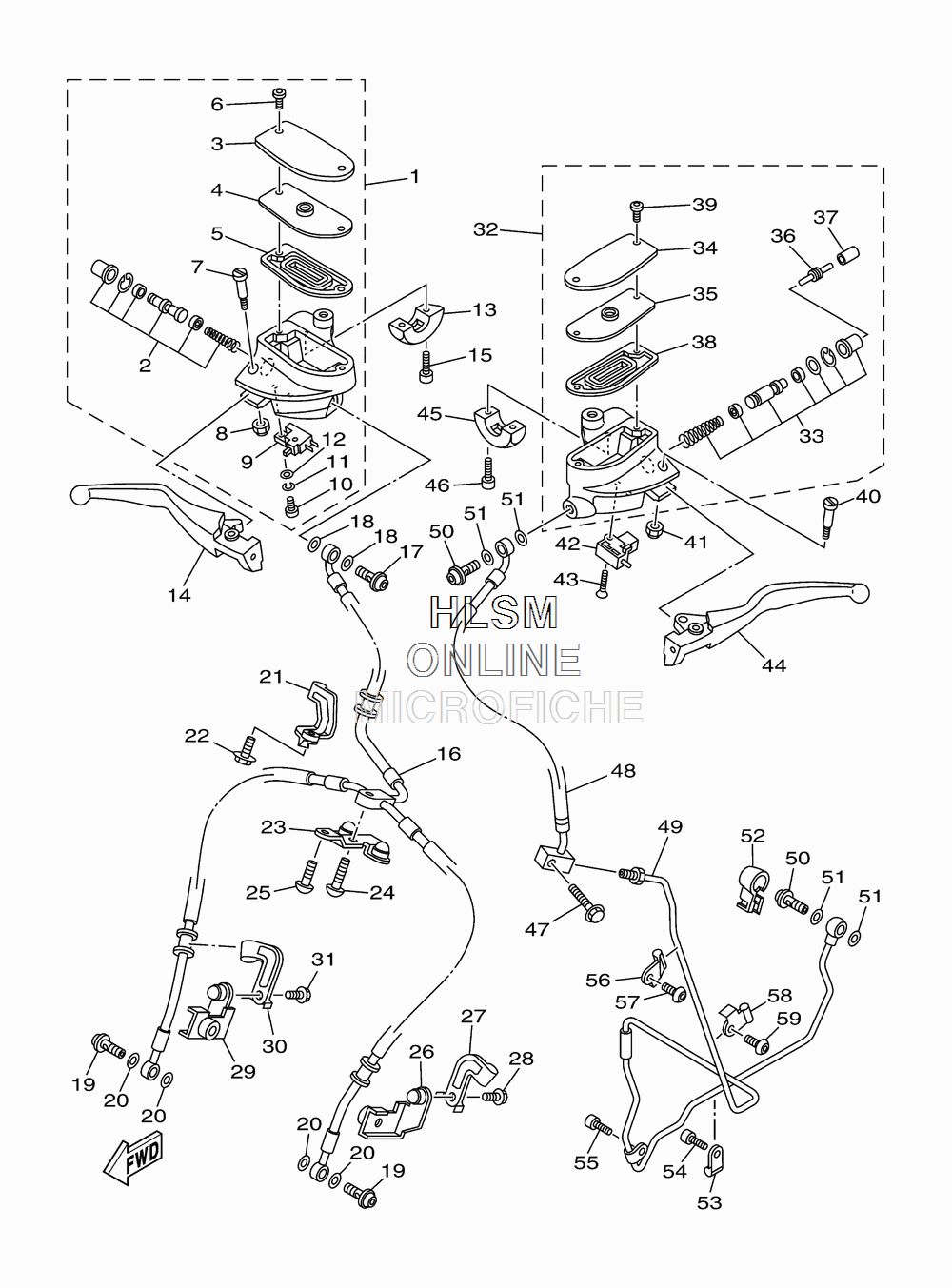

BRAKE - FRONT MASTER CYLINDER для Yamaha RAIDER - 2012 года выпуска
-
№АртикулНазвание
-
11D7-W2587-20-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25PX-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
31D7-25852-20-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
41D7-2585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
51D7-25854-01-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
61D7-2589H-00-00 ...SCREW...SCREW
-
71D7-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
895604-06100-00 ...NUT, U...NUT, U
-
94HM-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
1098502-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1192907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1292907-04600-00 ...WASHER...WASHER
-
131D7-26467-20-00 HOLDERHOLDER
-
141D7-83922-10-00 LEVER 2LEVER 2
-
1591312-06025-00 BOLTBOLT
-
165C7-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1790401-10172-00 BOLT, UNIONBOLT, UNION
-
1890430-10005-00 GASKETGASKET
-
1990401-10172-00 BOLT, UNIONBOLT, UNION
-
2090430-10005-00 GASKETGASKET
-
215C7-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2290105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
235C7-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2495027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2590105-06063-00 BOLT, FLANGEBOLT, FLANGE
-
265C7-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
275C7-25192-00-00 STAYSTAY
-
2895027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
295C7-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
305C7-2519F-00-00 STAY 2STAY 2
-
3195027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
321D7-W2645-20-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
331D7-W0099-00-00 ...CYLINDER KIT, MASTER (CLUTCH)...CYLINDER KIT, MASTER (CLUTCH)
-
341D7-25852-70-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
351D7-2585B-10-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
361D7-26464-00-00 ...ROD, PUSH...ROD, PUSH
-
373GM-26455-00-00 ...BUSH...BUSH
-
381D7-25854-11-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
391D7-2589H-00-00 ...SCREW...SCREW
-
401D7-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
4195604-06100-00 NUT, U (4NK)NUT, U (4NK)
-
423YX-82917-01-00 SWITCHSWITCH
-
4390151-03002-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
441D7-83912-10-00 LEVER 1LEVER 1
-
451D7-26467-70-00 HOLDERHOLDER
-
4691312-06025-00 BOLT (4MY)BOLT (4MY)
-
4790105-06791-00 BOLT, FLANGEBOLT, FLANGE
-
485C7-26472-00-00 HOSE, CLUTCH 1HOSE, CLUTCH 1
-
495C7-26473-00-00 HOSE, CLUTCH 2HOSE, CLUTCH 2
-
5090401-10172-00 BOLT, UNIONBOLT, UNION
-
5190430-10005-00 GASKETGASKET
-
521D7-26477-00-00 COVERCOVER
-
531D7-26475-00-00 HOLDERHOLDER
-
5490110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5590110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
565C7-26481-00-00 HOLDER, 2HOLDER, 2
-
5790111-06102-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
585C7-26482-00-00 HOLDER, 3HOLDER, 3
-
5990111-06102-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
