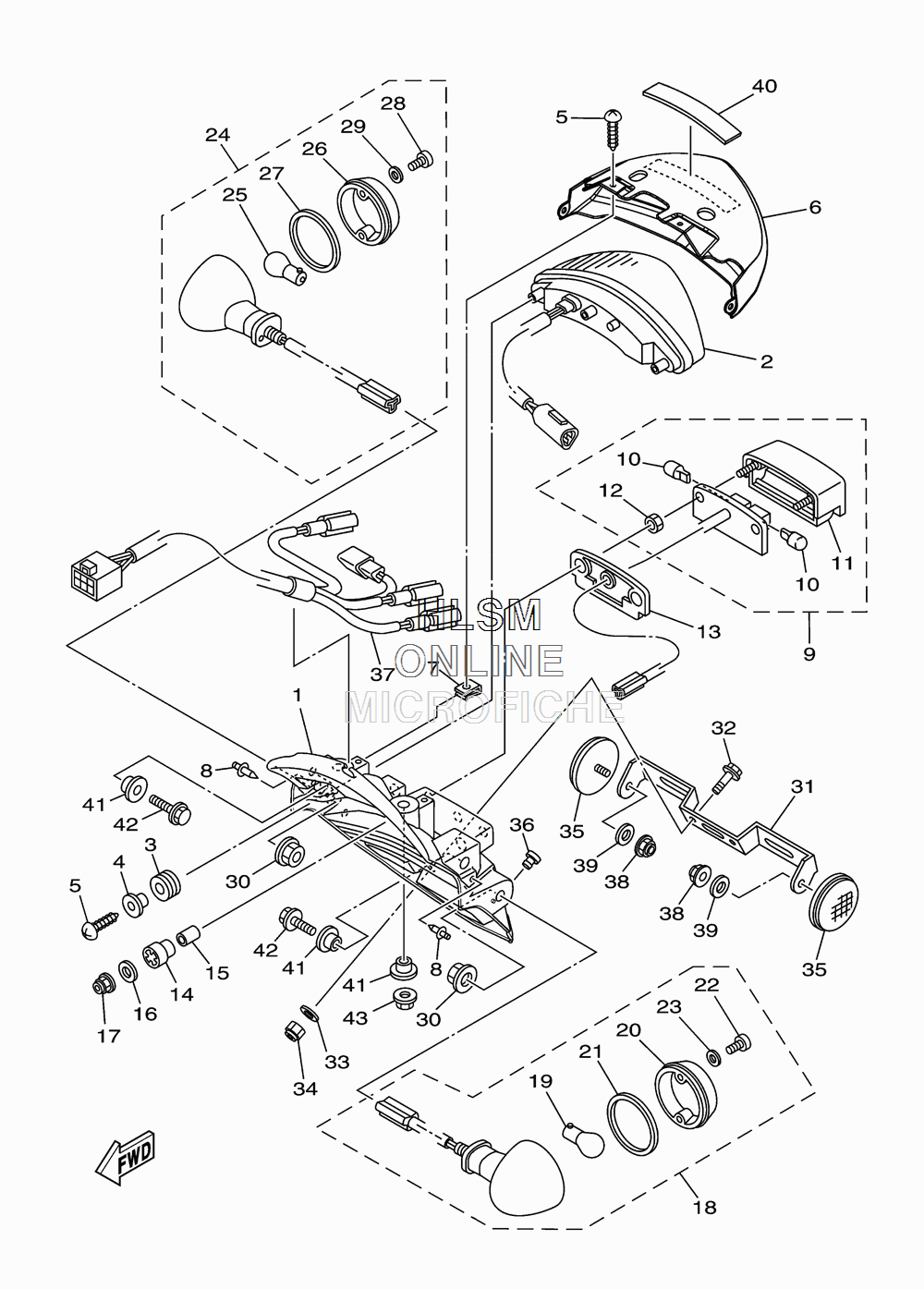

TAILLIGHT для Yamaha RAIDER - 2012 года выпуска
-
№АртикулНазвание
-
15C7-84711-00-00 BASE, TAILLIGHTBASE, TAILLIGHT
-
25C7-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
35PX-84553-00-00 DAMPERDAMPER
-
45PX-84557-00-00 COLLARCOLLAR
-
597702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
65C7-84716-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
790183-05042-00 NUT, SPRINGNUT, SPRING
-
890269-06012-00 RIVETRIVET
-
95C7-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
105PX-84744-00-00 ...BULB (12V-2CP)...BULB (12V-2CP)
-
115PX-84749-00-00 ...BODY, LICENSE LIGHT...BODY, LICENSE LIGHT
-
125PX-84748-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
135PX-84742-00-00 SEAT, BASESEAT, BASE
-
143F9-84553-00-00 DAMPERDAMPER
-
1590387-06241-00 COLLARCOLLAR
-
1690201-05025-00 WASHER, PLATEWASHER, PLATE
-
1795602-05100-00 NUT, UNUT, U
-
185C7-83330-10-00 REAR FLASHER LIGHT ASSY 1 (LEFT)REAR FLASHER LIGHT ASSY 1 (LEFT)
-
195VN-83331-00-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
205PX-83312-10-00 ...LENS, FLASHER...LENS, FLASHER
-
215PX-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2297704-40625-00 ...SCREW, TAPPING...SCREW, TAPPING
-
235PX-83348-00-00 ...WASHER...WASHER
-
245C7-83340-10-00 REAR FLASHER LIGHT ASSY 2 (RIGHT)REAR FLASHER LIGHT ASSY 2 (RIGHT)
-
255VN-83331-00-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
265PX-83342-10-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
275PX-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2897704-40625-00 ...SCREW, TAPPING...SCREW, TAPPING
-
295PX-83348-00-00 ...WASHER...WASHER
-
3095702-12500-00 NUT, FLANGENUT, FLANGE
-
315C7-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
3295027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3390201-06380-00 WASHER PLAINWASHER PLAIN
-
3495607-06100-00 NUT, UNUT, U
-
35449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
3690338-06018-00 PLUGPLUG
-
375C7-84717-10-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
3895607-05200-00 NUT, U FLANGENUT, U FLANGE
-
3990201-051K1-00 WASHER, PLATEWASHER, PLATE
-
401AE-2834E-00-00 DAMPER 3 (LEFT)DAMPER 3 (LEFT)
-
4190387-06153-00 COLLARCOLLAR
-
4290105-06085-00 BOLT, FLANGEBOLT, FLANGE
-
4395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
