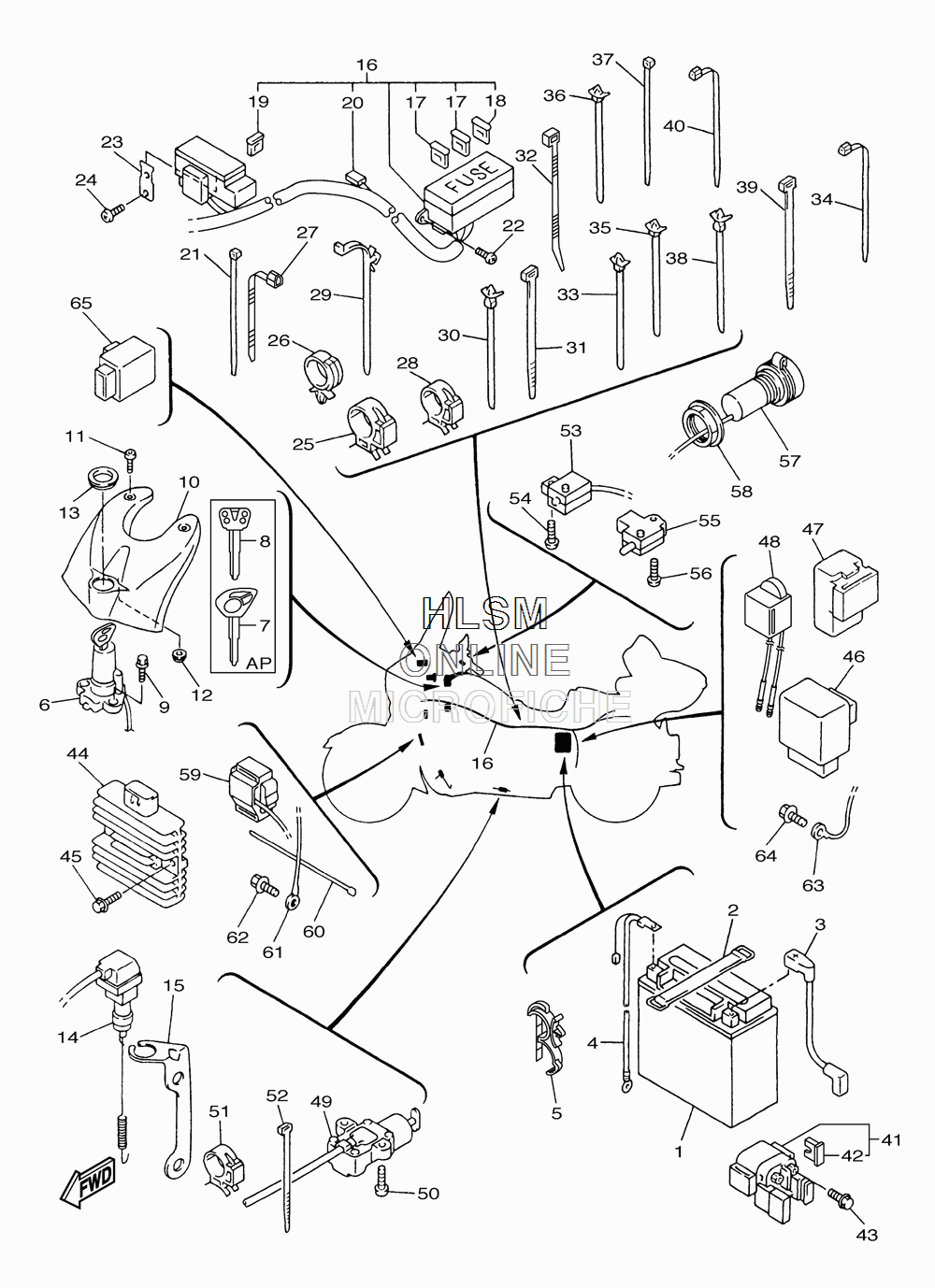

ELECTRICAL для Yamaha ROYAL STAR VENTURE S - 2012 года выпуска
-
№АртикулНазвание
-
14SH-82100-22-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
2120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
34NK-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
41D6-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
590464-18246-00 CLAMPCLAMP
-
64XY-82501-20-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
75PX-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
84BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
990109-08195-00 BOLTBOLT
-
104XY-8291G-00-00 COVER, SWITCHCOVER, SWITCH
-
1190149-06264-00 SCREWSCREW
-
1290480-01558-00 GROMMETGROMMET
-
134XY-82545-00-00 GROMMETGROMMET
-
144XY-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
154XY-82539-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
164XY-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
1742X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
1836Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
191NL-82151-00-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
203WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
2190464-16061-00 CLAMPCLAMP
-
2298907-06012-00 SCREW, BINDSCREW, BIND
-
234XY-81953-00-00 STAY, RELAYSTAY, RELAY
-
2497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2590464-25217-00 CLAMPCLAMP
-
2690464-07209-00 CLAMPCLAMP
-
2790464-15195-00 CLAMPCLAMP
-
2890464-20191-00 CLAMPCLAMP
-
2990464-20213-00 CLAMPCLAMP
-
3090464-12036-00 CLAMPCLAMP
-
311UA-82591-00-00 BANDBAND
-
3290464-35132-00 CLAMPCLAMP
-
3390464-12089-00 CLAMPCLAMP
-
3490464-13073-00 CLAMPCLAMP
-
3590464-10112-00 CLAMPCLAMP
-
3690464-12036-00 CLAMPCLAMP
-
3790464-16061-00 CLAMPCLAMP
-
3890464-12036-00 CLAMPCLAMP
-
391UA-82591-00-00 BANDBAND
-
4090464-13077-00 CLAMPCLAMP
-
414BH-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
421AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
4395027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
444XY-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
4595807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
465EA-81950-00-00 RELAY ASSY (FOR SIDESTAND)RELAY ASSY (FOR SIDESTAND)
-
471UY-81950-92-00 RELAY ASSYRELAY ASSY
-
485FU-82560-20-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
493LD-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
5090157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
5190464-10190-00 CLAMPCLAMP
-
521UA-82591-00-00 BANDBAND
-
534XY-83980-10-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
5498907-04014-00 SCREW, BINDSCREW, BIND
-
554XY-82917-00-00 SWITCHSWITCH
-
5698907-04025-00 SCREW, BINDSCREW, BIND
-
574XY-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
584XY-82114-00-00 NUTNUT
-
594BH-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
6090464-16061-00 CLAMPCLAMP
-
614XY-8232Y-00-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
6295807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
634XY-82519-01-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
6495807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
654XY-81950-00-00 RELAY ASSYRELAY ASSY
