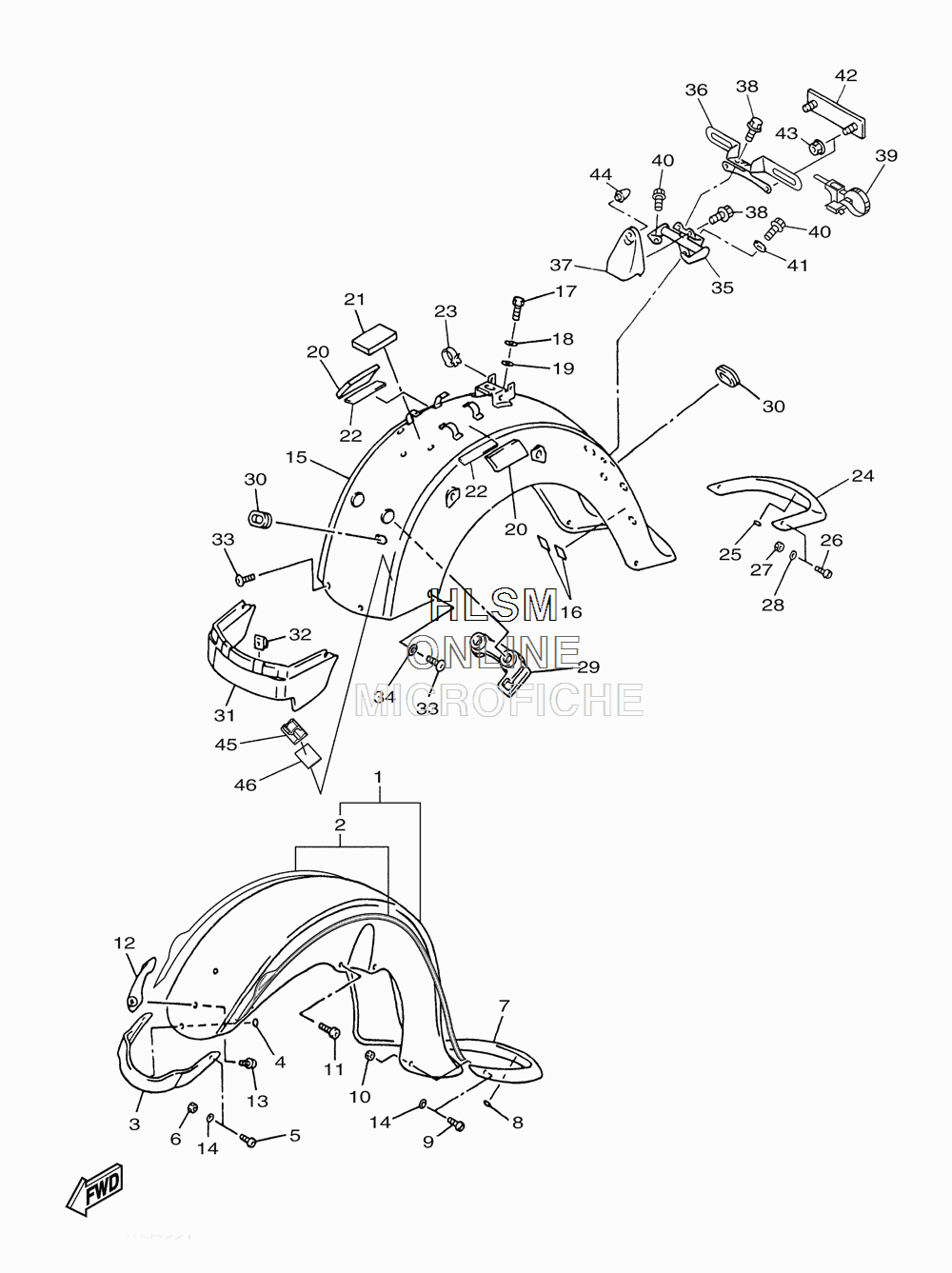

FENDER(S) для Yamaha ROYAL STAR VENTURE S - 2012 года выпуска
-
№АртикулНазвание
-
14NL-Y2150-21-P5 FRONT FENDER ASSY (BLACK METALLIC M)FRONT FENDER ASSY (BLACK METALLIC M)
-
22C9-21570-60-00 ...GRAPHIC SET, FRONT FENDER...GRAPHIC SET, FRONT FENDER
-
34NL-21561-11-00 FLAP 2FLAP 2
-
490183-06008-00 NUT, SPRINGNUT, SPRING
-
592014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
695304-05600-00 NUTNUT
-
74NL-21521-10-00 FLAP, FRONT FENDERFLAP, FRONT FENDER
-
890183-06008-00 NUT, SPRINGNUT, SPRING
-
992014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1095304-05600-00 NUTNUT
-
1191314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
124NL-21577-10-00 MASCOTMASCOT
-
1390159-06107-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
144NL-21575-10-00 SEAL 1SEAL 1
-
154XY-21610-10-P1 REAR FENDER COMP. (BLACK METALLIC M)REAR FENDER COMP. (BLACK METALLIC M)
-
163MA-27491-00-00 PROTECTORPROTECTOR
-
1797007-08016-00 BOLTBOLT
-
1892907-08200-00 WASHERWASHER
-
1990202-09227-00 WASHER, PLATEWASHER, PLATE
-
204XY-21639-00-00 DAMPER 2DAMPER 2
-
214XY-21649-00-00 DAMPERDAMPER
-
224XY-21638-00-00 DAMPER 1DAMPER 1
-
2390464-18246-00 CLAMPCLAMP
-
244NL-21621-10-00 FLAPFLAP
-
2590183-06008-00 NUT, SPRINGNUT, SPRING
-
2692014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2795304-05600-00 NUTNUT
-
284NL-21575-10-00 SEAL 1SEAL 1
-
294NK-21649-00-00 DAMPERDAMPER
-
3090480-15061-00 GROMMETGROMMET
-
314NK-21621-00-P1 FLAP (BLACK METALLIC M)FLAP (BLACK METALLIC M)
-
3290183-06053-00 NUT, SPRINGNUT, SPRING
-
3390110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490202-06170-00 WASHER, PLATEWASHER, PLATE
-
354XY-2317W-00-00 STAY, 9STAY, 9
-
365BN-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
371D6-84703-01-00 BRACKETBRACKET
-
3895027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3990464-25002-00 CLAMPCLAMP
-
4095024-06012-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
4190201-06043-00 WASHER, PLATEWASHER, PLATE
-
421FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4395707-05500-00 NUT, FLANGENUT, FLANGE
-
4442U-21639-00-00 DAMPER 2DAMPER 2
-
4590464-07002-00 CLAMPCLAMP
-
464XY-21669-00-00 SEALSEAL
