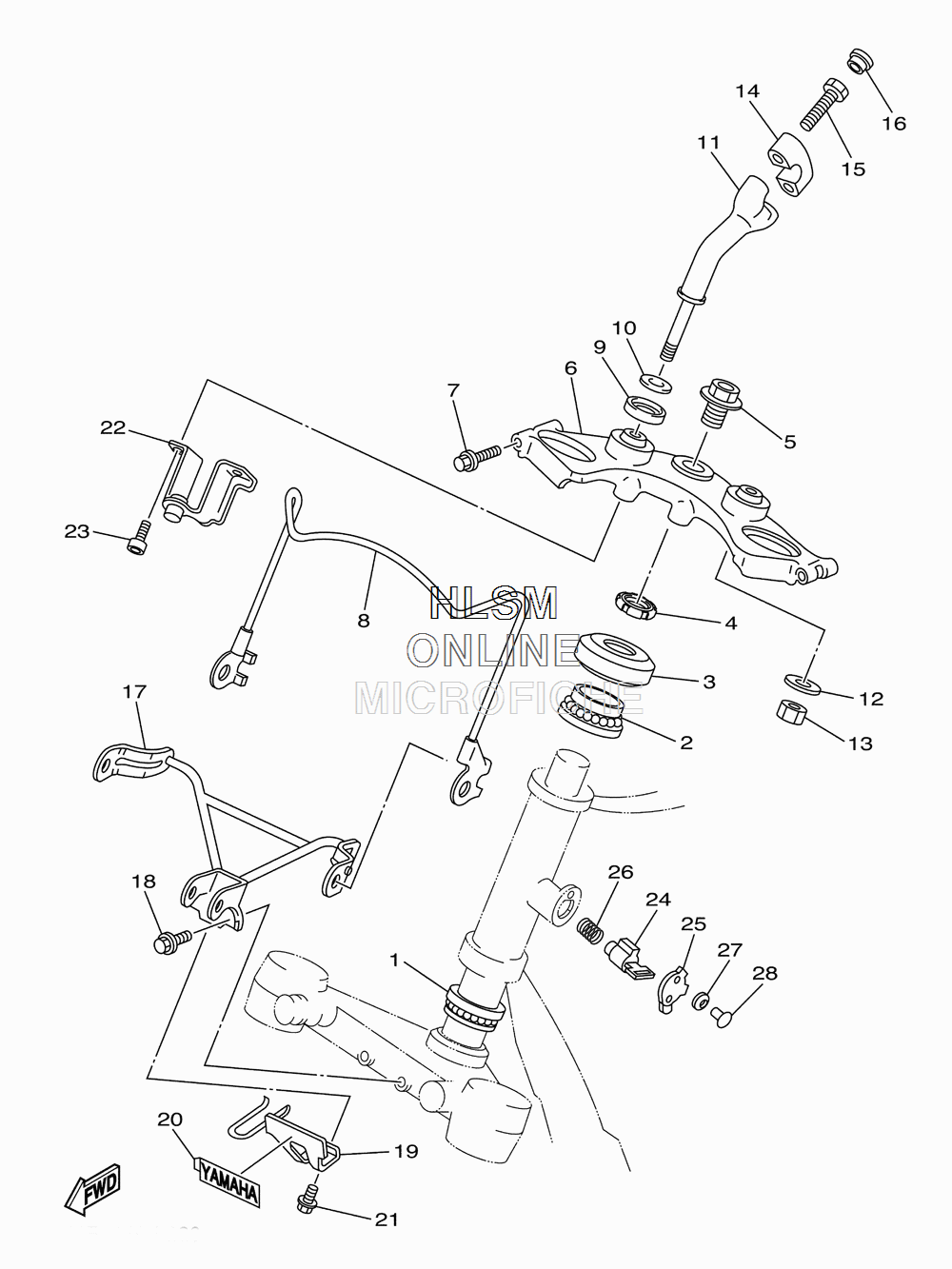

STEERING для Yamaha V STAR 250 - 2012 года выпуска
-
№АртикулНазвание
-
193399-99942-00 BEARING 2BEARING 2
-
293399-99950-00 BEARING 1BEARING 1
-
34HF-23415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
490179-25004-00 NUTNUT
-
590105-14102-00 BOLT, FLANGEBOLT, FLANGE
-
62UJ-W2341-00-35 CROWN, HANDLE (SILVER)CROWN, HANDLE (SILVER)
-
795024-08040-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
83DM-23164-00-00 STAY, LIGHT GUARDSTAY, LIGHT GUARD
-
93DM-23445-00-00 DAMPERDAMPER
-
1090201-105H3-00 WASHER, PLATEWASHER, PLATE
-
113DM-23442-20-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1290201-105A2-00 WASHER, PLATEWASHER, PLATE
-
1395617-10100-00 NUT, UNUT, U
-
144H7-23441-01-38 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1591314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690338-08163-00 PLUGPLUG
-
172UJ-23174-01-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
1895024-06016-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
192UJ-2317M-00-00 STAY 3STAY 3
-
203WF-2153E-40-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
2195024-06012-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
222UJ-2317E-00-00 STAY 1STAY 1
-
2391317-06016-00 BOLTBOLT
-
244R3-23408-00-00 STEERING LOCK ASSYSTEERING LOCK ASSY
-
253DM-23484-00-00 CAP, HANDLE LOCKCAP, HANDLE LOCK
-
2690502-09024-00 SPRING, CONICALSPRING, CONICAL
-
2790208-04029-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2890269-04003-00 RIVETRIVET
