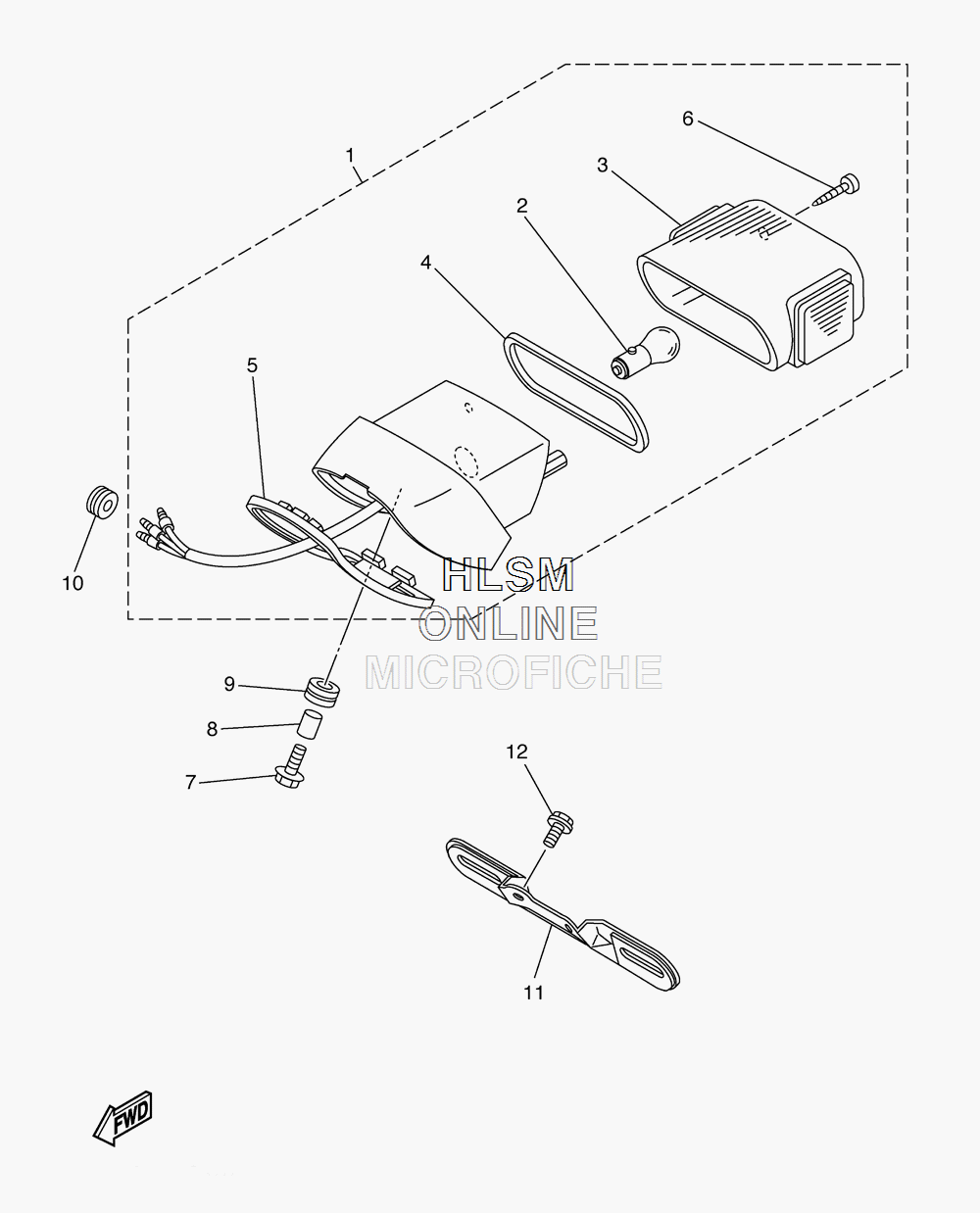

TAILLIGHT для Yamaha V STAR 250 - 2012 года выпуска
-
№АртикулНазвание
-
12UJ-84700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
2256-84714-60-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
32UJ-84721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
42UJ-84723-00-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
52UJ-84704-00-00 ...GASKET, TAILLIGHT...GASKET, TAILLIGHT
-
697701-40525-00 ...SCREW, TAPPING...SCREW, TAPPING
-
790119-06182-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890387-061V1-00 COLLARCOLLAR
-
990480-15316-00 GROMMETGROMMET
-
1090480-16501-00 GROMMETGROMMET
-
112UJ-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
1295807-06010-00 BOLT, FLANGEBOLT, FLANGE
