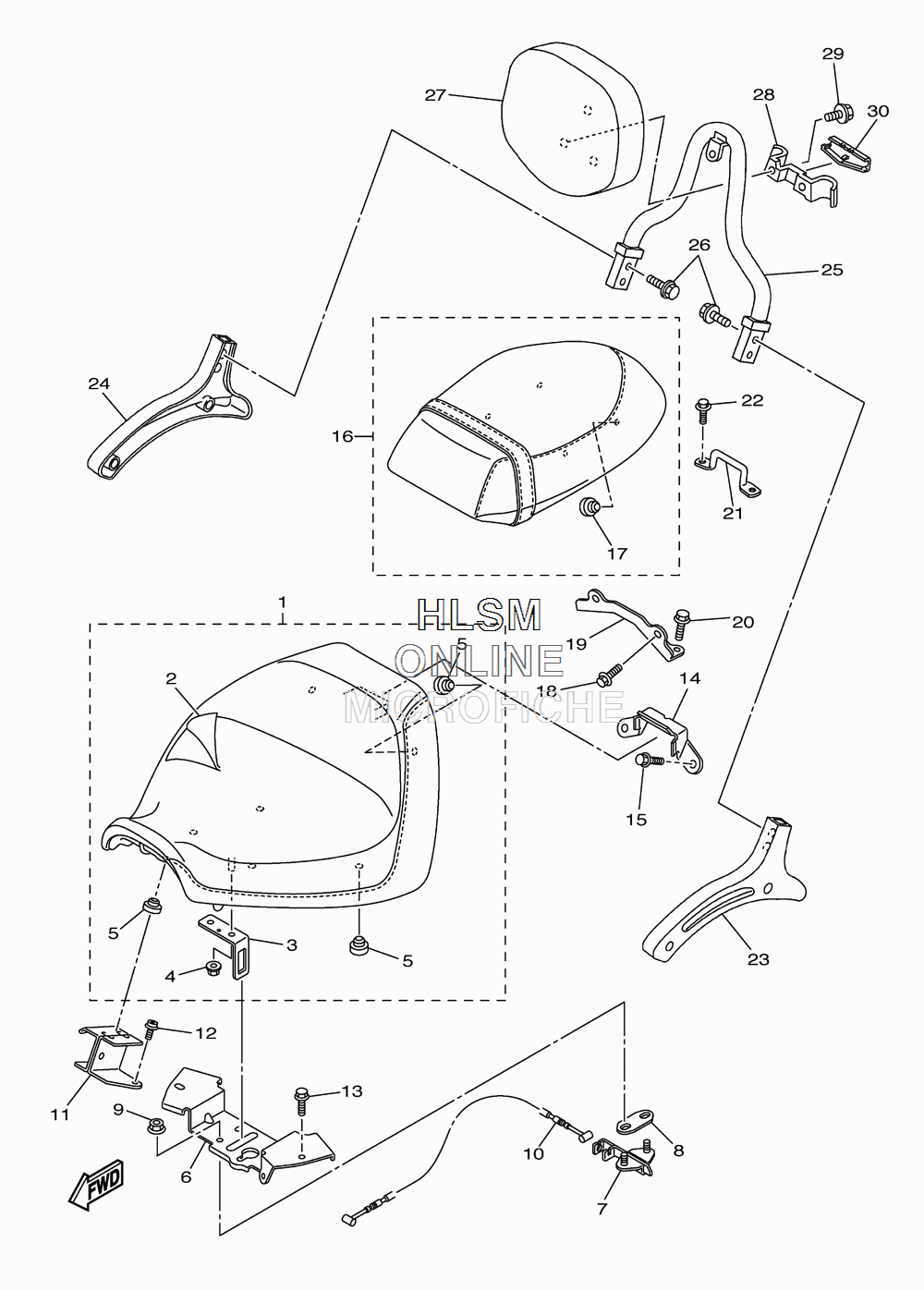

SEAT для Yamaha V STAR 950 TOURER - 2012 года выпуска
-
№АртикулНазвание
-
15S7-24710-01-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25S7-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
34NK-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
495702-06500-00 ...NUT...NUT
-
522W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
65S7-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
74BP-24705-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
84BP-24792-00-00 PLATEPLATE
-
995702-06500-00 NUTNUT
-
105S7-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
115S7-2475J-00-00 BRACKET, SEAT LEVER 2BRACKET, SEAT LEVER 2
-
1290110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1395822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
145S7-2475N-00-00 BRACKETBRACKET
-
1590105-08126-00 BOLT, FLANGEBOLT, FLANGE
-
165S7-24750-01-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
1722W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
1895022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
191D7-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
2095022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
215S7-2475R-00-00 BRACKET 6BRACKET 6
-
2295022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
2326S-2164A-00-00 GRIP 1GRIP 1
-
2426S-2164E-00-00 GRIP 2GRIP 2
-
2526S-2164F-00-00 STAY 1STAY 1
-
2695024-08012-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
275GA-2840F-20-00 BACK REST ASSYBACK REST ASSY
-
285GA-2164G-00-00 STAY 2STAY 2
-
2995024-06010-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
304NL-24786-02-00 EMBLEMEMBLEM
