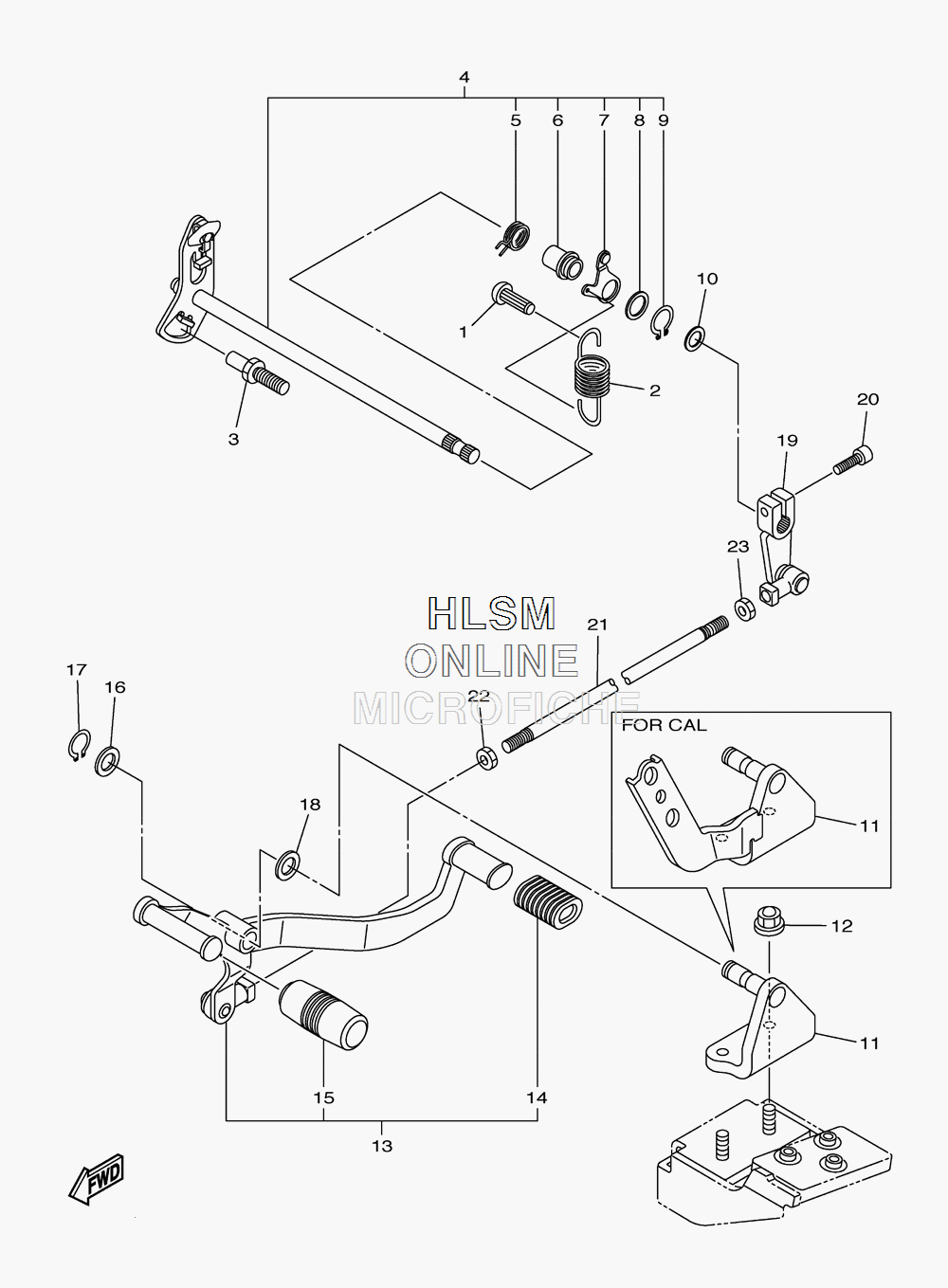

SHIFT SHAFT для Yamaha V STAR 950 TOURER - 2012 года выпуска
-
№АртикулНазвание
-
1132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
290506-18015-00 SPRING, TENSIONSPRING, TENSION
-
31D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
43D8-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
590508-32040-00 ...SPRING, TORSION...SPRING, TORSION
-
63D8-18175-00-00 ...SPACER...SPACER
-
73D8-18140-00-00 ...STOPPER LEVER ASSY...STOPPER LEVER ASSY
-
890201-177G4-00 ...WASHER, PLATE...WASHER, PLATE
-
999009-17400-00 ...CIRCLIP...CIRCLIP
-
1090201-127E1-00 WASHER, PLATEWASHER, PLATE
-
115S7-27443-00-00 BRACKET 3 (EXCEPT CALIF)BRACKET 3 (EXCEPT CALIF)
-
115S7-27443-10-00 BRACKET 3 (CALIF ONLY)BRACKET 3 (CALIF ONLY)
-
1290176-08009-00 NUT, CROWNNUT, CROWN
-
135S7-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
1422N-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
155VN-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
1690201-12688-00 WASHER, PLATEWASHER, PLATE
-
1799009-12400-00 CIRCLIPCIRCLIP
-
1890201-12049-00 WASHER, PLATEWASHER, PLATE
-
193D8-18112-01-00 ARM, SHIFTARM, SHIFT
-
2091312-06020-00 BOLTBOLT
-
212D1-18115-00-00 ROD, SHIFTROD, SHIFT
-
2290170-06024-00 NUTNUT
-
2395314-06600-00 NUTNUT
