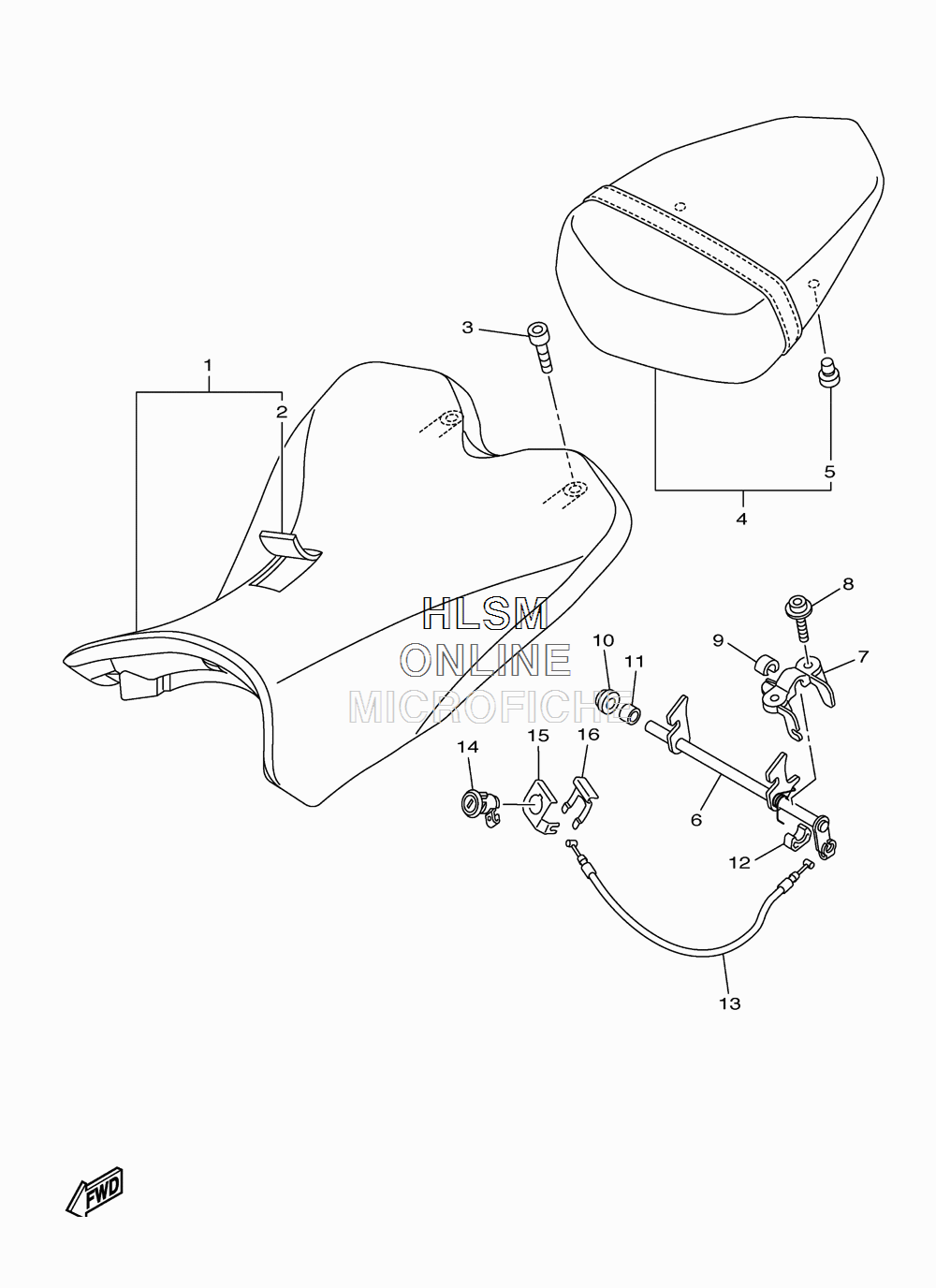

SEAT для Yamaha YZF-R1 (BLUISH WHITE COCKTAIL) - 2012 года выпуска
-
№АртикулНазвание
-
114B-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
214B-24711-00-00 ...COVER, SINGLE SEAT...COVER, SINGLE SEAT
-
390110-06258-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
414B-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
55SL-24723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
61KB-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
72C0-24792-00-00 PLATEPLATE
-
890110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
914B-24725-00-00 SPACER 1SPACER 1
-
1013S-24725-00-00 SPACER 1SPACER 1
-
1190560-08213-00 SPACERSPACER
-
1213S-24847-00-00 HOLDER 1HOLDER 1
-
1314B-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
145VY-W2470-00-00 ROTOR SETROTOR SET
-
155VY-2117K-01-00 STAY, LOCKSTAY, LOCK
-
165VY-2176V-00-00 SPRING, LOCK 2SPRING, LOCK 2
