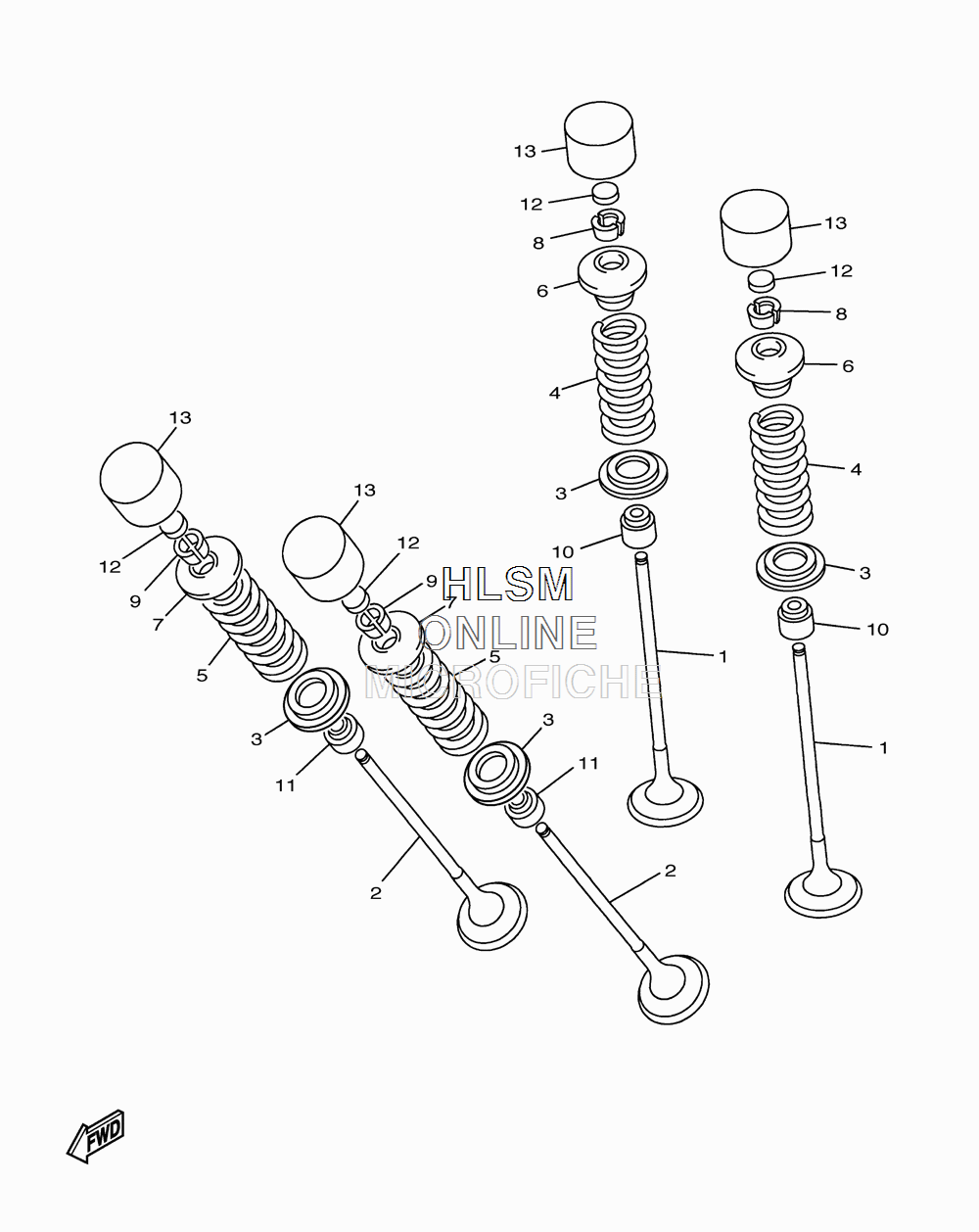

VALVE для Yamaha YZF-R1 (BLUISH WHITE COCKTAIL) - 2012 года выпуска
-
№АртикулНазвание
-
114B-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
214B-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
31KB-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
414B-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
514B-12114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
64C8-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
74C8-12127-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
81AA-12118-00-00 COTTER, VALVECOTTER, VALVE
-
91WG-12118-00-00 COTTER, VALVECOTTER, VALVE
-
103P6-12129-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
114TE-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
123LD-12169-L0-00 PAD, ADJUSTING (2.30) (UR)PAD, ADJUSTING (2.30) (UR)
-
123LD-12168-K1-00 PAD, ADJUSTING (1.60) (UR)PAD, ADJUSTING (1.60) (UR)
-
123LD-12168-M1-00 PAD, ADJUSTING (1.65) (UR)PAD, ADJUSTING (1.65) (UR)
-
123LD-12168-R1-00 PAD, ADJUSTING (1.70) (UR)PAD, ADJUSTING (1.70) (UR)
-
123LD-12168-U1-00 PAD, ADJUSTING (1.75) (UR)PAD, ADJUSTING (1.75) (UR)
-
123LD-12168-W1-00 PAD, ADJUSTING (1.80) (UR)PAD, ADJUSTING (1.80) (UR)
-
123LD-12168-Y1-00 PAD, ADJUSTING (1.85) (UR)PAD, ADJUSTING (1.85) (UR)
-
123LD-12169-11-00 PAD, ADJUSTING (1.90) (UR)PAD, ADJUSTING (1.90) (UR)
-
123LD-12169-31-00 PAD, ADJUSTING (1.95) (UR)PAD, ADJUSTING (1.95) (UR)
-
123LD-12169-N0-00 PAD, ADJUSTING (2.35) (UR)PAD, ADJUSTING (2.35) (UR)
-
123LD-12169-T0-00 PAD, ADJUSTING (2.40) (UR)PAD, ADJUSTING (2.40) (UR)
-
123LD-12169-50-00 PAD, ADJUSTING (2.00) (UR)PAD, ADJUSTING (2.00) (UR)
-
123LD-12169-J0-00 PAD, ADJUSTING (2.25) (UR)PAD, ADJUSTING (2.25) (UR)
-
123LD-12169-G0-00 PAD, ADJUSTING (2.20) (UR)PAD, ADJUSTING (2.20) (UR)
-
123LD-12169-E0-00 PAD, ADJUSTING (2.15) (UR)PAD, ADJUSTING (2.15) (UR)
-
123LD-12169-90-00 PAD, ADJUSTING (2.10) (UR)PAD, ADJUSTING (2.10) (UR)
-
123LD-12169-70-00 PAD, ADJUSTING (2.05) (UR)PAD, ADJUSTING (2.05) (UR)
-
134C8-12153-09-00 LIFTER, VALVE (O/S) (AP GREEN)LIFTER, VALVE (O/S) (AP GREEN)
-
134C8-12153-10-00 LIFTER, VALVE (YELLOW)LIFTER, VALVE (YELLOW)
