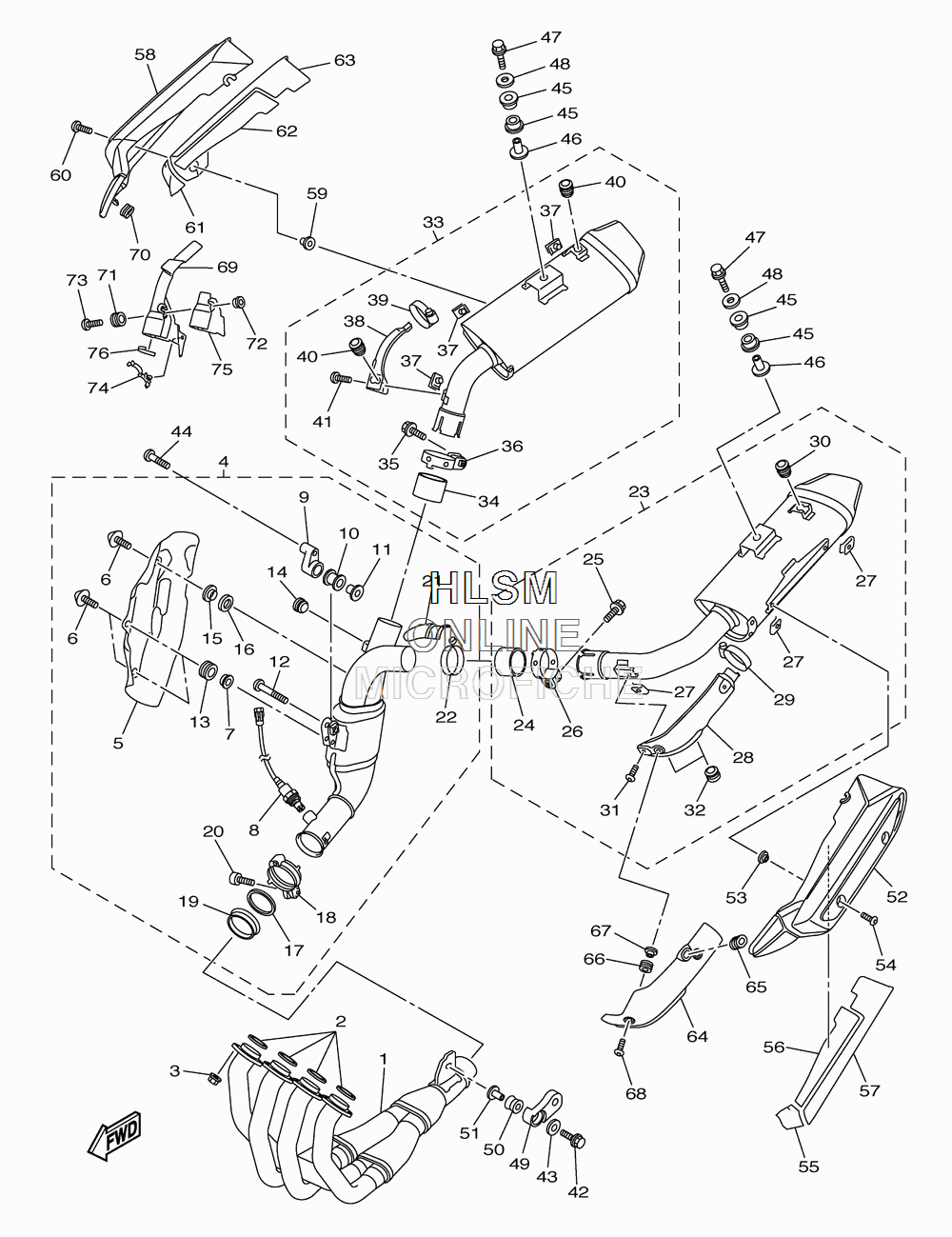

EXHAUST для Yamaha YZF-R1 WORLD GP 50TH ANNIVERSARY EDITION - 2012 года выпуска
-
№АртикулНазвание
-
114B-14602-00-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
24FM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
390179-08410-00 NUTNUT
-
414B-14740-10-00 CATALYST ASSY.CATALYST ASSY.
-
514B-14738-00-00 ...PROTECTOR, MUFFLER 3...PROTECTOR, MUFFLER 3
-
690110-06200-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
790387-06112-00 ...COLLAR...COLLAR
-
814B-8592A-00-00 ...SENSOR, OXYGEN...SENSOR, OXYGEN
-
914B-21445-00-00 ...STAY, MUFFLER 1...STAY, MUFFLER 1
-
104XV-27424-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
1190387-08005-00 ...COLLAR...COLLAR
-
1292014-08035-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
1390480-12579-00 ...GROMMET...GROMMET
-
142D1-14737-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
1590387-06217-00 ...COLLAR...COLLAR
-
1690201-08080-00 ...WASHER, PLATE...WASHER, PLATE
-
1714B-14623-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
1814B-14725-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
1914B-14618-00-00 ...RING, STOPPER...RING, STOPPER
-
2090110-06343-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
2114B-1465U-00-00 ...PLATE, PROTECTOR 3...PLATE, PROTECTOR 3
-
2290450-45001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
2314B-14710-40-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
245VY-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
2595814-08035-00 ...BOLT, FLANGE...BOLT, FLANGE
-
263D8-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
2790183-060A2-00 ...NUT, SPRING...NUT, SPRING
-
2814B-1465R-00-00 ...PLATE, PROTECTOR...PLATE, PROTECTOR
-
2990450-45001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
303D7-14737-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
3192012-06010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
324FM-24181-00-00 ...DAMPER, LOCATING 1...DAMPER, LOCATING 1
-
3314B-14720-40-00 MUFFLER ASSY 2MUFFLER ASSY 2
-
345VY-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
3595814-08035-00 ...BOLT, FLANGE...BOLT, FLANGE
-
363D8-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
3790183-060A2-00 ...NUT, SPRING...NUT, SPRING
-
3814B-1465T-00-00 ...PLATE, PROTECTOR...PLATE, PROTECTOR
-
3990450-45001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
403D7-14737-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
4192012-06010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
4295812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4390201-087G2-00 WASHER, PLATEWASHER, PLATE
-
4490111-08071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4514B-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
4690387-08039-00 COLLARCOLLAR
-
4795812-08045-00 BOLT, FLANGEBOLT, FLANGE
-
4890201-08082-00 WASHER, PLATEWASHER, PLATE
-
4914B-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
505VY-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
5190387-08021-00 COLLARCOLLAR
-
521KB-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
5390387-06170-00 COLLARCOLLAR
-
5490111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
551KB-27498-00-00 SEAT 1SEAT 1
-
561KB-27499-00-00 SEAT 2SEAT 2
-
571KB-2749A-00-00 SEAT 3SEAT 3
-
581KB-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
5990387-06170-00 COLLARCOLLAR
-
6090111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
611KB-2749B-00-00 SEAT 4SEAT 4
-
621KB-2749C-00-00 SEAT 5SEAT 5
-
631KB-2749D-00-00 SEAT 6SEAT 6
-
6414B-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
6590480-01558-00 GROMMETGROMMET
-
6690480-12581-00 GROMMETGROMMET
-
6790387-087L0-00 COLLARCOLLAR
-
6890111-06095-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6914B-2163F-00-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
-
7090480-01558-00 GROMMETGROMMET
-
7190480-12581-00 GROMMETGROMMET
-
7290387-087L0-00 COLLARCOLLAR
-
7390111-06095-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7490464-16006-00 CLAMPCLAMP
-
7514B-1478P-00-00 SEATSEAT
-
7614B-1479P-00-00 SEAT 5SEAT 5
