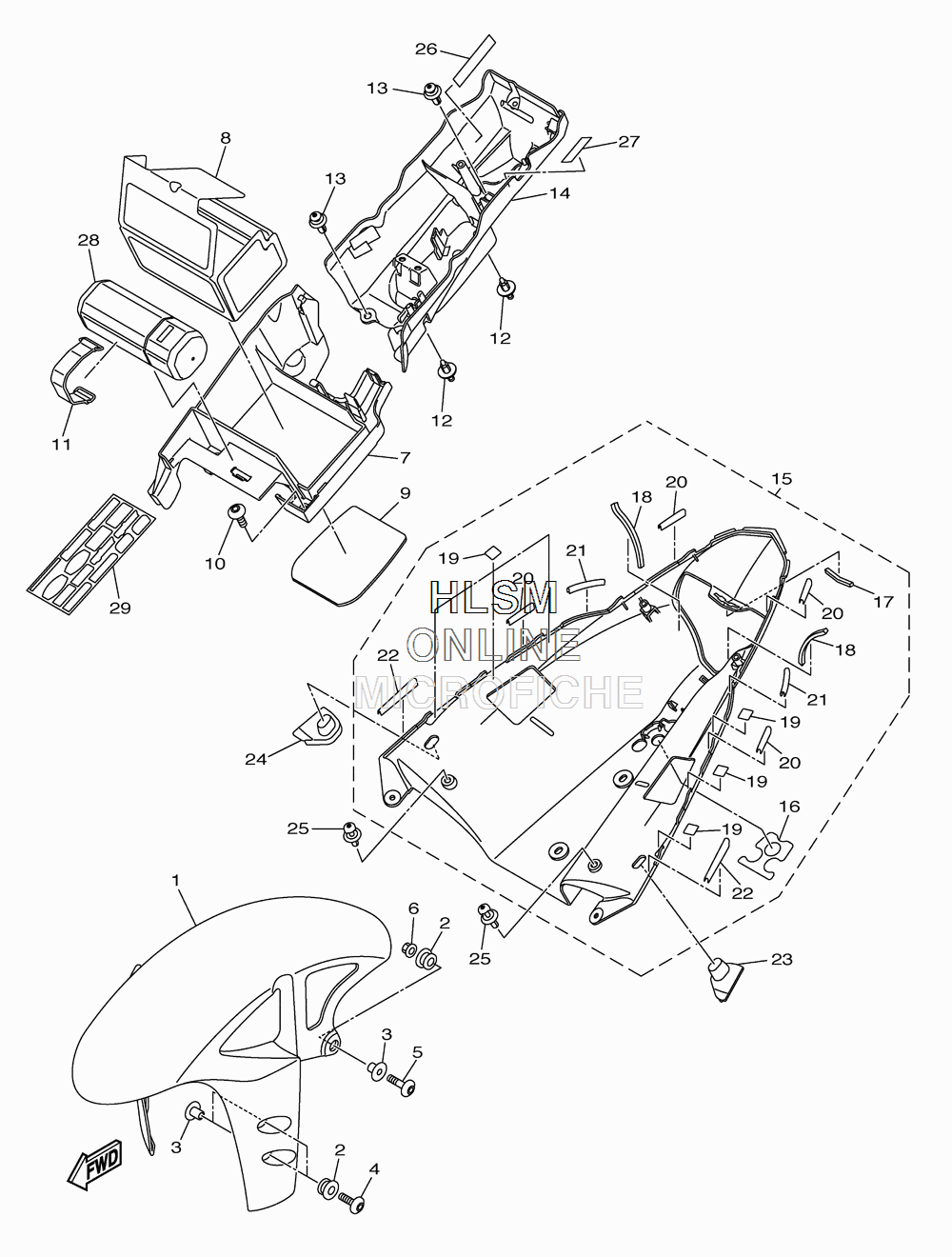

FENDER - FRONT / REAR для Yamaha YZF-R1 WORLD GP 50TH ANNIVERSARY EDITION - 2012 года выпуска
-
№АртикулНазвание
-
114B-21511-00-P6 FENDER, FRONT (VIVID RED COCKTAIL 1)FENDER, FRONT (VIVID RED COCKTAIL 1)
-
290480-12072-00 GROMMETGROMMET
-
390387-065J6-00 COLLARCOLLAR
-
490111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
590111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
695702-06500-00 NUT, FLANGENUT, FLANGE
-
714B-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
81KB-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
914B-82176-20-00 DAMPERDAMPER
-
1090149-06302-00 SCREWSCREW
-
115JJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1290269-07077-00 RIVETRIVET
-
1390269-07012-00 RIVETRIVET
-
1414B-8212C-00-00 BOX, BATTERY 2BOX, BATTERY 2
-
1514B-21600-00-P5 REAR FENDER ASSY. (USE FOR MAT BLACK 2)REAR FENDER ASSY. (USE FOR MAT BLACK 2)
-
1614B-21669-00-00 ...SEAL...SEAL
-
174GY-2174X-00-00 ...DAMPER...DAMPER
-
183CV-28372-00-00 ...DAMPER...DAMPER
-
194C8-21735-00-00 ...SEAL 2...SEAL 2
-
205VY-21732-00-00 ...SEAL 1...SEAL 1
-
215PW-21732-00-00 ...SEAL 1...SEAL 1
-
2214B-21732-00-00 ...SEAL 1...SEAL 1
-
2314B-21639-00-00 DAMPER 2DAMPER 2
-
2414B-21649-00-00 DAMPERDAMPER
-
2590269-07076-00 RIVETRIVET
-
263JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
274BR-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
2814B-28100-00-00 TOOL KITTOOL KIT
-
291KB-22180-00-00 EMBLEMEMBLEM
