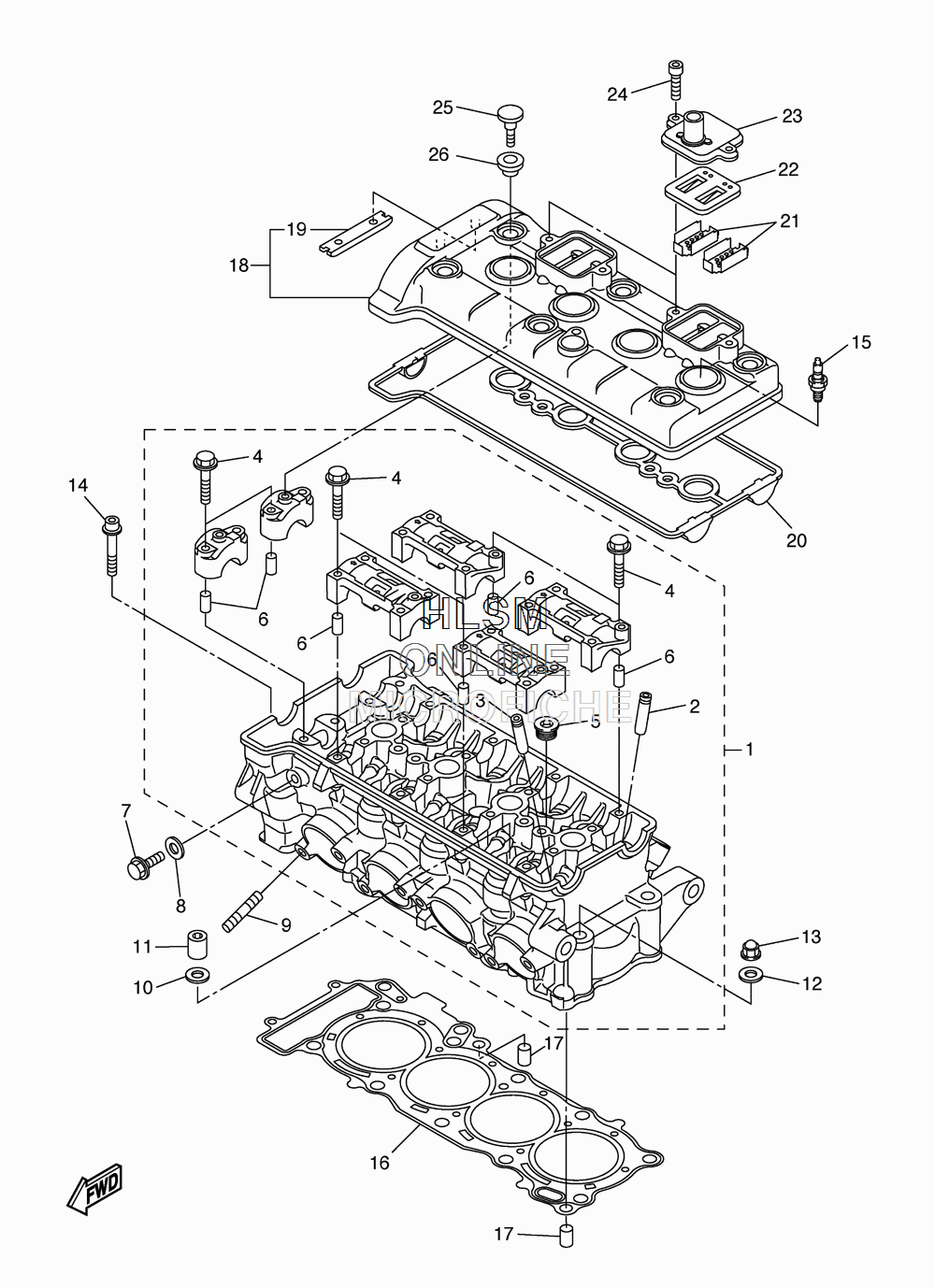

CYLINDER для Yamaha YZF-R6 - 2012 года выпуска
-
№АртикулНазвание
-
12C0-11101-01-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
22C0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
32C0-11134-11-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
490105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590340-18002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
795022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
890430-08119-00 GASKETGASKET
-
995612-08625-00 BOLT, STUDBOLT, STUD
-
1090201-10013-00 WASHER, PLATEWASHER, PLATE
-
1190179-10006-00 NUTNUT
-
1290201-10013-00 WASHER, PLATEWASHER, PLATE
-
1390176-10075-00 NUT, CROWNNUT, CROWN
-
1490110-06094-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1594701-00402-00 PLUG, SPARK (NGK CR10EK)PLUG, SPARK (NGK CR10EK)
-
162C0-11181-01-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1799530-10114-00 PIN, DOWELPIN, DOWEL
-
182C0-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
195BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
202C0-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
215VY-1482K-00-00 PLATEPLATE
-
225SL-14890-00-00 REED VALVE ASSYREED VALVE ASSY
-
235VY-14899-01-00 CAP, CASECAP, CASE
-
2490110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590109-066F0-00 BOLTBOLT
-
265VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
