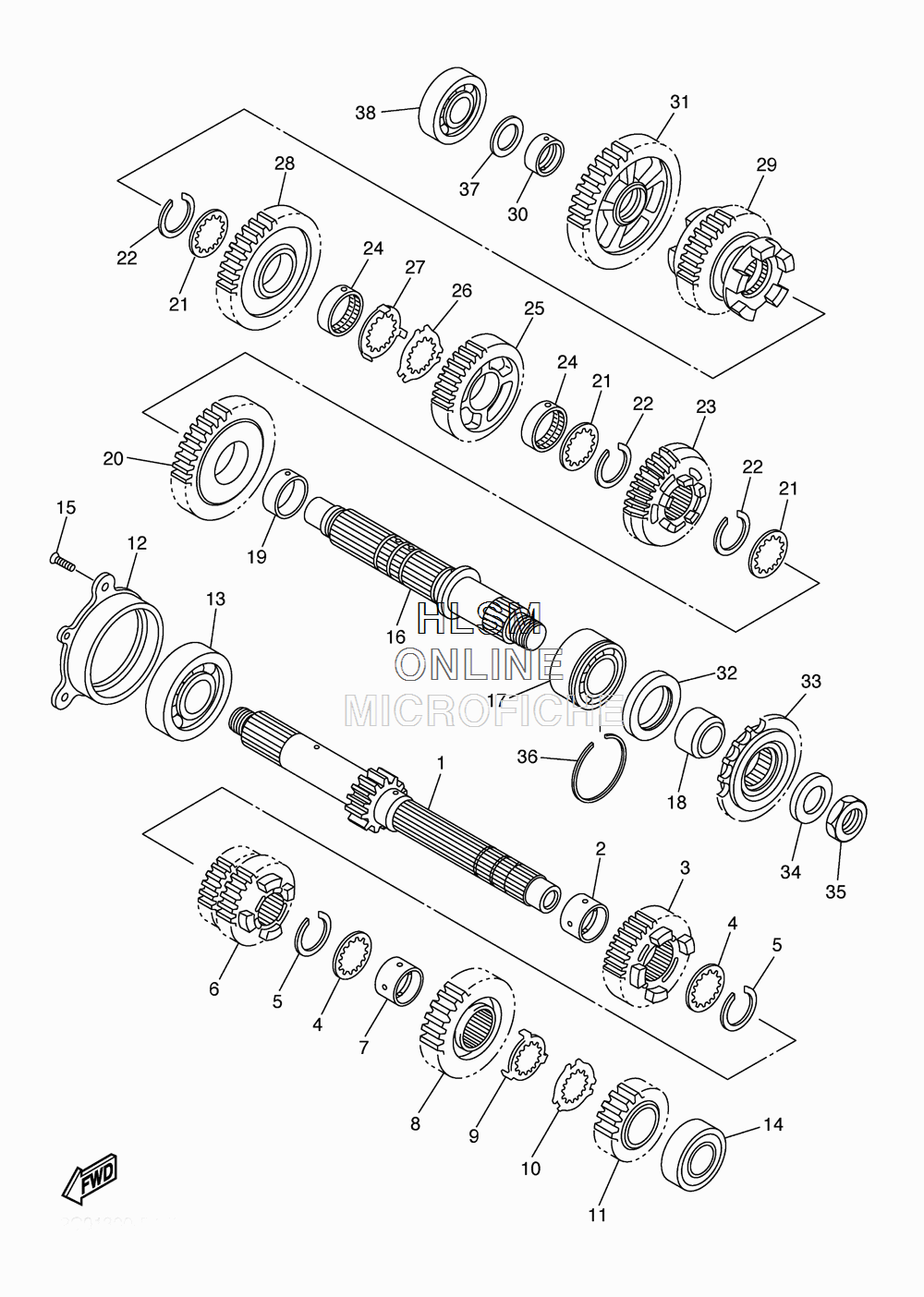

TRANSMISSION для Yamaha YZF-R6 - 2012 года выпуска
-
№АртикулНазвание
-
12C0-17411-00-00 AXLE, MAIN (12T)AXLE, MAIN (12T)
-
290387-250R3-00 COLLARCOLLAR
-
313S-17151-00-00 GEAR, 5TH PINION (21T)GEAR, 5TH PINION (21T)
-
490209-21332-00 WASHERWASHER
-
593440-25186-00 CIRCLIPCIRCLIP
-
613S-17131-00-00 GEAR, 3RD PINION (18T/18T)GEAR, 3RD PINION (18T/18T)
-
790387-21003-00 COLLARCOLLAR
-
813S-17161-10-00 GEAR, 6TH PINION (20T)GEAR, 6TH PINION (20T)
-
990209-22352-00 WASHERWASHER
-
1090209-21351-00 WASHERWASHER
-
1113S-17121-10-00 GEAR, 2ND PINION (16T)GEAR, 2ND PINION (16T)
-
122C0-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
1393306-20562-00 BEARINGBEARING
-
1493306-20464-00 BEARINGBEARING
-
1590151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
1613S-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
1793305-20509-00 BEARINGBEARING
-
1890387-25016-00 COLLARCOLLAR
-
1990387-28011-00 COLLARCOLLAR
-
2013S-17221-00-00 GEAR, 2ND WHEEL (32T)GEAR, 2ND WHEEL (32T)
-
2190209-25011-00 WASHERWASHER
-
2293440-28184-00 CIRCLIPCIRCLIP
-
232C0-17261-00-00 GEAR, 6TH WHEEL (23T)GEAR, 6TH WHEEL (23T)
-
2490387-25015-00 COLLARCOLLAR
-
252C0-17241-00-00 GEAR, 4TH WHEEL (26T)GEAR, 4TH WHEEL (26T)
-
2690214-25004-00 WASHER, CLAWWASHER, CLAW
-
2790214-25003-00 WASHER, CLAWWASHER, CLAW
-
282C0-17231-00-00 GEAR, 3RD WHEEL (30T)GEAR, 3RD WHEEL (30T)
-
2913S-17251-00-00 GEAR, 5TH WHEEL (27T)GEAR, 5TH WHEEL (27T)
-
3090387-21004-00 COLLARCOLLAR
-
312C0-17211-00-00 GEAR, 1ST WHEEL (31T)GEAR, 1ST WHEEL (31T)
-
3293102-35017-00 OIL SEALOIL SEAL
-
332C0-17460-00-00 SPROCKET,DRIVE (16T)SPROCKET,DRIVE (16T)
-
3490201-20023-00 WASHER, PLATEWASHER, PLATE
-
3590179-20011-00 NUTNUT
-
3693440-52014-00 CIRCLIPCIRCLIP
-
3790201-20278-00 WASHER, PLATEWASHER, PLATE
-
3893306-20464-00 BEARINGBEARING
