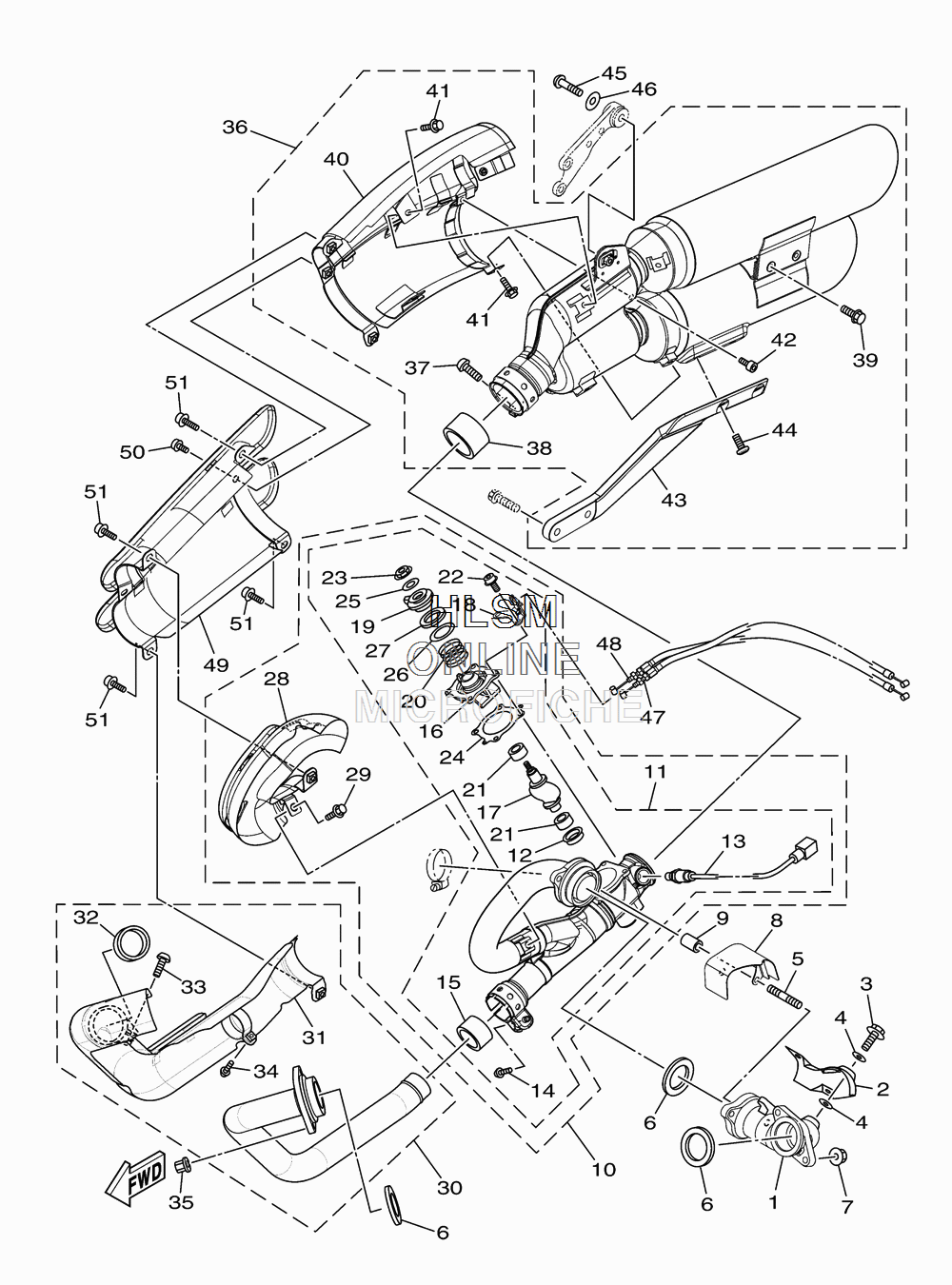

EXHAUST для Yamaha RAIDER SCL - 2013 года выпуска
-
№АртикулНазвание
-
11D7-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
21D7-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
395880-06012-00 BOLT, FLANGEBOLT, FLANGE
-
490201-05015-00 WASHER, PLATEWASHER, PLATE
-
595617-08630-00 BOLT, STUDBOLT, STUD
-
63EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
790185-08097-00 NUT,SELF-LOCKINGNUT,SELF-LOCKING
-
81D7-14624-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
990179-08022-00 NUTNUT
-
105C7-14610-01-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
115C7-14611-01-00 ..PIPE, EXHAUST 1..PIPE, EXHAUST 1
-
125VY-14816-00-00 ......PLUG, BLIND......PLUG, BLIND
-
135C7-8592A-00-00 ......SENSOR, OXYGEN......SENSOR, OXYGEN
-
1492014-08035-00 ......BOLT, BUTTON HEAD......BOLT, BUTTON HEAD
-
155PX-14755-00-00 ......GASKET, SILENCER......GASKET, SILENCER
-
161D7-14811-01-00 ......HOUSING......HOUSING
-
171D7-14821-00-00 ......ARM, SHAFT (VALVE)......ARM, SHAFT (VALVE)
-
181D7-14849-00-00 ......BRACKET......BRACKET
-
191D7-14865-01-00 ......PULLEY......PULLEY
-
201D7-14856-00-00 ......SPRING......SPRING
-
215VY-14638-00-00 ......COLLAR......COLLAR
-
2290110-06025-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
2390179-06063-00 ......NUT......NUT
-
241D7-14643-00-00 ......GASKET 3......GASKET 3
-
2592990-06200-00 ......WASHER, PLAIN......WASHER, PLAIN
-
265VY-14674-00-00 ......VALVE, PLATE......VALVE, PLATE
-
275VY-14648-00-00 ......COLLAR 2......COLLAR 2
-
285C7-14718-00-00 ...PROTECTOR, MUFFLER 1...PROTECTOR, MUFFLER 1
-
2995024-06010-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
305C7-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
315C7-14728-00-00 ...PROTECTOR, MUFFLER 2...PROTECTOR, MUFFLER 2
-
325C7-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
3395024-08020-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
3492014-06016-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
3590179-08410-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
365C7-14710-20-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
3792014-08035-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
385YU-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
3995024-08020-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
405C7-14738-00-00 ...PROTECTOR, MUFFLER 3...PROTECTOR, MUFFLER 3
-
4195024-06010-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
4291314-06010-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
435C7-14772-00-00 ...STAY, MUFFLER 2...STAY, MUFFLER 2
-
4490111-08029-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
4590110-08221-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4690201-087G2-00 WASHER, PLATEWASHER, PLATE
-
475C7-1133E-00-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
485C7-1133F-00-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
495C7-14627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
5090110-06288-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5190110-06301-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
