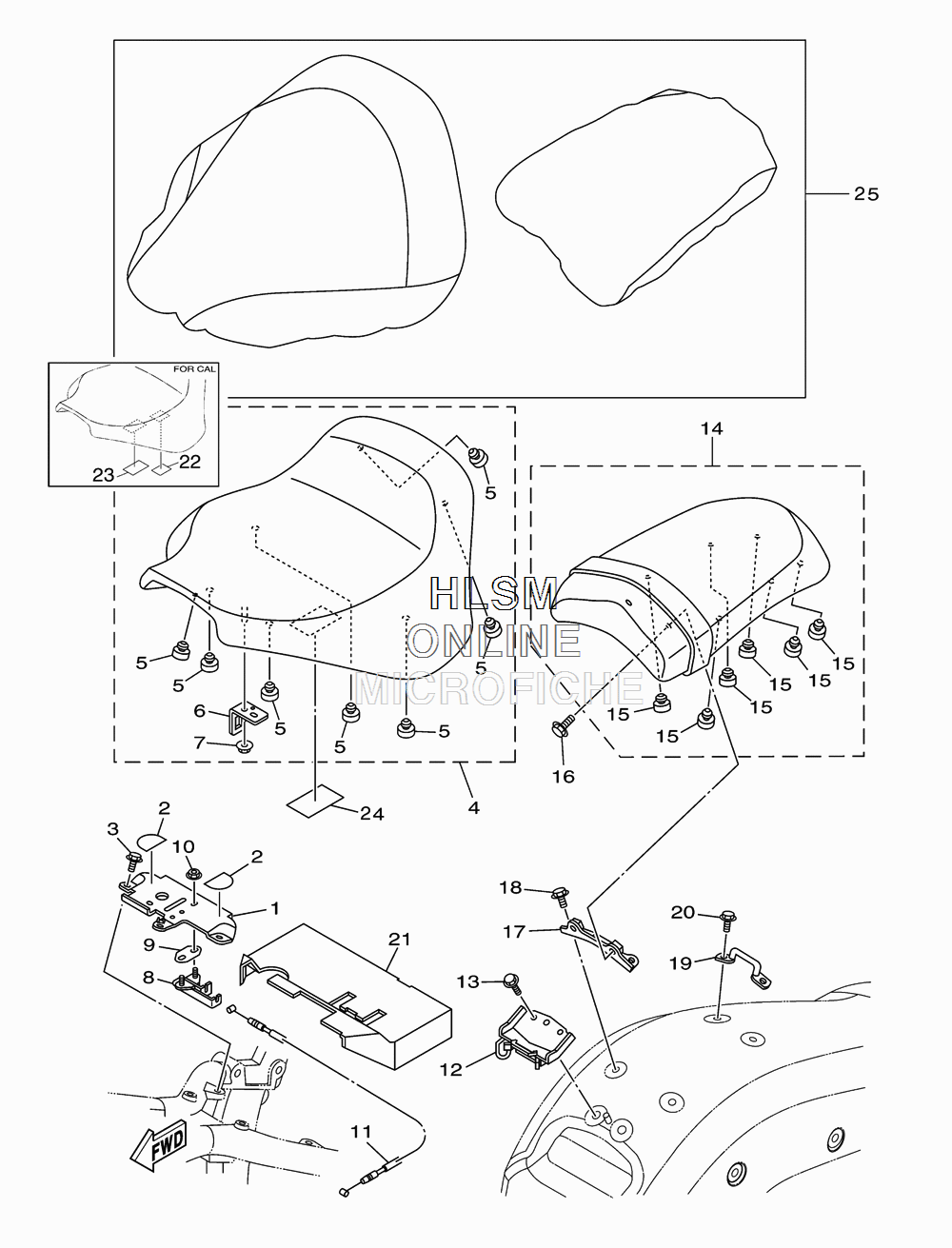

SEAT для Yamaha RAIDER SCL - 2013 года выпуска
-
№АртикулНазвание
-
15C7-21341-00-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
25PX-21735-00-00 SEAL 2SEAL 2
-
390105-08485-00 BOLT, FLANGEBOLT, FLANGE
-
41US-F4710-V0-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
522W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
64NK-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
795702-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
84BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
94BP-24792-00-00 PLATEPLATE
-
1095702-06500-00 NUT, FLANGENUT, FLANGE
-
115PX-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
125C7-2475N-00-00 BRACKETBRACKET
-
1395022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
141US-F4750-V0-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
1522W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
1695022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
175C7-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
1895022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
191D7-2475R-00-00 BRACKET 6BRACKET 6
-
2095022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
215C7-24796-00-00 COVERCOVER
-
2234B-21684-00-00 PLATE, ROUTING (CALIF. ONLY)PLATE, ROUTING (CALIF. ONLY)
-
235RU-21686-00-00 PLATE, ROUTING 2 (CALIF. ONLY)PLATE, ROUTING 2 (CALIF. ONLY)
-
241D7-21668-00-00 LABEL, TIRELABEL, TIRE
-
251US-F47B0-V0-00 RAIN COVER KITRAIN COVER KIT
