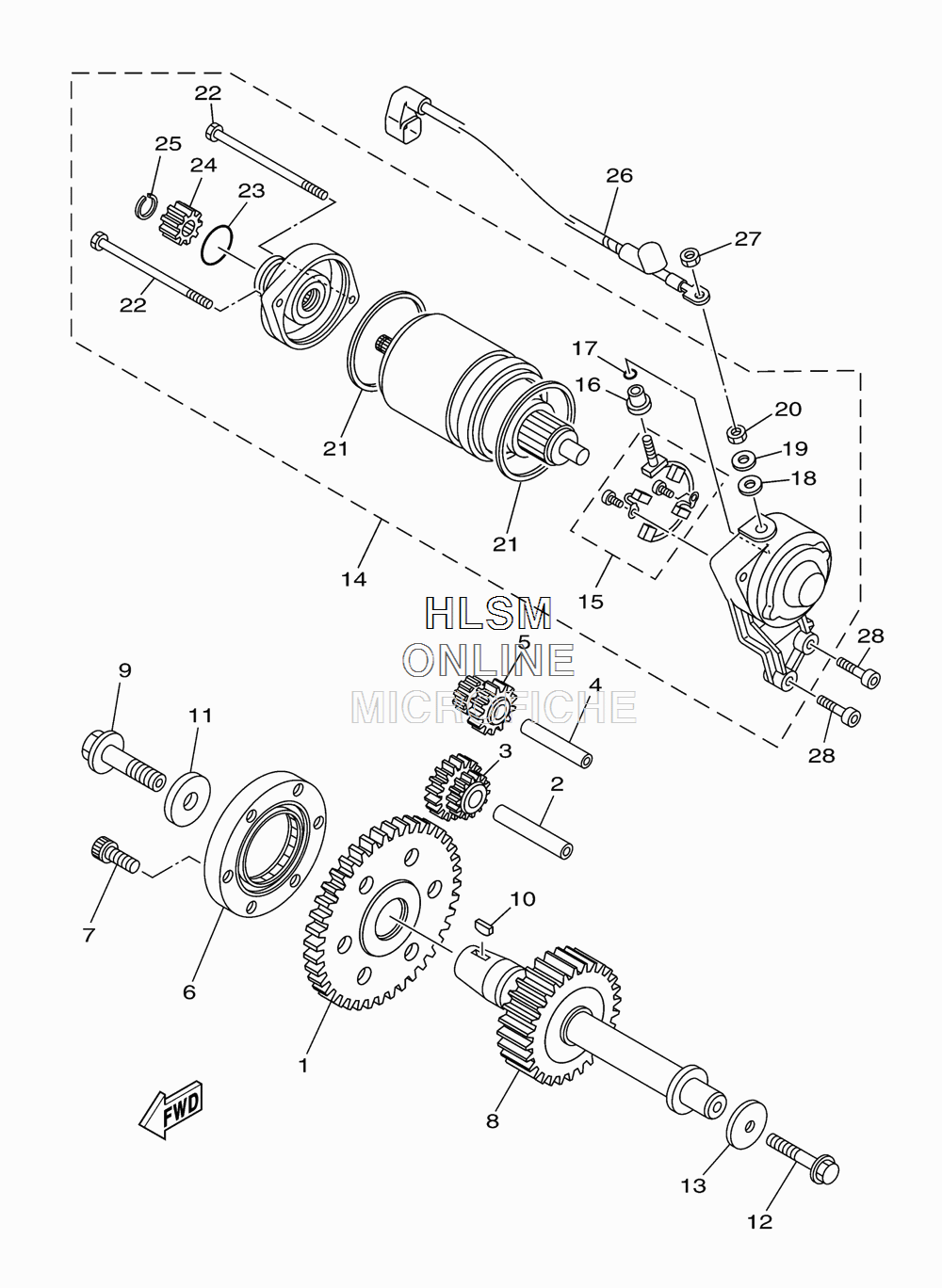

STARTER для Yamaha ROAD STAR SILVERADO S - 2013 года выпуска
-
№АртикулНазвание
-
14WM-15515-00-00 GEAR 3GEAR 3
-
24WM-15522-00-00 SHAFT 2SHAFT 2
-
34WM-15517-00-00 GEAR, IDLER 2GEAR, IDLER 2
-
44WM-15521-00-00 SHAFT 1SHAFT 1
-
54WM-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
64WM-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
790110-08015-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
85VN-15659-00-00 SHAFTSHAFT
-
990105-12005-00 BOLT, FLANGEBOLT, FLANGE
-
1090280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
1190201-12008-00 WASHER, PLATEWASHER, PLATE
-
1295817-08045-00 BOLT, FLANGEBOLT, FLANGE
-
134WM-15653-00-00 WASHERWASHER
-
145VN-81890-00-00 MOTOR ASSYMOTOR ASSY
-
151D7-81801-00-00 ...BRUSH SET...BRUSH SET
-
165PX-8182G-00-00 ...BUSH, TERMINAL...BUSH, TERMINAL
-
1793210-06001-00 ...O-RING...O-RING
-
185PX-8181L-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
191D7-81835-00-00 ...WASHER...WASHER
-
2095302-06700-00 ...NUT...NUT
-
215PX-81861-00-00 ...GASKET...GASKET
-
225VN-81846-00-00 ...SCREW...SCREW
-
2393210-25711-00 ...O-RING...O-RING
-
245PX-15511-00-00 ...GEAR, STARTING MOTOR...GEAR, STARTING MOTOR
-
2599009-10800-00 ...CIRCLIP...CIRCLIP
-
265VN-8183G-00-00 CORD COMP.CORD COMP.
-
2795302-06700-00 NUTNUT
-
2891314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
