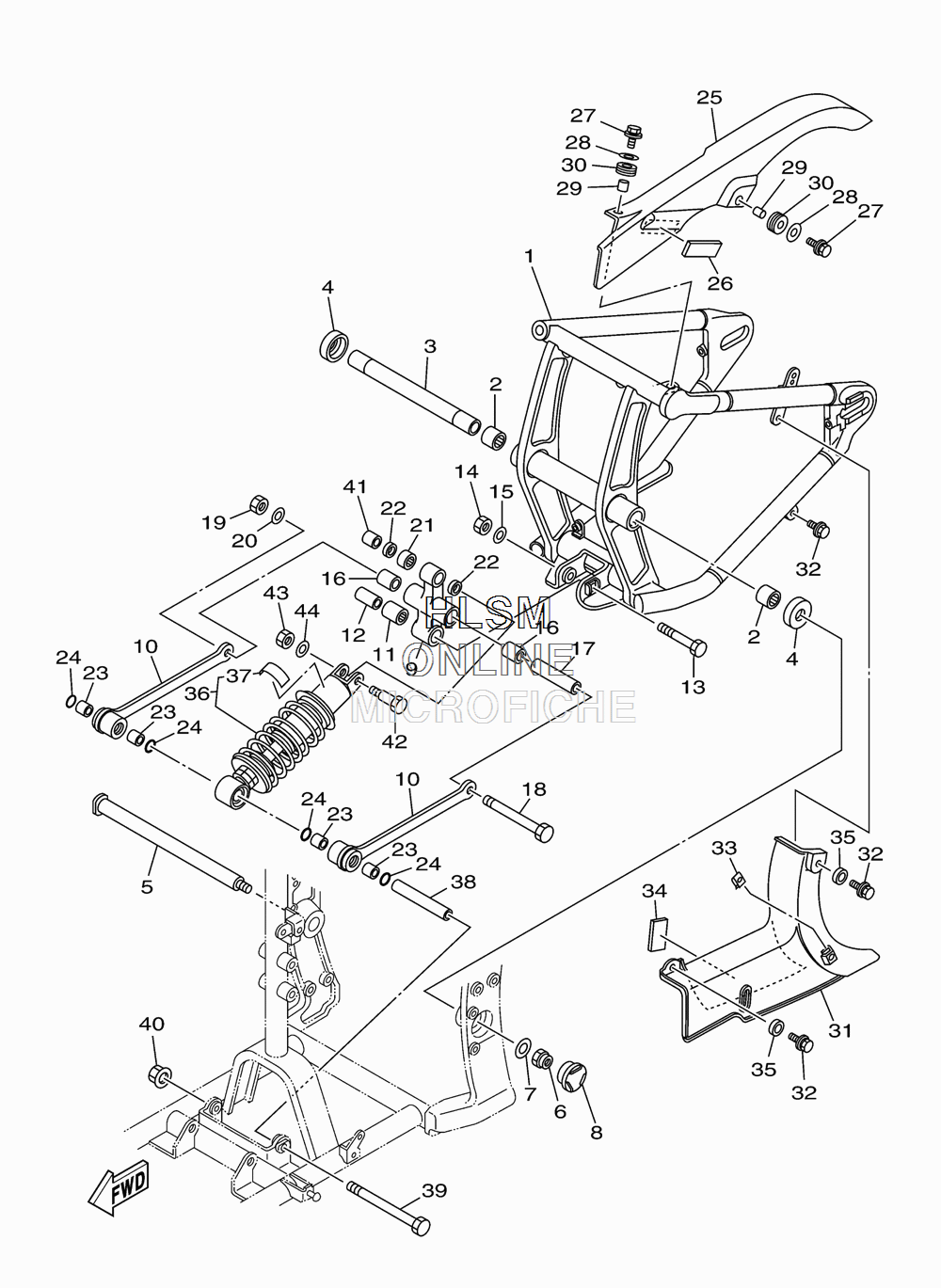

SUSPENSION - REAR ARM для Yamaha ROAD STAR SILVERADO S - 2013 года выпуска
-
№АртикулНазвание
-
15VN-22110-01-00 REAR ARM COMP.REAR ARM COMP.
-
293317-42550-00 BEARING, CYL.#17BEARING, CYL.#17
-
34WM-22184-00-00 BUSHBUSH
-
45JJ-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
53GM-25381-10-00 AXLE, WHEELAXLE, WHEEL
-
690185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790201-18020-00 WASHER, PLATEWASHER, PLATE
-
84KM-2219X-00-00 COVERCOVER
-
94WM-2217A-00-00 ARM, RELAYARM, RELAY
-
104WM-2217M-10-00 ARM 1ARM 1
-
1193317-42060-00 BEARING, CYL.#17BEARING, CYL.#17
-
1290387-122J6-00 COLLARCOLLAR
-
1390101-12002-00 BOLTBOLT
-
1495612-12100-00 NUT, UNUT, U
-
1590201-12049-00 WASHER, PLATEWASHER, PLATE
-
1693317-41761-00 BEARING, CYL.#17BEARING, CYL.#17
-
1790387-126T1-00 COLLARCOLLAR
-
1890101-12027-00 BOLTBOLT
-
1995612-12100-00 NUT, UNUT, U
-
2090201-12045-00 WASHER, PLATEWASHER, PLATE
-
2193317-31771-00 BEARINGBEARING
-
2293109-17071-00 OIL SEALOIL SEAL
-
2390384-18157-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
2493210-18397-00 O-RINGO-RING
-
255JA-22311-00-00 CASE, CHAINCASE, CHAIN
-
265VN-22332-00-00 DAMPER, CHAIN CASEDAMPER, CHAIN CASE
-
2795024-06020-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
2890201-06070-00 WASHER, PLATEWASHER, PLATE
-
2990387-064T3-00 COLLARCOLLAR
-
3090480-14026-00 GROMMETGROMMET
-
315VN-22312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
3290119-06001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3390183-06053-00 NUT, SPRINGNUT, SPRING
-
3422F-2139X-00-00 DAMPERDAMPER
-
3590387-06069-00 COLLARCOLLAR
-
365GA-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
374AA-22259-80-00 ...LABEL, WARNING...LABEL, WARNING
-
3890387-1214E-00 COLLARCOLLAR
-
3990101-12032-00 BOLTBOLT
-
4095602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190387-127W0-00 COLLARCOLLAR
-
4290101-10659-00 BOLTBOLT
-
4395612-10100-00 NUT, UNUT, U
-
4490201-10035-00 WASHER, PLATEWASHER, PLATE
