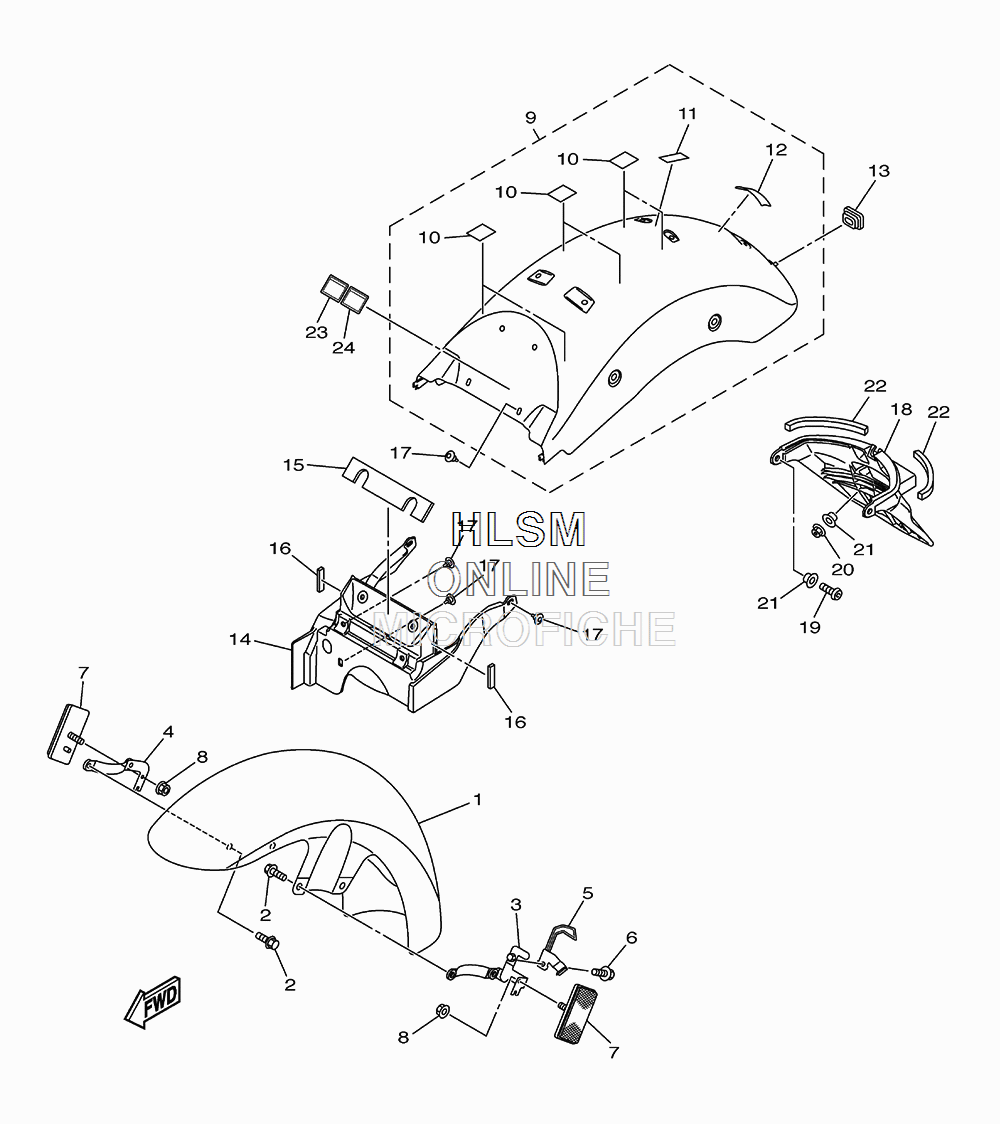

FENDER - FRONT / REAR для Yamaha V STAR 950 TOURER - 2013 года выпуска
-
№АртикулНазвание
-
15S7-21510-01-P0 FRONT FENDER COMP. (SMX - BLACK METALLIC)FRONT FENDER COMP. (SMX - BLACK METALLIC)
-
15S7-21510-01-P1 FRONT FENDER COMP. (DRMK - DEEP RED)FRONT FENDER COMP. (DRMK - DEEP RED)
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
35S7-21587-00-00 STAY 1STAY 1
-
45S7-21588-00-00 STAY 2STAY 2
-
53D8-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
695027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
895707-05500-00 NUT, FLANGE 3GM (BLACK)NUT, FLANGE 3GM (BLACK)
-
95S7-W2161-01-P0 REAR FENDER COMP. (SMX - BLACK METALLIC)REAR FENDER COMP. (SMX - BLACK METALLIC)
-
95S7-W2161-01-P1 REAR FENDER COMP. (DRMK - DEEP RED)REAR FENDER COMP. (DRMK - DEEP RED)
-
105PX-21669-01-00 ...SEAL...SEAL
-
115S7-21669-00-00 ...SEAL...SEAL
-
121D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
1390480-13027-00 GROMMETGROMMET
-
145S7-21629-00-P0 GUARD, MUD (SMX - BLACK METALLIC)GUARD, MUD (SMX - BLACK METALLIC)
-
145S7-21629-00-P1 GUARD, MUD (DRMK - DEEP RED)GUARD, MUD (DRMK - DEEP RED)
-
155S7-21638-00-00 DAMPER 1DAMPER 1
-
165S7-21639-00-00 DAMPER 2DAMPER 2
-
1790269-07077-00 RIVETRIVET
-
185S7-2162R-00-00 FENDER 2FENDER 2
-
1992012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2095602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190387-07717-00 COLLARCOLLAR
-
224DN-21669-00-00 SEALSEAL
-
235RU-21686-00-00 PLATE, ROUTING 2 (CALIF. ONLY)PLATE, ROUTING 2 (CALIF. ONLY)
-
2434B-21684-00-00 PLATE, ROUTING (CAILF. ONLY)PLATE, ROUTING (CAILF. ONLY)
