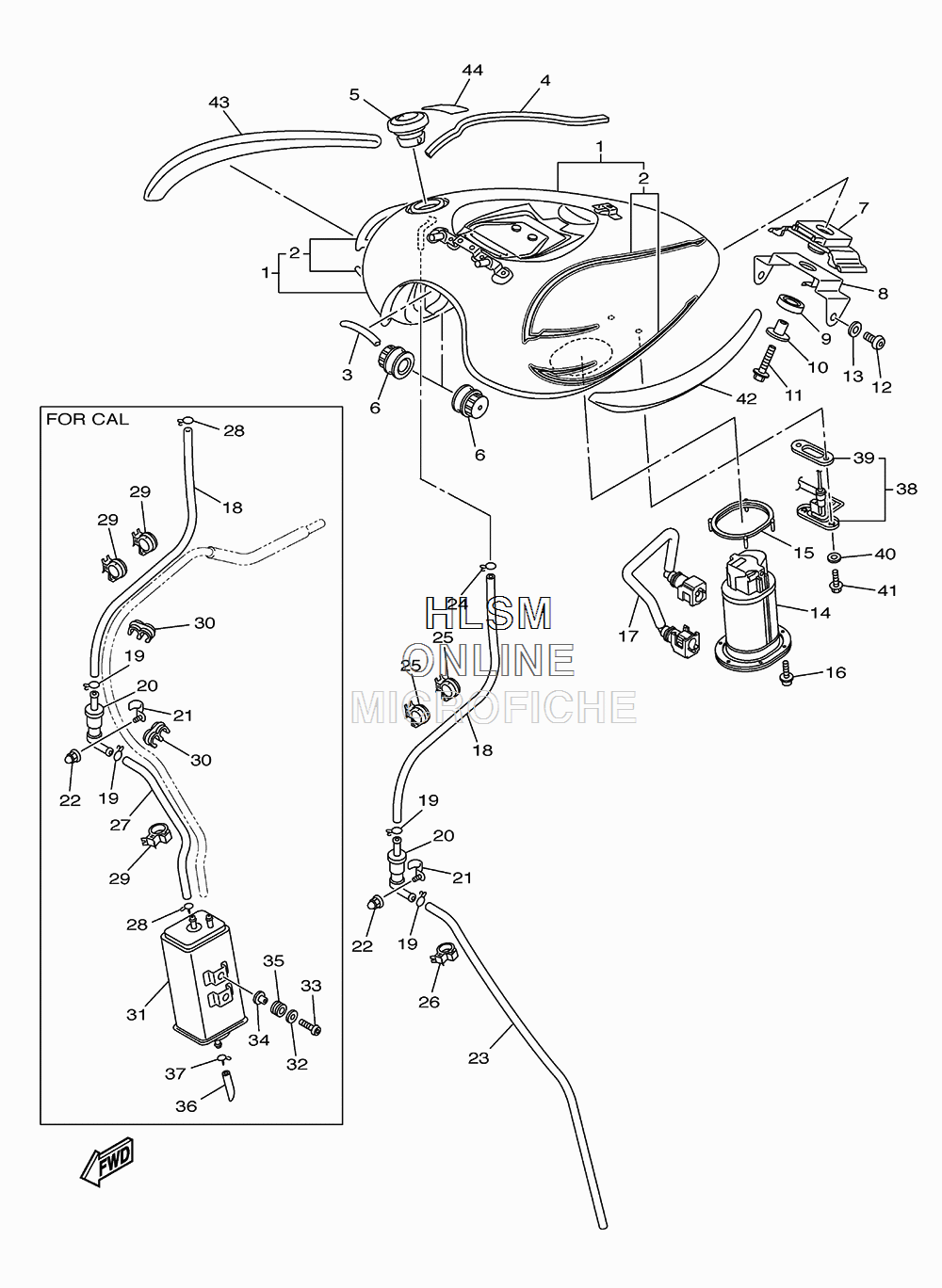

FUEL TANK для Yamaha V STAR 950 TOURER - 2013 года выпуска
-
№АртикулНазвание
-
15S7-Y2410-00-X8 FUEL TANK COMP. (SMX - BLACK METALLIC)FUEL TANK COMP. (SMX - BLACK METALLIC)
-
15S7-Y2410-00-X9 FUEL TANK COMP. (DRMK - DEEP RED)FUEL TANK COMP. (DRMK - DEEP RED)
-
226S-24240-70-00 ...GRAPHIC SET (FOR DRMK - DEEP RED)...GRAPHIC SET (FOR DRMK - DEEP RED)
-
226S-24240-60-00 ...GRAPHIC SET (FOR SMX - BLACK METALLIC)...GRAPHIC SET (FOR SMX - BLACK METALLIC)
-
34BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
45S7-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
54NK-24602-20-00 CAP ASSYCAP ASSY
-
65S7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
75S7-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
85S7-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
94TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1090387-06177-00 COLLARCOLLAR
-
1195812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1292012-08014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1390201-08M01-00 WASHER, PLATEWASHER, PLATE
-
145S7-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
155VN-24486-00-00 O-RINGO-RING
-
1690110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
175S7-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
185S7-24313-00-00 PIPE 3PIPE 3
-
1990467-09103-00 CLIPCLIP
-
205RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
215S7-24136-00-00 CLAMP 2CLAMP 2
-
2290176-05004-00 NUT, CROWNNUT, CROWN
-
2390445-115K4-00 HOSE (L450)HOSE (L450)
-
2490467-09103-00 CLIPCLIP
-
2590464-20191-00 CLAMPCLAMP
-
2690464-10190-00 CLAMPCLAMP
-
275S7-2486A-00-00 PIPE 1 (CALIF. ONLY)PIPE 1 (CALIF. ONLY)
-
2890467-09103-00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
2990464-20191-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
3090464-10M57-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
315PX-24170-00-00 CANISTER ASSY (CALIF. ONLY)CANISTER ASSY (CALIF. ONLY)
-
3290201-06023-00 WASHER, PLATE (CALIF. ONLY)WASHER, PLATE (CALIF. ONLY)
-
3390111-06067-00 BOLT, HEX. SOCKET BUTTON (CALIF. ONLY)BOLT, HEX. SOCKET BUTTON (CALIF. ONLY)
-
3490387-062L2-00 COLLAR (CALIF. ONLY)COLLAR (CALIF. ONLY)
-
3590480-13163-00 GROMMET (CALIF. ONLY)GROMMET (CALIF. ONLY)
-
363D8-24325-00-00 PIPE 14 (CALIF. ONLY)PIPE 14 (CALIF. ONLY)
-
3790467-10041-00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
385S7-85752-10-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
393D8-85753-00-00 ...GASKET, SENDER UNIT...GASKET, SENDER UNIT
-
4090202-05193-00 WASHER, PLATEWASHER, PLATE
-
4195812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
425S7-2416C-00-00 EMBLEM 3D SETEMBLEM 3D SET
-
435S7-2417C-00-00 EMBLEM 3D SETEMBLEM 3D SET
-
445GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
