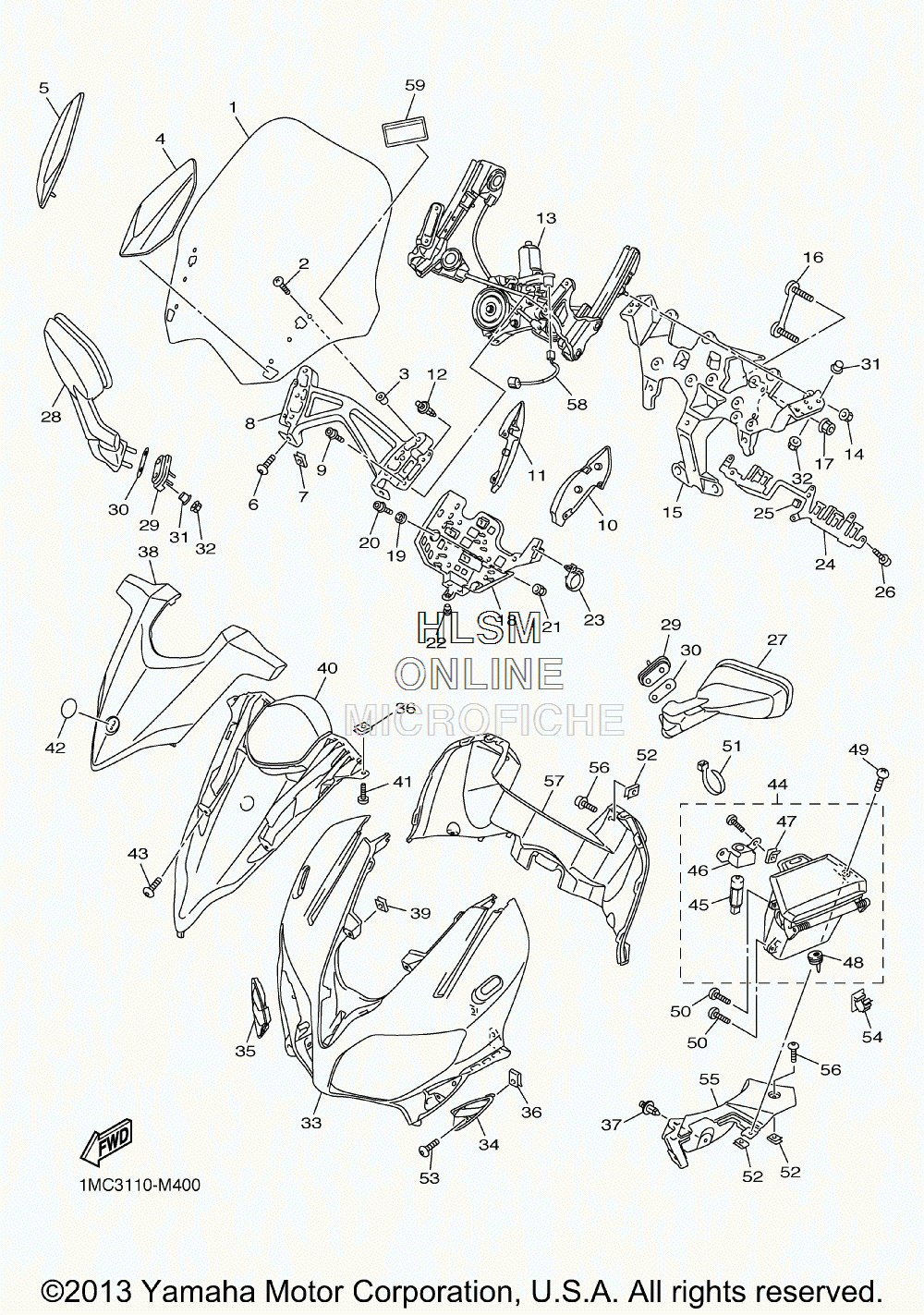

COWLING для Yamaha FJR1300A - 2014 года выпуска
-
№АртикулНазвание
-
11MC-28381-00-00 WINDSHIELDWINDSHIELD
-
290150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
390179-05523-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
41MC-2842A-00-P5 COVER 5 (DRMK)COVER 5 (DRMK)
-
51MC-2843C-00-P5 COVER 6 (DRMK)COVER 6 (DRMK)
-
692012-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
790183-050A7-00 NUT, SPRINGNUT, SPRING
-
81MC-28322-00-00 STAY 2STAY 2
-
990109-060E9-00 BOLTBOLT
-
101MC-2843J-00-00 COVER 3COVER 3
-
111MC-2844J-00-00 COVER 4COVER 4
-
1290269-05005-00 RIVETRIVET
-
131MC-83306-00-00 DRIVE UNIT ASSYDRIVE UNIT ASSY
-
1495702-06500-00 NUT, FLANGENUT, FLANGE
-
151MC-28356-01-00 STAY 1STAY 1
-
165JW-28336-00-00 PLATEPLATE
-
1795707-10500-00 NUT, FLANGENUT, FLANGE
-
181MC-2838K-00-00 BOX 1BOX 1
-
1990387-06106-00 COLLARCOLLAR
-
2090110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2195304-06800-00 NUT, CROWNNUT, CROWN
-
2290338-06018-00 PLUGPLUG
-
2390464-36006-00 CLAMPCLAMP
-
241MC-28366-00-00 BRACKETBRACKET
-
251MC-2834E-00-00 DAMPER 3DAMPER 3
-
2691312-06014-00 BOLTBOLT
-
273P6-26280-10-P4 REAR VIEW MIRROR ASSY (LEFT) (DRMK)REAR VIEW MIRROR ASSY (LEFT) (DRMK)
-
283P6-26290-10-P4 REAR VIEW MIRROR ASSY (RIGHT) (DRMK)REAR VIEW MIRROR ASSY (RIGHT) (DRMK)
-
295JW-26298-00-00 PLATE, MIRROR FITTING 1PLATE, MIRROR FITTING 1
-
303P6-26299-00-00 PLATE, MIRROR FITTING 2PLATE, MIRROR FITTING 2
-
3190387-0602X-00 COLLARCOLLAR
-
3295702-06500-00 NUT, FLANGENUT, FLANGE
-
331MC-2835G-00-P3 BODY, FRONT UPPER 1 (DRMK)BODY, FRONT UPPER 1 (DRMK)
-
341MC-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
351MC-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
3690183-05042-00 NUT, SPRINGNUT, SPRING
-
3790269-06008-00 RIVETRIVET
-
381MC-28351-00-P4 BODY, COWLING (MBL2)BODY, COWLING (MBL2)
-
3990183-05042-00 NUT, SPRINGNUT, SPRING
-
401MC-2838N-00-00 DUCT 1DUCT 1
-
4197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
428GC-2836B-02-00 TUNING FORK MARKTUNING FORK MARK
-
4390167-05080-00 SCREW, TAPPINGSCREW, TAPPING
-
443P6-2830N-00-PC BOX SUB ASSY (MBL2)BOX SUB ASSY (MBL2)
-
455VS-28470-00-00 ...LOCK ASSY...LOCK ASSY
-
465VS-28367-00-00 ...BRACKET...BRACKET
-
4790183-051A0-00 ...NUT, SPRING...NUT, SPRING
-
483P6-28187-00-00 ...GROMMET...GROMMET
-
4990154-05007-00 SCREW, BINDINGSCREW, BINDING
-
5097702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
5190464-16019-00 CLAMPCLAMP
-
5290183-05076-00 NUT, SPRINGNUT, SPRING
-
5390167-05080-00 SCREW, TAPPINGSCREW, TAPPING
-
5490464-54086-00 CLAMPCLAMP
-
551MC-28365-00-00 COVERCOVER
-
5690111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
571MC-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
581MC-82507-00-00 WIRE, LEADWIRE, LEAD
-
594B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
