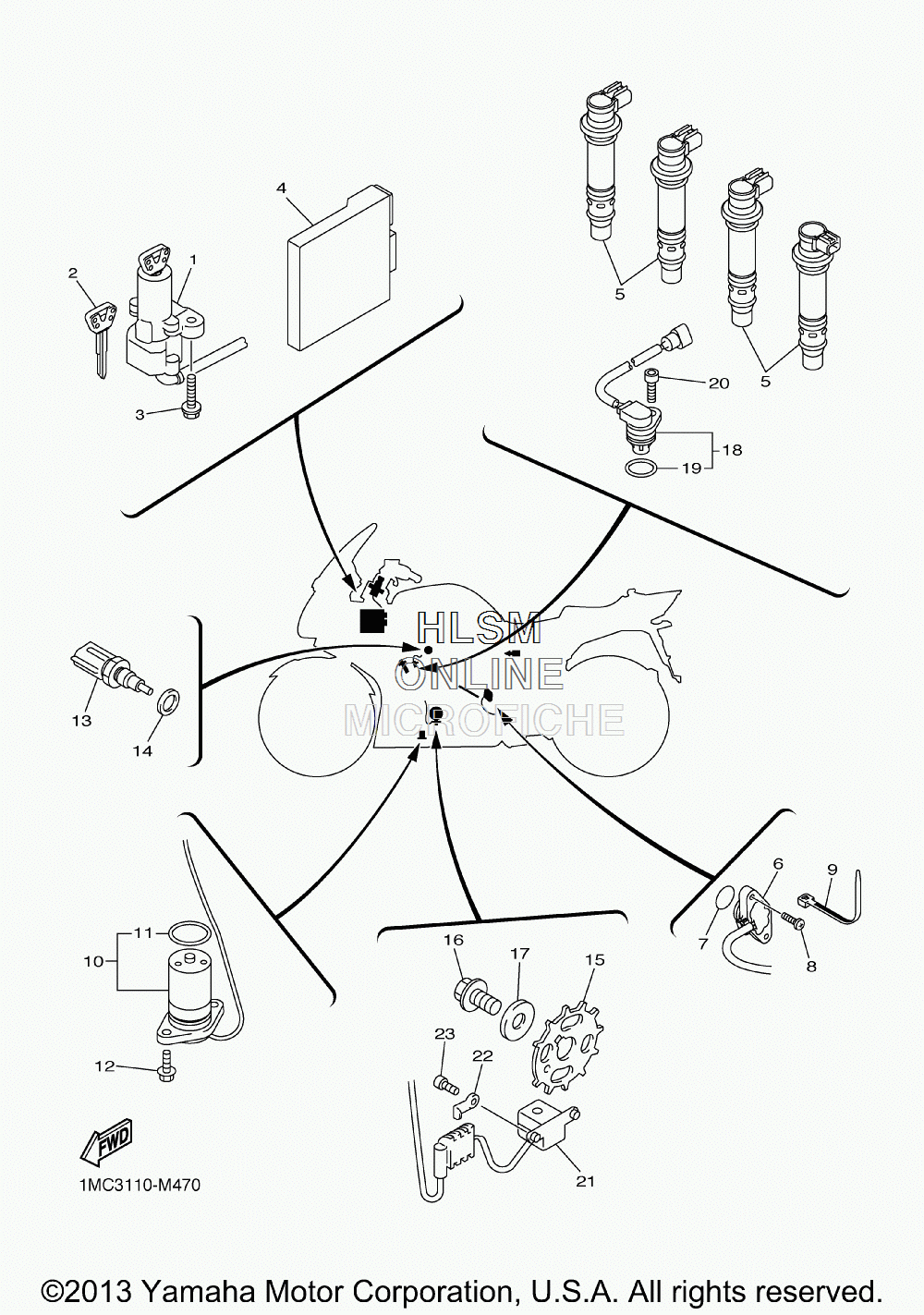

ELECTRICAL для Yamaha FJR1300A - 2014 года выпуска
-
№АртикулНазвание
-
15PS-82501-20-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
24BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
390109-08195-00 BOLTBOLT
-
41MC-8591A-50-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
51MC-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
61MC-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
793210-21001-00 O-RINGO-RING
-
890154-05073-00 SCREW, BINDINGSCREW, BINDING
-
91UA-82591-00-00 BANDBAND
-
101MC-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
114XV-8A8E0-00-00 ...O-RING...O-RING
-
1295022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
135YP-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1490201-12790-00 WASHER, PLATEWASHER, PLATE
-
151MC-81673-00-00 ROTORROTOR
-
1690105-10153-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-10065-00 WASHER, PLATEWASHER, PLATE
-
181MC-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
194D9-81168-00-00 ...O-RING...O-RING
-
2090110-06193-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
213P6-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
2290465-08055-00 CLAMPCLAMP
-
2390110-05032-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
