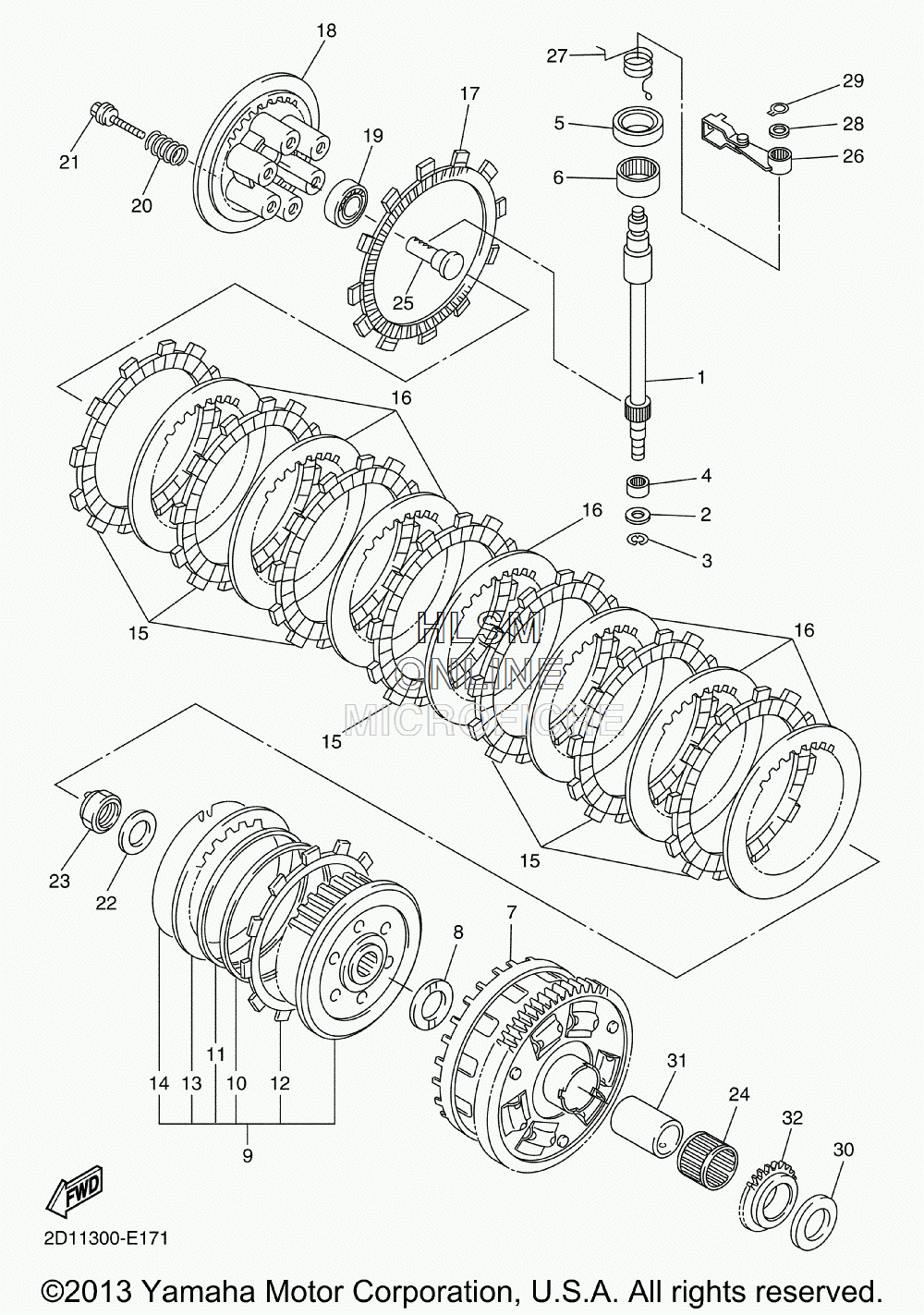

CLUTCH для Yamaha FZ1 - 2014 года выпуска
-
№АртикулНазвание
-
12D1-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
292907-08600-00 WASHER, PLATEWASHER, PLATE
-
399001-07600-00 CIRCLIPCIRCLIP
-
493317-11096-00 BEARINGBEARING
-
593102-15212-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
693315-31502-00 BEARING CYL.#15BEARING CYL.#15
-
75VY-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
85VY-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
92D1-16370-00-00 CLUTCH BOSS ASSYCLUTCH BOSS ASSY
-
105VY-16384-00-00 ...PLATE, SEAT...PLATE, SEAT
-
115VY-16383-00-00 ...SPRING.,CUSHION...SPRING.,CUSHION
-
125VY-16331-00-00 ...PLATE, FRICTION 2...PLATE, FRICTION 2
-
135VY-16325-00-00 ...PLATE, CLUTCH 2...PLATE, CLUTCH 2
-
144X7-16385-00-00 ...RING SET...RING SET
-
155VY-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
165VY-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
175VY-16330-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
185VY-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1993306-00304-00 BEARINGBEARING
-
2090501-230A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2190119-06257-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2290208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2390179-20007-00 NUTNUT
-
2493310-232R9-00 BEARINGBEARING
-
254XV-16356-01-00 ROD, PUSH 1ROD, PUSH 1
-
265VY-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
2790508-18051-00 SPRING, TORSIONSPRING, TORSION
-
2890201-10029-00 WASHER, PLATEWASHER, PLATE
-
2999009-10400-00 CIRCLIPCIRCLIP
-
305VY-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
315VY-16181-00-00 SPACER 1SPACER 1
-
325VY-13354-00-00 SPROCKET, DRIVESPROCKET, DRIVE
