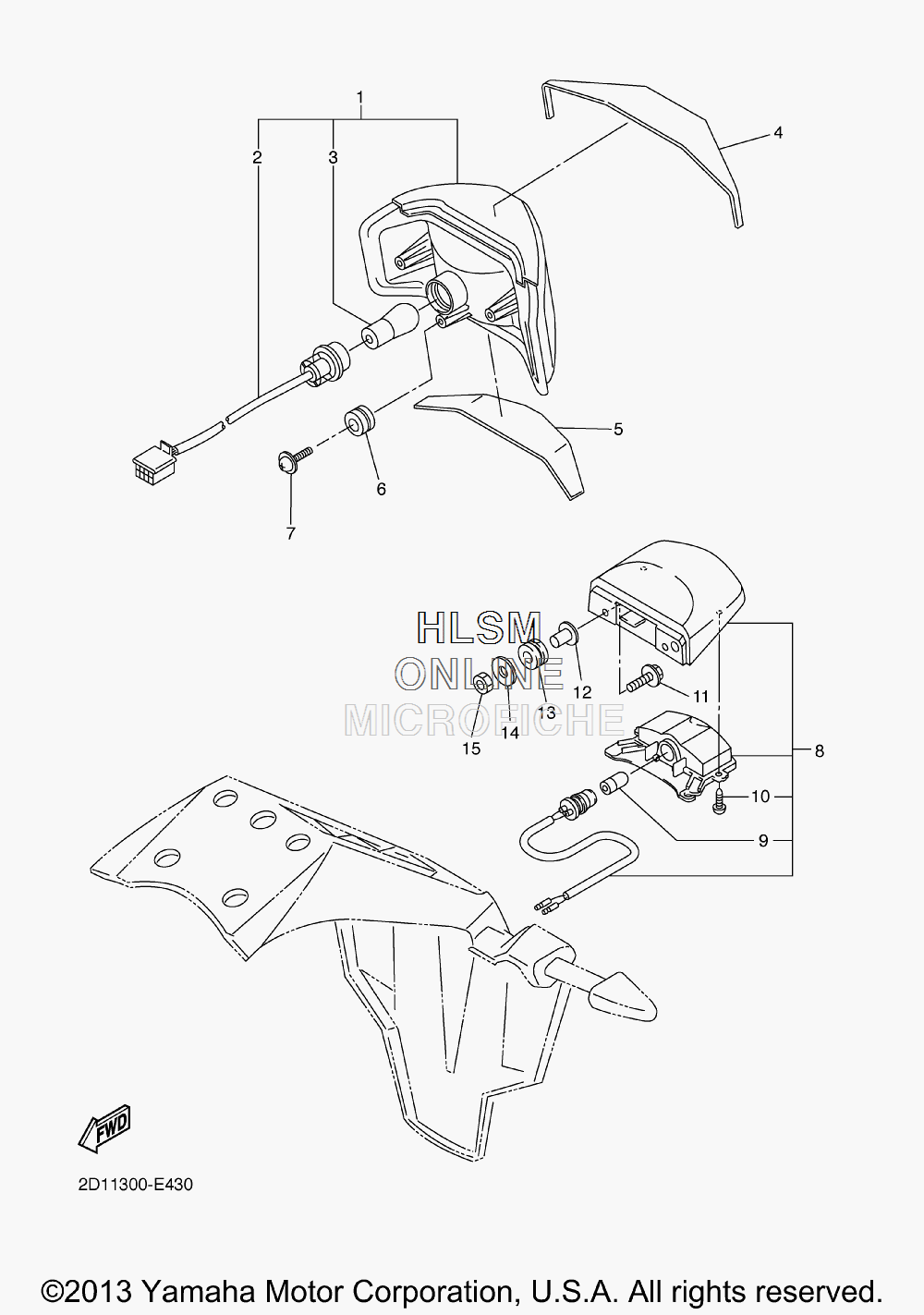

TAILLIGHT для Yamaha FZ1 - 2014 года выпуска
-
№АртикулНазвание
-
12D1-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
22D1-84735-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
31A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
43C3-84736-00-00 DAMPER, TAIL 1DAMPER, TAIL 1
-
52D1-84737-00-00 DAMPER, TAIL 2DAMPER, TAIL 2
-
690480-18276-00 GROMMETGROMMET
-
790164-05001-00 SCREW, TAPPINGSCREW, TAPPING
-
82D1-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
94HC-84744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
1097706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1190159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1290387-05042-00 COLLARCOLLAR
-
1390480-11009-00 GROMMETGROMMET
-
1492902-05200-00 WASHERWASHER
-
1595602-05100-00 NUT, UNUT, U
