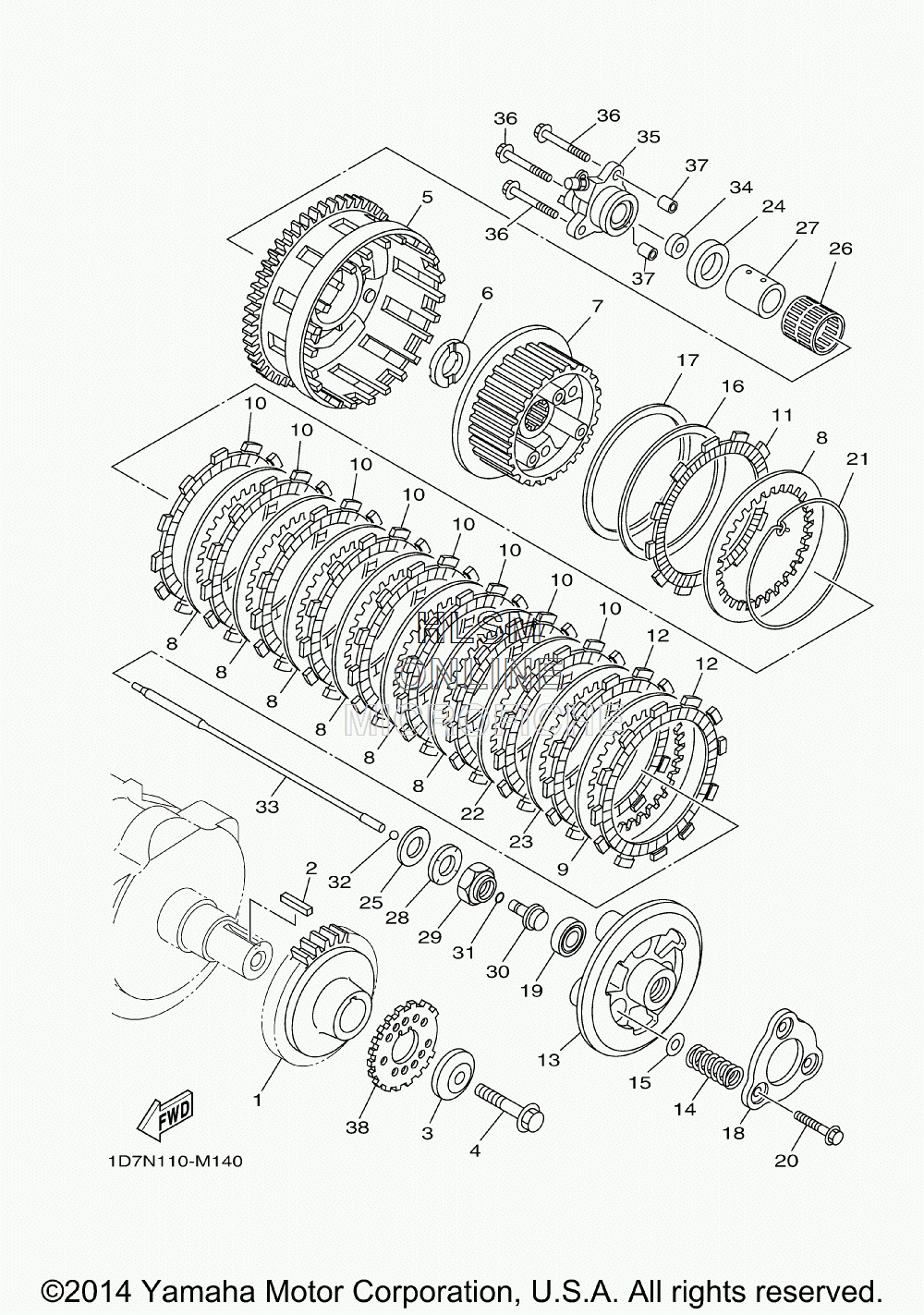

CLUTCH для Yamaha RAIDER S - 2014 года выпуска
-
№АртикулНазвание
-
11D7-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
24WM-16193-00-00 KEY, FEATHERKEY, FEATHER
-
34WM-16181-00-00 SPACER 1SPACER 1
-
490105-12059-00 BOLT, FLANGEBOLT, FLANGE
-
51D7-16150-10-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
61D7-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
71D7-16371-10-00 BOSS, CLUTCHBOSS, CLUTCH
-
82H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
91D7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
101D7-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
114XV-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
121PK-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
131D7-16351-10-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
141D7-16173-00-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
151D7-16384-00-00 PLATE, SEATPLATE, SEAT
-
1636Y-16383-00-00 SPRING, CUSHIONSPRING, CUSHION
-
1736Y-16384-00-00 PLATE, SEATPLATE, SEAT
-
181D7-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
1993306-00304-00 BEARINGBEARING
-
201D7-16337-00-00 SCREW, SPRINGSCREW, SPRING
-
212H7-16385-00-00 RING SETRING SET
-
222H7-16324-00-00 PLATE, CLUTCH 1 (OPT)PLATE, CLUTCH 1 (OPT)
-
222H7-16325-00-00 PLATE, CLUTCH 2 (OPT)PLATE, CLUTCH 2 (OPT)
-
2247X-16324-00-00 PLATE, CLUTCH 1 (OPT)PLATE, CLUTCH 1 (OPT)
-
2347X-16324-00-00 PLATE, CLUTCH 1 (OPT)PLATE, CLUTCH 1 (OPT)
-
232H7-16325-00-00 PLATE, CLUTCH 2 (OPT)PLATE, CLUTCH 2 (OPT)
-
232H7-16324-00-00 PLATE, CLUTCH 1 (OPT)PLATE, CLUTCH 1 (OPT)
-
241D7-16164-00-00 PLATE, THRUST 2PLATE, THRUST 2
-
2590201-22013-00 WASHER, PLATEWASHER, PLATE
-
2693310-33559-00 BEARINGBEARING
-
2790387-28006-00 COLLARCOLLAR
-
2890208-22003-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2990179-22010-00 NUTNUT
-
304KG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
3193210-06632-00 O-RINGO-RING
-
3293511-32017-00 BALLBALL
-
331D7-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
3493109-08061-00 OIL SEALOIL SEAL
-
351D7-16381-00-00 PUSH LEVER COMPPUSH LEVER COMP
-
3695814-06055-00 BOLT, FLANGEBOLT, FLANGE
-
3799530-08012-00 PIN, DOWELPIN, DOWEL
-
381D7-81673-01-00 ROTORROTOR
