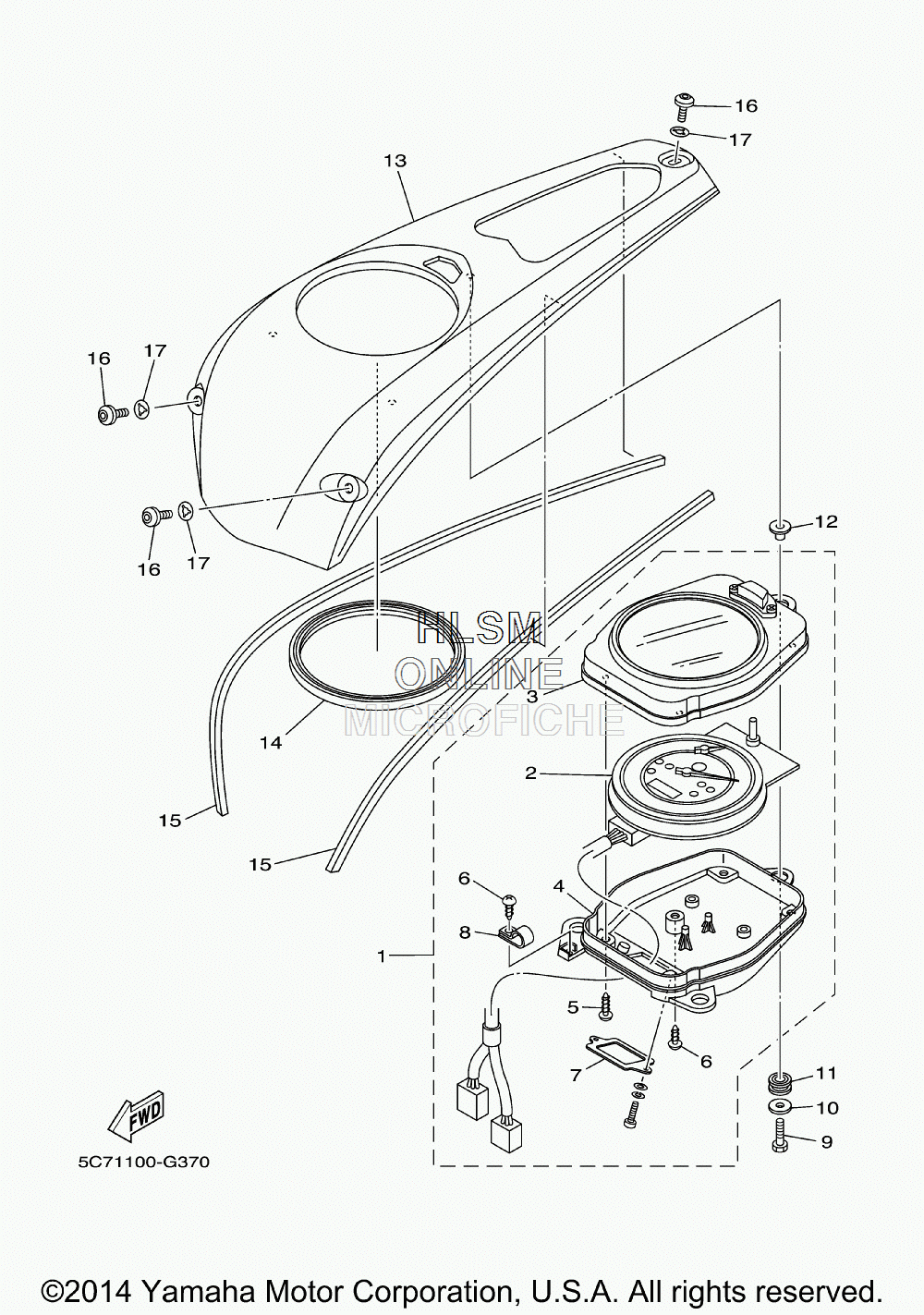

INSTRUMENT PANEL для Yamaha RAIDER S - 2014 года выпуска
-
№АртикулНазвание
-
15C7-83500-02-00 METER ASSYMETER ASSY
-
25C7-83510-02-00 ...SPEEDOMETER ASSY...SPEEDOMETER ASSY
-
35C7-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
44WM-8353F-02-00 ...CASE, METER LOWER...CASE, METER LOWER
-
597707-40016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
690164-04023-00 ...SCREW, TAPPING...SCREW, TAPPING
-
74WM-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
85EL-8357E-00-00 ...CLAMP...CLAMP
-
990101-05004-00 BOLTBOLT
-
1090201-05036-00 WASHER, PLATEWASHER, PLATE
-
114WM-83513-00-00 DAMPERDAMPER
-
1290387-050T5-00 COLLARCOLLAR
-
135C7-83559-00-00 COVER, METERCOVER, METER
-
145C7-28347-00-00 MOLE 3MOLE 3
-
155C7-28345-00-00 MOLE 1MOLE 1
-
1690149-06264-00 SCREWSCREW
-
174U5-2176E-00-00 PLATEPLATE
