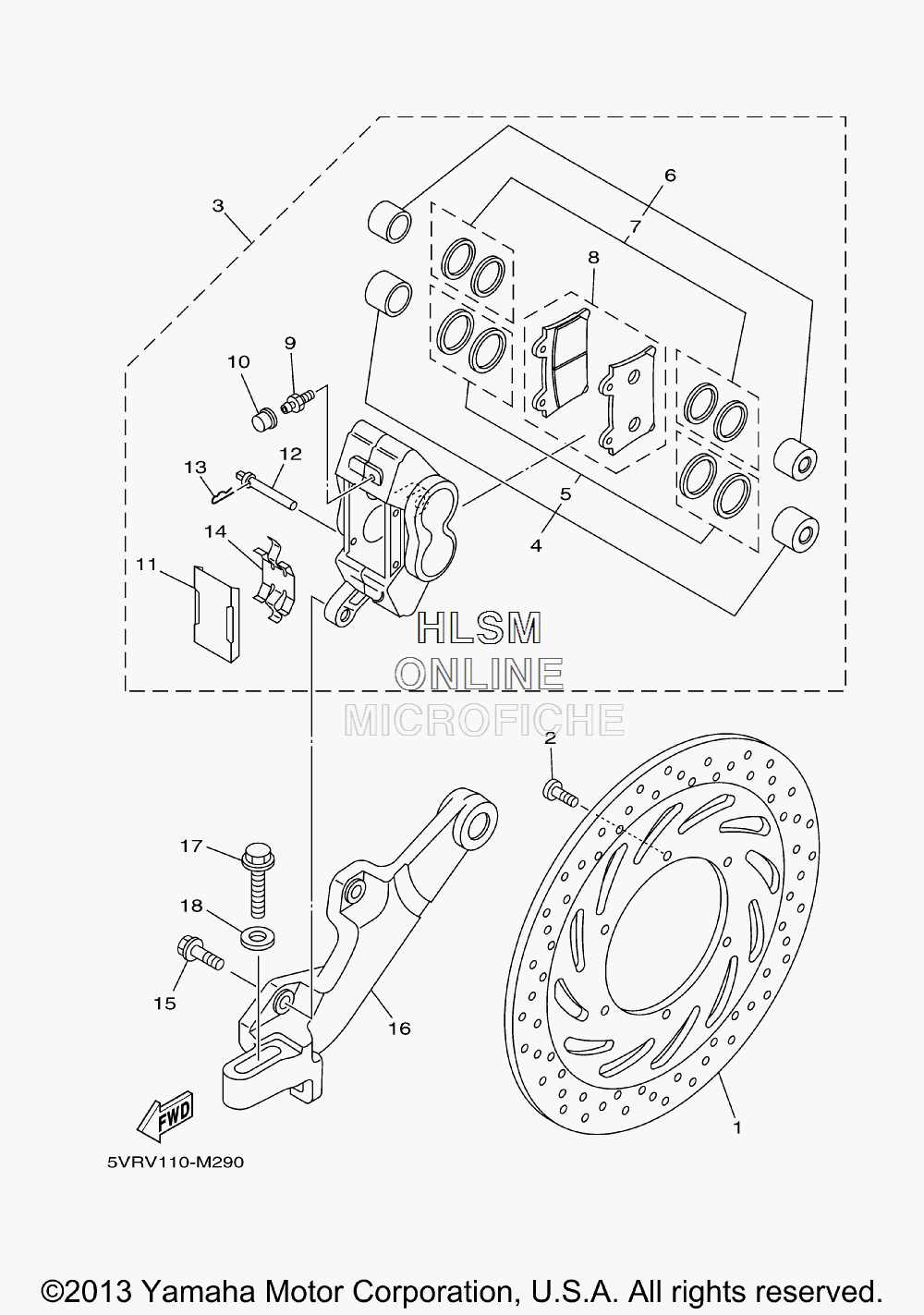

BRAKE - REAR CALIPER для Yamaha ROAD STAR S - 2014 года выпуска
-
№АртикулНазвание
-
14WM-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
34WM-2580W-10-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
41KT-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
51KT-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
64NK-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
74NK-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
84KG-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
91J3-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
10306-25825-01-00 ...CAP...CAP
-
111NL-25836-00-00 ...COVER, DUST...COVER, DUST
-
123HE-25924-00-00 ...PIN, PAD...PIN, PAD
-
133GM-25925-00-00 ...CLIP...CLIP
-
141NL-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
1590105-10638-00 BOLT WASHER BASEDBOLT WASHER BASED
-
164WM-25819-00-00 BRACKET, CALIPERBRACKET, CALIPER
-
1795827-10050-00 BOLT, FLANGEBOLT, FLANGE
-
1890201-10140-00 WASHER, PLATEWASHER, PLATE
