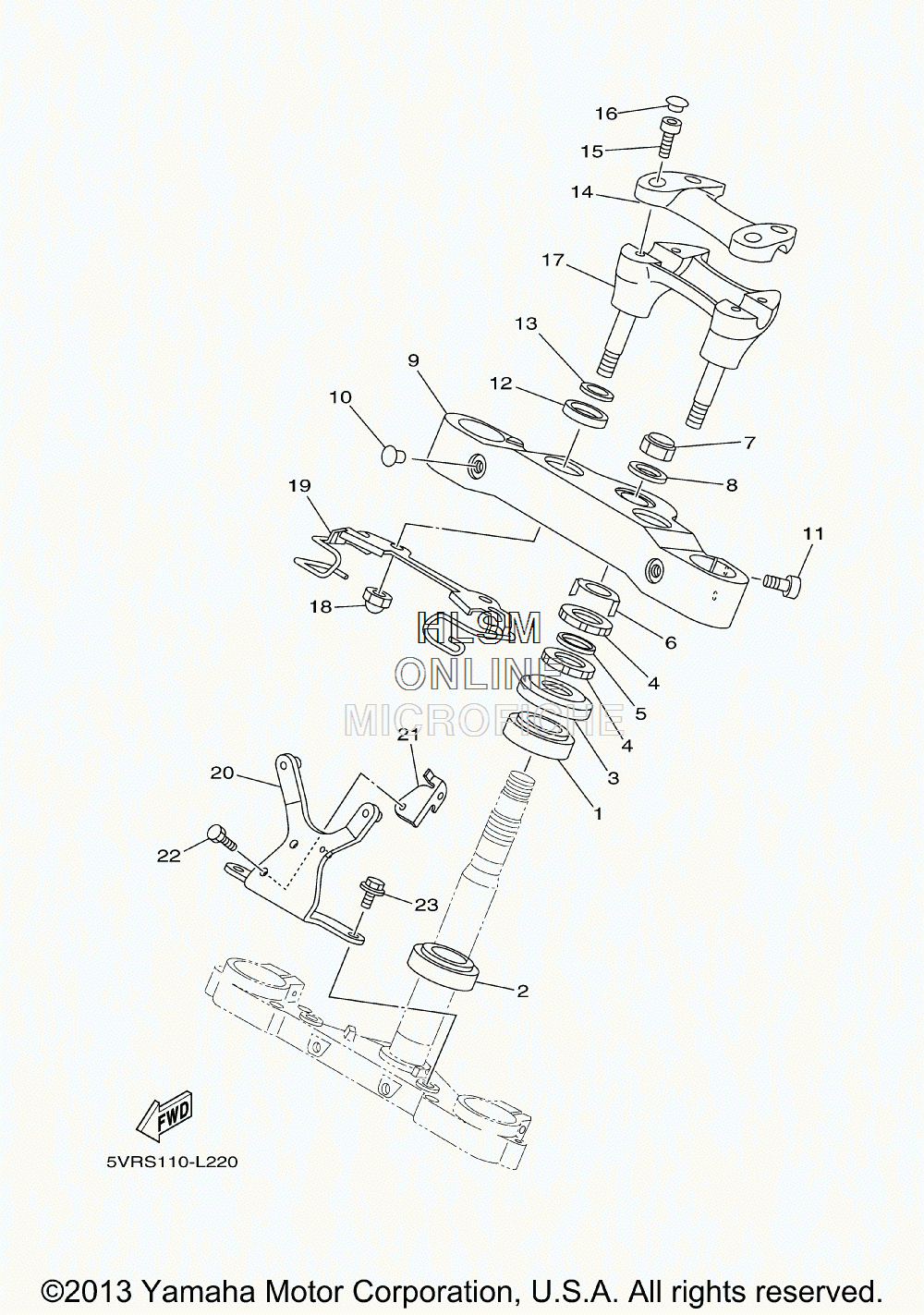

STEERING для Yamaha ROAD STAR S - 2014 года выпуска
-
№АртикулНазвание
-
193332-00001-00 BEARING TAPRD #32BEARING TAPRD #32
-
293332-00008-00 BEARING TAPRD #32BEARING TAPRD #32
-
31W1-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
490179-25004-00 NUTNUT
-
590202-26142-00 WASHER, PLATEWASHER, PLATE
-
626H-23418-01-00 WASHER, SPECIALWASHER, SPECIAL
-
790176-22002-00 NUT, CROWNNUT, CROWN
-
890201-220T0-00 WASHER, PLATEWASHER, PLATE
-
94WM-W2341-10-00 CROWN, HANDLECROWN, HANDLE
-
104WM-23497-00-00 GROMMETGROMMET
-
1191314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
123DM-23445-00-00 DAMPERDAMPER
-
1390201-14220-00 WASHER, PLATEWASHER, PLATE
-
145VR-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1591314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690338-08163-00 PLUGPLUG
-
175VR-23442-01-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1890176-12052-00 NUT, CROWNNUT, CROWN
-
194WM-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
205VN-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
215VN-23175-00-00 BRACKET, HEADLIGHT STAY 1BRACKET, HEADLIGHT STAY 1
-
2297007-05012-00 BOLTBOLT
-
2390105-06010-00 BOLT, FLANGEBOLT, FLANGE
