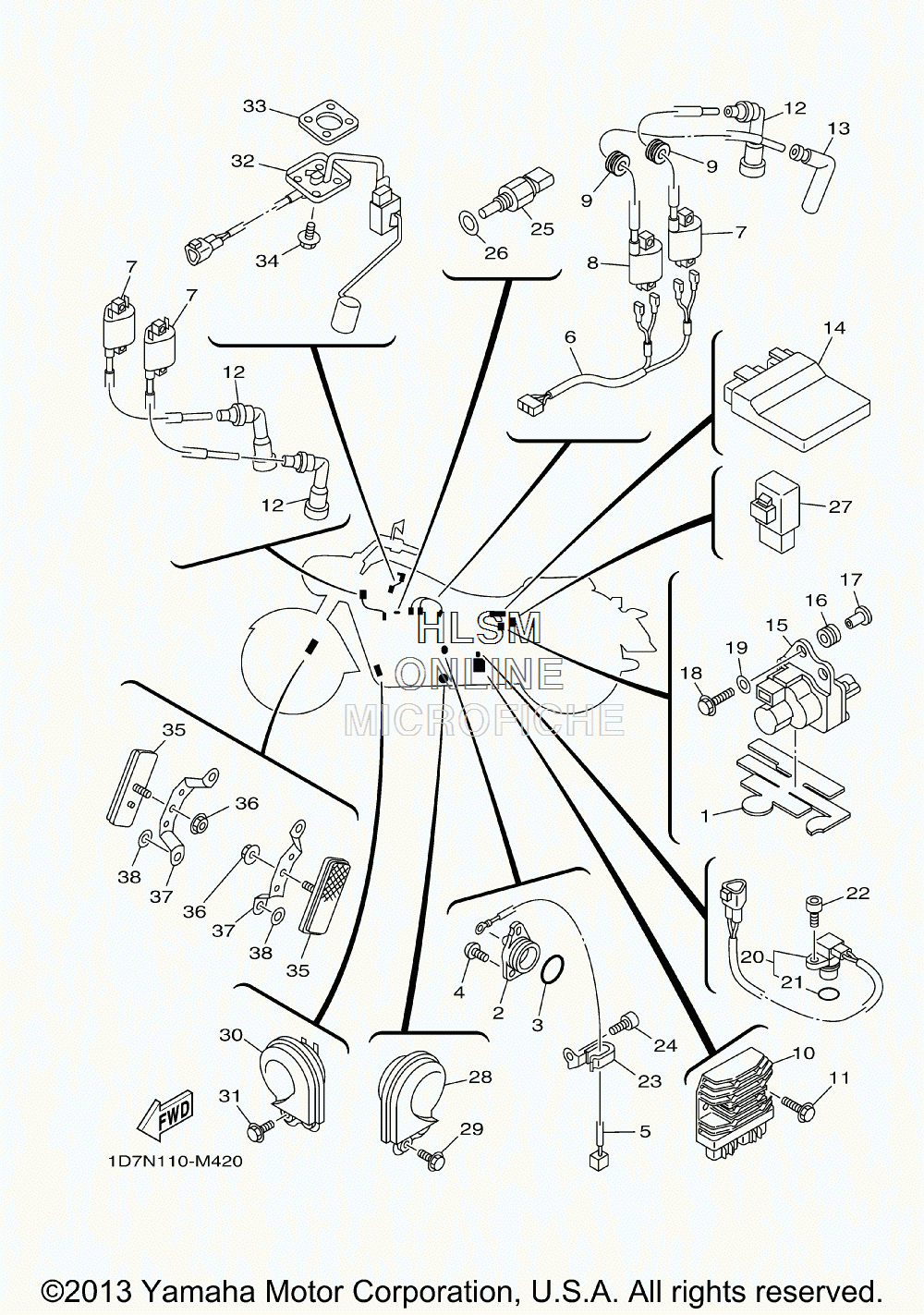

ELECTRICAL для Yamaha ROADLINER S - 2014 года выпуска
-
№АртикулНазвание
-
11D7-2177M-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
21AE-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
393210-29196-00 O-RINGO-RING
-
490149-06069-00 SCREWSCREW
-
55C7-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
61D7-82509-50-00 WIRE, SUB LEADWIRE, SUB LEAD
-
71D7-82310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
81D7-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
990480-14014-00 GROMMETGROMMET
-
101D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1195022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
121D7-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
135VK-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
141D7-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
155VY-85820-00-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
1690480-14005-00 GROMMETGROMMET
-
1790387-063E6-00 COLLARCOLLAR
-
1895022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1990201-06M31-00 WASHER, PLATEWASHER, PLATE
-
201D7-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
214D9-81168-00-00 ...O-RING...O-RING
-
2290110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2390465-08127-00 CLAMPCLAMP
-
2490110-06227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
255PX-83591-00-00 THERMO UNITTHERMO UNIT
-
2690201-12172-00 WASHER, PLATEWASHER, PLATE
-
271D7-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
281D7-83371-00-00 HORNHORN
-
2990119-06001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
301D7-83371-10-00 HORNHORN
-
3190119-06001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
321D7-85752-10-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
335G3-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
3490119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3511H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
3695707-05500-00 NUT FLANGE 3GM (BLACK)NUT FLANGE 3GM (BLACK)
-
371D7-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
3890201-112U6-00 WASHER, PLATEWASHER, PLATE
