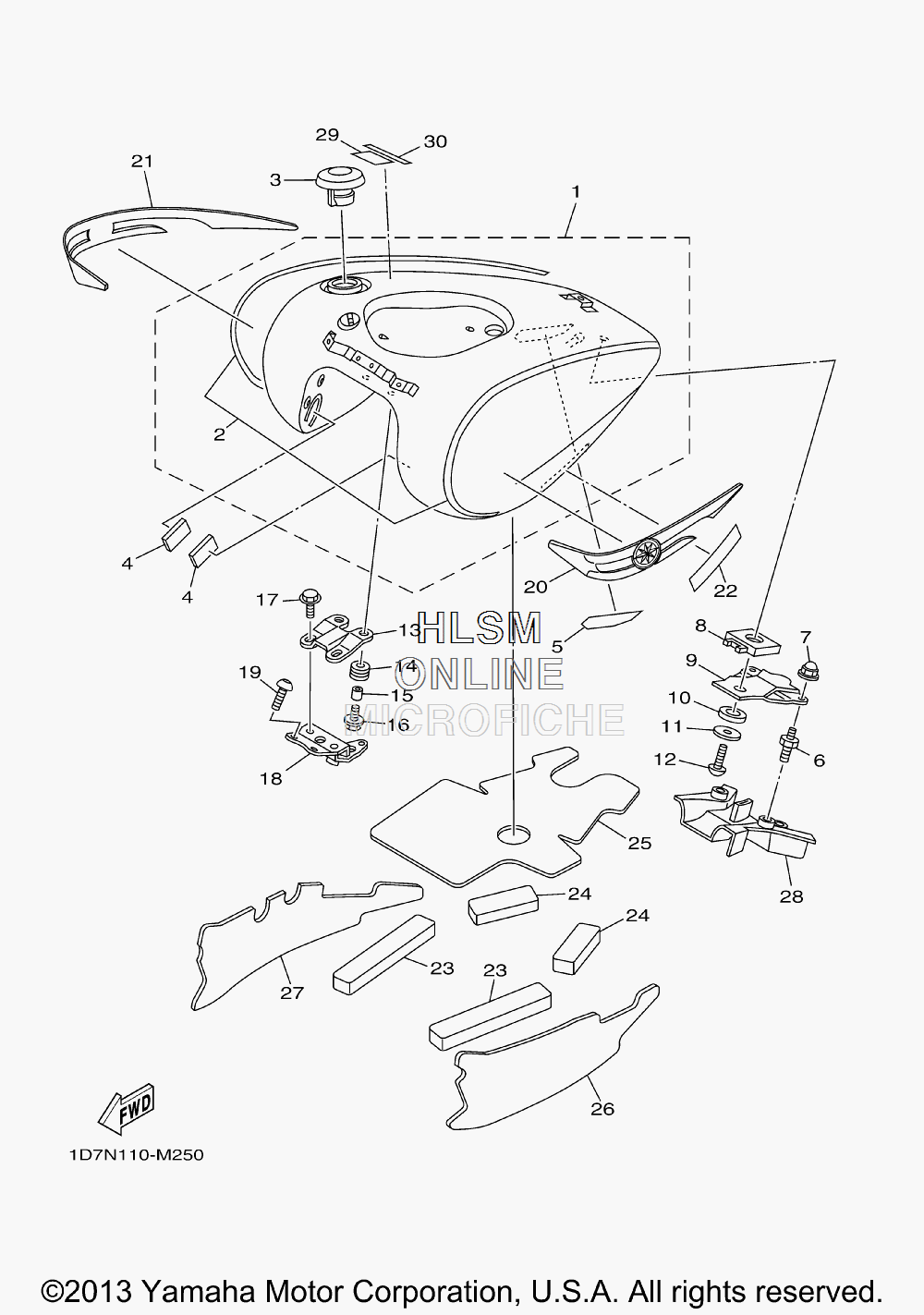

FUEL TANK для Yamaha ROADLINER S - 2014 года выпуска
-
№АртикулНазвание
-
11D7-Y2410-00-W7 FUEL TANK COMP. FOR DPBMXFUEL TANK COMP. FOR DPBMX
-
22C5-24240-20-00 ...GRAPHIC SET...GRAPHIC SET
-
34NK-24602-20-00 CAP ASSYCAP ASSY
-
41FK-21746-00-00 DAMPERDAMPER
-
51D7-2413X-00-00 PLATEPLATE
-
65PX-24176-01-00 BOLT 1BOLT 1
-
790176-06055-00 NUT, CROWNNUT, CROWN
-
81D7-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
91D7-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
104TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1190201-06110-00 WASHER, PLATEWASHER, PLATE
-
1292012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
131D7-24191-01-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
1490480-15483-00 GROMMETGROMMET
-
1590387-06054-00 COLLARCOLLAR
-
1690119-06264-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1795802-08012-00 BOLT, FLANGEBOLT, FLANGE
-
181D7-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
1992017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
201D7-24161-10-00 EMBLEM 1EMBLEM 1
-
211D7-24162-10-00 EMBLEM 2EMBLEM 2
-
223TU-28344-00-00 TAPETAPE
-
231D7-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
241D7-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
251D7-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
261D7-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
271D7-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
281D7-24217-00-00 COVERCOVER
-
295GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
305PW-2415E-11-00 LABEL, CAUTION (ENGLISH)LABEL, CAUTION (ENGLISH)
