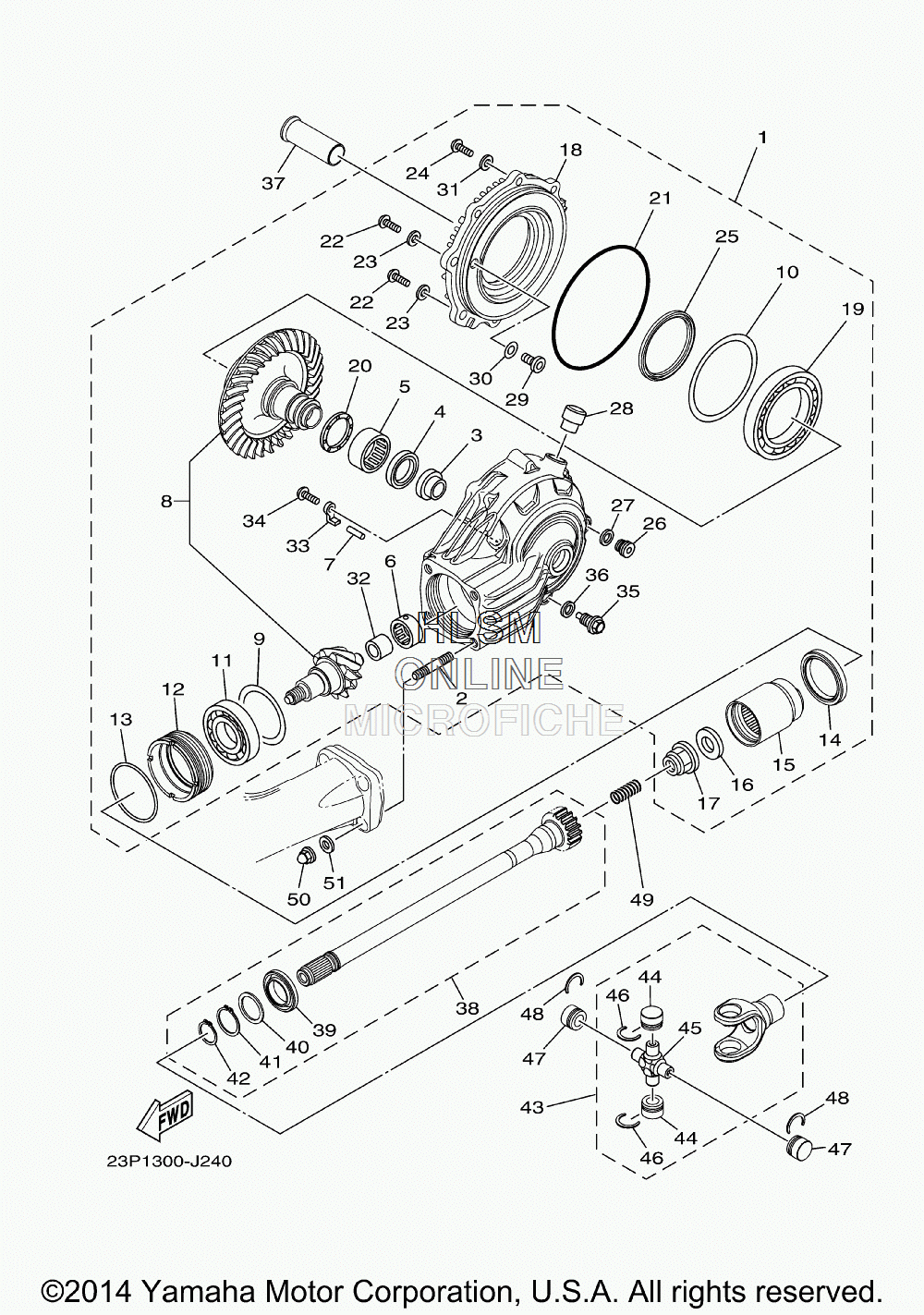

DRIVE SHAFT для Yamaha SUPER TENERE ES - 2014 года выпуска
-
№АртикулНазвание
-
123P-46101-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
290116-10055-00 ...BOLT, STUD...BOLT, STUD
-
323P-46153-00-00 ...COLLAR, GUIDE...COLLAR, GUIDE
-
493102-32480-00 ...OIL SEAL...OIL SEAL
-
593311-43729-00 ...BEARING CYL.#11...BEARING CYL.#11
-
693311-62597-00 ...BEARING...BEARING
-
793605-23164-00 ...PIN, DOWEL...PIN, DOWEL
-
823P-461A0-00-00 ...GEAR SET...GEAR SET
-
92S3-46119-00-00 ...SHIM, THRUST (T0.15) (OPT)...SHIM, THRUST (T0.15) (OPT)
-
92S3-46119-10-00 ...SHIM, THRUST (T0.3) (OPT)...SHIM, THRUST (T0.3) (OPT)
-
92S3-46119-20-00 ...SHIM, THRUST (T0.4) (OPT)...SHIM, THRUST (T0.4) (OPT)
-
92S3-46119-30-00 ...SHIM, THRUST (T0.45) (OPT)...SHIM, THRUST (T0.45) (OPT)
-
92S3-46119-40-00 ...SHIM, THRUST (T0.5) (OPT)...SHIM, THRUST (T0.5) (OPT)
-
92S3-46119-50-00 ...SHIM, THRUST (T0.6) (OPT)...SHIM, THRUST (T0.6) (OPT)
-
92S3-46119-60-00 ...SHIM, THRUST (T0.2) (OPT)...SHIM, THRUST (T0.2) (OPT)
-
92S3-46119-70-00 ...SHIM, THRUST (T0.25) (OPT)...SHIM, THRUST (T0.25) (OPT)
-
101J7-46117-Y0-25 ...SHIM, RING GEAR (0.25T) (OPT)...SHIM, RING GEAR (0.25T) (OPT)
-
101J7-46117-Y0-30 ...SHIM, RING GEAR (0.30T) (OPT)...SHIM, RING GEAR (0.30T) (OPT)
-
101J7-46117-Y0-40 ...SHIM, RING GEAR (0.40T) (OPT)...SHIM, RING GEAR (0.40T) (OPT)
-
101J7-46117-Y0-50 ...SHIM, RING GEAR (0.50T) (OPT)...SHIM, RING GEAR (0.50T) (OPT)
-
1193306-20724-00 ...BEARING...BEARING
-
1223P-46125-00-00 ...RETAINER, BEARING...RETAINER, BEARING
-
1393210-69628-00 ...O-RING...O-RING
-
1493102-50009-00 ...OIL SEAL...OIL SEAL
-
1523P-46123-00-00 ...COUPLING, GEAR...COUPLING, GEAR
-
1690208-20001-00 ...WASHER, CONICAL SPRING...WASHER, CONICAL SPRING
-
1790179-20015-00 ...NUT...NUT
-
1823P-46152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
1993316-01403-00 ...BEARING CYL.#16...BEARING CYL.#16
-
2022U-46118-00-14 ...SHIM, THRUST (1.4T) (OPT)...SHIM, THRUST (1.4T) (OPT)
-
2022U-46118-00-16 ...SHIM, THRUST (1.6T) (OPT)...SHIM, THRUST (1.6T) (OPT)
-
2022U-46118-00-18 ...SHIM, THRUST (1.8T) (OPT)...SHIM, THRUST (1.8T) (OPT)
-
2022U-46118-00-12 ...SHIM, THRUST (1.2T) (OPT)...SHIM, THRUST (1.2T) (OPT)
-
2022U-46118-00-20 ...SHIM, THRUST (2.0T) (OPT)...SHIM, THRUST (2.0T) (OPT)
-
2193211-54698-00 ...O-RING...O-RING
-
2290149-10055-00 ...SCREW...SCREW
-
2390201-10045-00 ...WASHER, PLATE...WASHER, PLATE
-
2490149-08051-00 ...SCREW...SCREW
-
2593102-70004-00 ...OIL SEAL...OIL SEAL
-
2690340-14002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
27214-11198-01-00 ...GASKET...GASKET
-
282H7-17590-00-00 ...BREATHER COMP....BREATHER COMP.
-
291FK-46156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
301FK-46157-00-15 ...SHIM, STOPPER (T=0.15) (OPT)...SHIM, STOPPER (T=0.15) (OPT)
-
301FK-46157-00-20 ...SHIM, STOPPER (T=0.20) (OPT)...SHIM, STOPPER (T=0.20) (OPT)
-
3190201-08043-00 ...WASHER, PLATE...WASHER, PLATE
-
3223P-46122-00-00 ...RACE, INNER...RACE, INNER
-
332S3-46862-00-00 ...HOLDER...HOLDER
-
3490149-06158-00 ...SCREW...SCREW
-
3590340-14004-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
36214-11198-01-00 ...GASKET...GASKET
-
3723P-4615A-00-00 COLLAR, GUIDE 1COLLAR, GUIDE 1
-
3823P-46171-00-00 SHAFT DRIVE ASSYSHAFT DRIVE ASSY
-
3993108-49003-00 ...OIL SEAL...OIL SEAL
-
4090201-29M01-00 ...WASHER, PLATE...WASHER, PLATE
-
4193410-29095-00 ...CIRCLIP...CIRCLIP
-
4293410-23056-00 ...CIRCLIP S-TYPE...CIRCLIP S-TYPE
-
4323P-46180-00-00 CROSS JOINT COMP.CROSS JOINT COMP.
-
4493399-99963-00 ...BEARING...BEARING
-
4523P-46187-00-00 ...SPIDER...SPIDER
-
4693440-22196-00 ...CIRCLIP...CIRCLIP
-
4793399-99963-00 BEARINGBEARING
-
4893440-22196-00 CIRCLIPCIRCLIP
-
4990501-20122-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5090176-10075-00 NUT, CROWNNUT, CROWN
-
5192990-10600-00 WASHER, PLATEWASHER, PLATE
