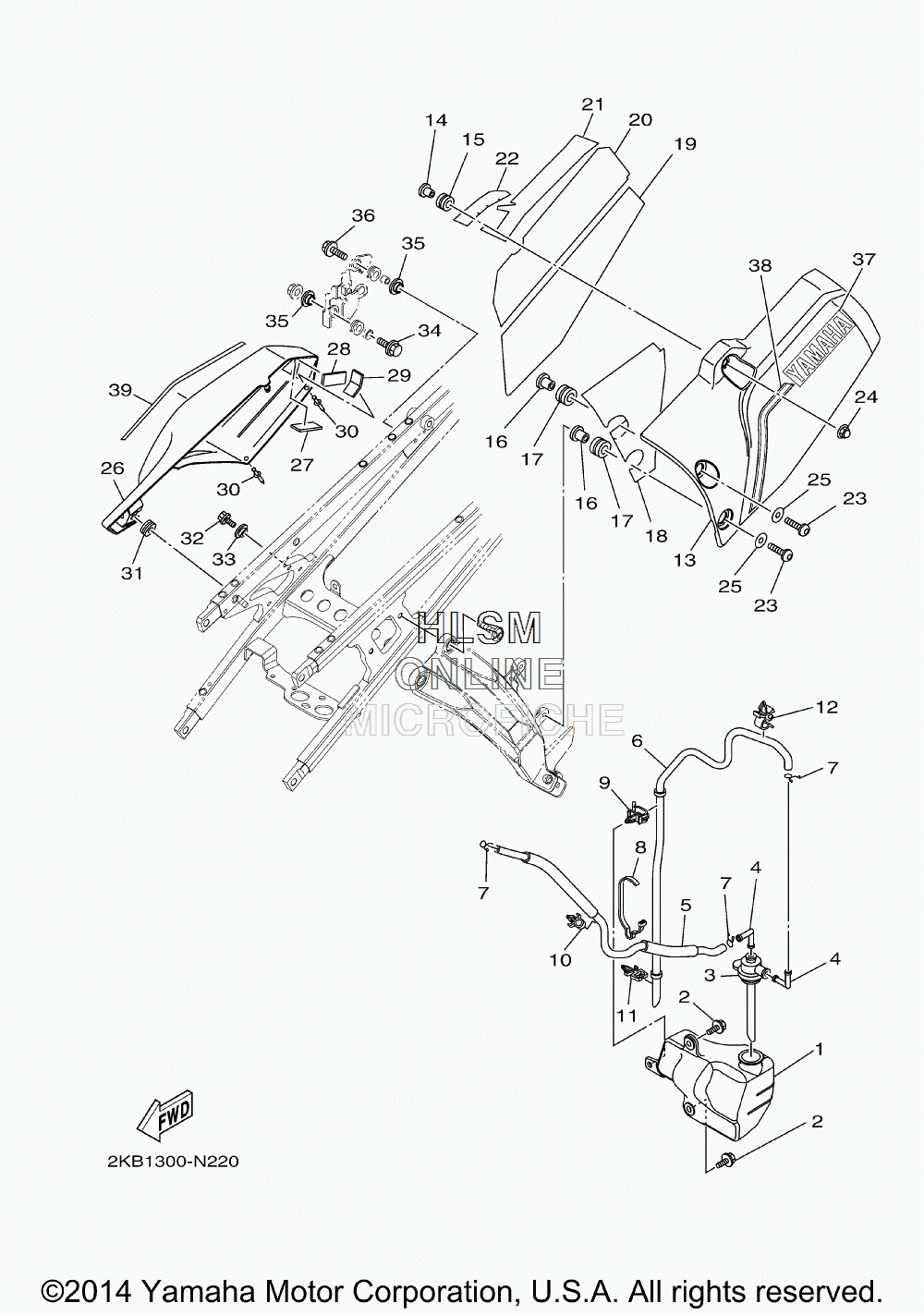

SIDE COVER для Yamaha SUPER TENERE ES - 2014 года выпуска
-
№АртикулНазвание
-
123P-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
290119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
323P-21875-00-00 CAPCAP
-
426H-21828-00-00 ELBOWELBOW
-
523P-21816-00-00 PIPE 1PIPE 1
-
623P-21877-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
790467-08075-00 CLIPCLIP
-
890464-07M40-00 CLAMPCLAMP
-
990464-14M55-00 CLAMPCLAMP
-
1090464-08008-00 CLAMPCLAMP
-
1190464-07M56-00 CLAMPCLAMP
-
1290464-09129-00 CLAMPCLAMP
-
132BS-14718-00-00 PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
1490387-087L0-00 COLLARCOLLAR
-
1590480-12581-00 GROMMETGROMMET
-
1690387-10102-00 COLLARCOLLAR
-
1790480-01025-00 GROMMETGROMMET
-
182BS-1475P-00-00 SEATSEAT
-
192BS-1476P-00-00 SEATSEAT
-
202BS-1477P-00-00 SEATSEAT
-
212BS-1479P-00-00 SEAT 5SEAT 5
-
222BS-1471P-00-00 SEAT, 6SEAT, 6
-
2390111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2490176-06047-00 NUT,CAPNUT,CAP
-
2590201-06112-00 WASHER, PLATEWASHER, PLATE
-
262KB-21721-00-P0 COVER, SIDE 2 (MBL2 FOR MNM3)COVER, SIDE 2 (MBL2 FOR MNM3)
-
271S3-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
2814B-28237-00-00 DAMPER 3DAMPER 3
-
293D7-1442H-00-00 DAMPER 4DAMPER 4
-
3090269-06081-00 RIVETRIVET
-
3190480-12325-00 GROMMETGROMMET
-
3295802-08016-00 BOLT, FLANGEBOLT, FLANGE
-
3390387-08079-00 COLLARCOLLAR
-
3495802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3590387-06066-00 COLLARCOLLAR
-
3695802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
3799247-00120-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
382BS-146E1-10-00 GRAPHIC 1GRAPHIC 1
-
392KB-21788-20-00 GRAPHICGRAPHIC
