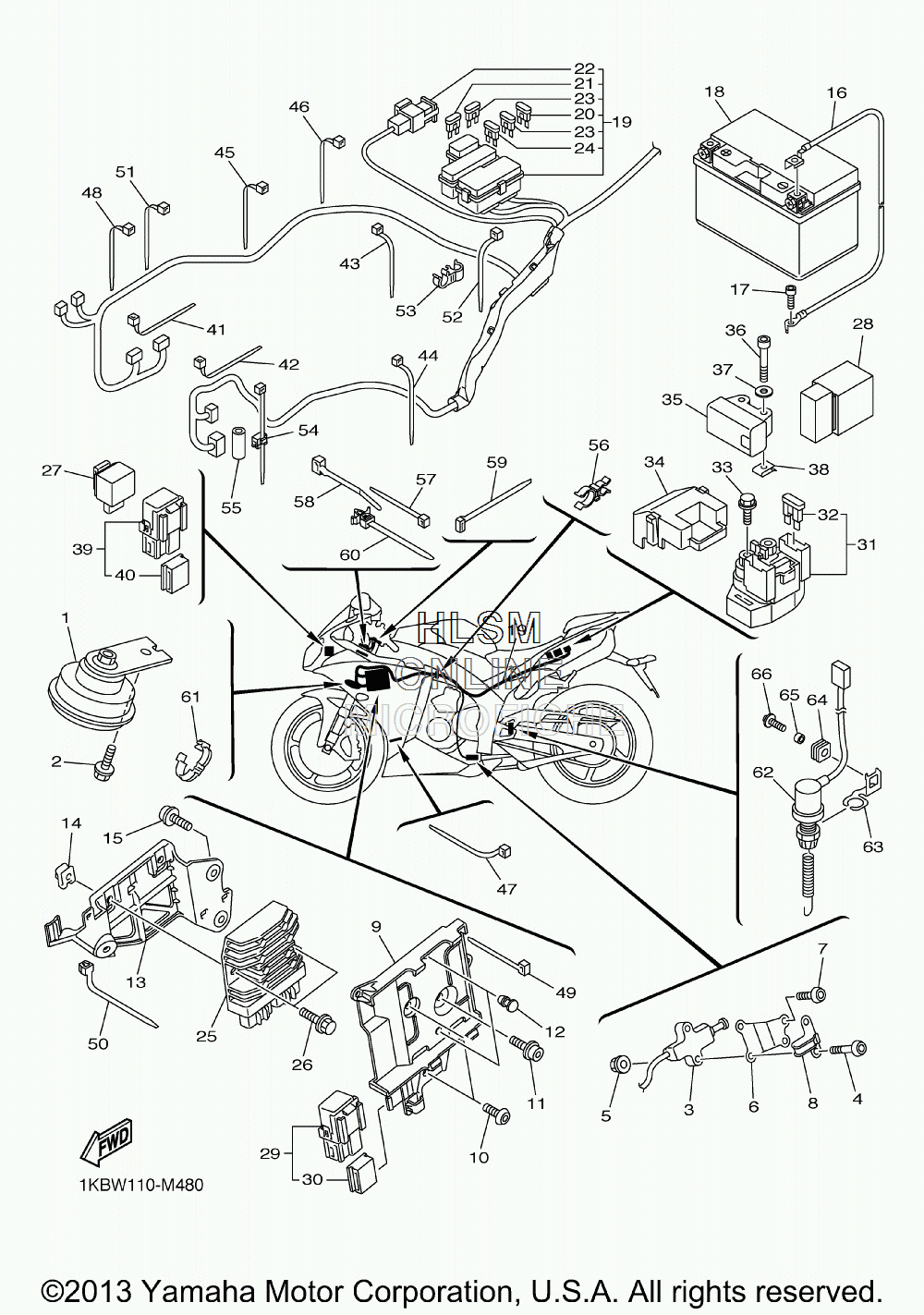

ELECTRICAL 2 для Yamaha YZFR1 - 2014 года выпуска
-
№АртикулНазвание
-
114B-83371-00-00 HORNHORN
-
295802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
313S-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
492012-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
595602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
614B-27961-00-00 BRACKET, SENSOR 1BRACKET, SENSOR 1
-
792012-05016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
814B-27911-00-00 HOLDERHOLDER
-
914B-2836H-00-00 BRACKET 5BRACKET 5
-
1090111-06119-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1190110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290338-06018-00 PLUGPLUG
-
1314B-2836J-00-00 BRACKET 6BRACKET 6
-
1490183-06069-00 NUT, SPRINGNUT, SPRING
-
1590110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1614B-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
1791312-06012-00 BOLTBOLT
-
185VY-82100-00-00 BATTERY ASSY (YUASA YTZ10S)BATTERY ASSY (YUASA YTZ10S)
-
191KB-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
205JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
215JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
225JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
235JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
245JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
251D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2690105-06148-00 BOLT, FLANGEBOLT, FLANGE
-
274MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
285VK-81950-40-00 RELAY ASSY (5VK-40)RELAY ASSY (5VK-40)
-
291ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
305JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
312C0-81940-00-00 STARTER RELAY ASSY (RC19-054)STARTER RELAY ASSY (RC19-054)
-
3236Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
3395022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
345SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
355VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3691312-04025-00 BOLTBOLT
-
3790201-047A2-00 WASHER, PLATEWASHER, PLATE
-
3890183-04039-00 NUT, SPRINGNUT, SPRING
-
391ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
405JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
4190464-13073-00 CLAMPCLAMP
-
4290464-13073-00 CLAMPCLAMP
-
4390465-13M11-00 CLAMPCLAMP
-
4490464-16061-00 CLAMPCLAMP
-
4590464-16061-00 CLAMPCLAMP
-
4690464-13077-00 CLAMPCLAMP
-
4790464-13073-00 CLAMPCLAMP
-
4890464-13073-00 CLAMPCLAMP
-
4990465-13M11-00 CLAMPCLAMP
-
5090464-13073-00 CLAMPCLAMP
-
5190464-13077-00 CLAMPCLAMP
-
5290464-13077-00 CLAMPCLAMP
-
5390464-12009-00 CLAMPCLAMP
-
5490464-36004-00 CLAMPCLAMP
-
5590445-107A5-00 HOSE (L30)HOSE (L30)
-
5690464-21256-00 CLAMPCLAMP
-
5790465-10098-00 CLAMPCLAMP
-
5890465-10098-00 CLAMPCLAMP
-
5990464-59001-00 CLAMPCLAMP
-
6090464-12089-00 CLAMPCLAMP
-
6190464-14003-00 CLAMPCLAMP
-
6214B-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
6314B-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
6490480-12607-00 GROMMETGROMMET
-
6590387-06M16-00 COLLARCOLLAR
-
6690159-06150-00 SCREW, WITH WASHERSCREW, WITH WASHER
