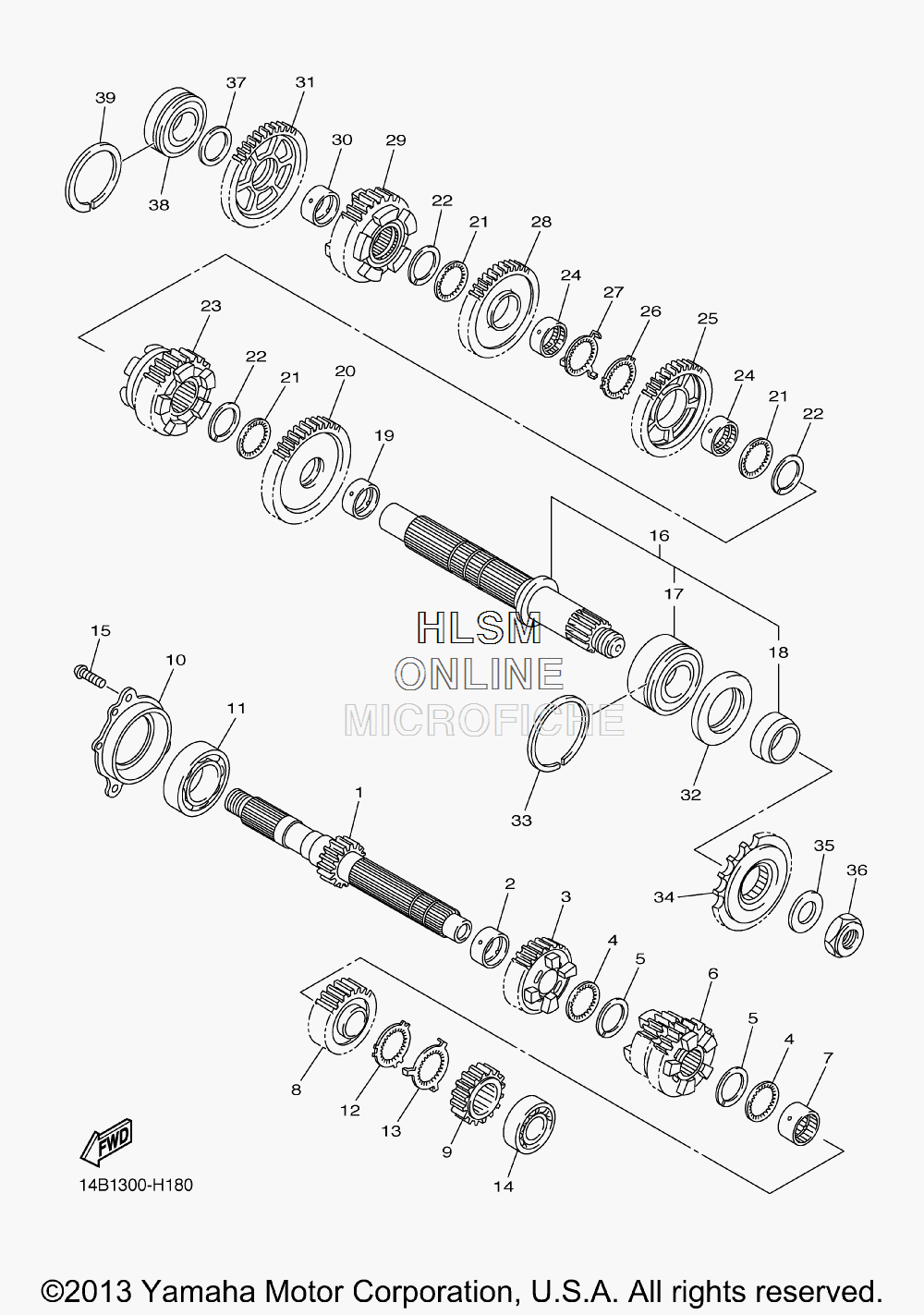

TRANSMISSION для Yamaha YZFR1 - 2014 года выпуска
-
№АртикулНазвание
-
114B-17411-00-00 AXLE, MAIN (15T)AXLE, MAIN (15T)
-
290387-28003-00 COLLARCOLLAR
-
34C8-17151-00-00 GEAR, 5TH PINION (22T)GEAR, 5TH PINION (22T)
-
490209-25011-00 WASHERWASHER
-
593440-28184-00 CIRCLIPCIRCLIP
-
61KB-17131-00-00 GEAR, 3RD PINION (21/23T)GEAR, 3RD PINION (21/23T)
-
790387-25023-00 COLLARCOLLAR
-
81KB-17161-00-00 GEAR, 6TH PINION (26T)GEAR, 6TH PINION (26T)
-
92D1-17121-10-00 GEAR, 2ND PINION (16T)GEAR, 2ND PINION (16T)
-
1014B-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
1193306-20652-00 BEARINGBEARING
-
1290214-25004-00 WASHER, CLAWWASHER, CLAW
-
1390214-25003-00 WASHER, CLAWWASHER, CLAW
-
1493306-27209-00 BEARINGBEARING
-
1590149-06082-00 SCREWSCREW
-
161KB-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
1793305-20605-00 ...BEARING...BEARING
-
1890387-30012-00 ...COLLAR...COLLAR
-
1990387-31003-00 COLLARCOLLAR
-
2014B-17221-00-00 GEAR, 2ND WHEEL (33T)GEAR, 2ND WHEEL (33T)
-
2190209-28008-00 WASHERWASHER
-
2293440-31187-00 CIRCLIPCIRCLIP
-
2314B-17261-00-00 GEAR, 6TH WHEEL (33T)GEAR, 6TH WHEEL (33T)
-
2490387-28004-00 COLLARCOLLAR
-
2514B-17241-00-00 GEAR, 4TH WHEEL (35T)GEAR, 4TH WHEEL (35T)
-
2690214-29002-00 WASHER, CLAWWASHER, CLAW
-
2790214-28002-00 WASHER, CLAWWASHER, CLAW
-
2814B-17231-00-00 GEAR, 3RD WHEEL (37T)GEAR, 3RD WHEEL (37T)
-
2914B-17251-00-00 GEAR, 5TH WHEEL (30T)GEAR, 5TH WHEEL (30T)
-
3090387-25008-00 COLLARCOLLAR
-
315VY-17211-00-00 GEAR, 1ST WHEEL (38T)GEAR, 1ST WHEEL (38T)
-
3293102-40330-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
3393440-62032-00 CIRCLIPCIRCLIP
-
343C3-17460-00-00 SPROCKET, DRIVE (17T)SPROCKET, DRIVE (17T)
-
3590201-22015-00 WASHER, PLATEWASHER, PLATE
-
3690179-22019-00 NUTNUT
-
3790201-257H0-00 WASHER, PLATEWASHER, PLATE
-
3893306-205A2-00 BEARINGBEARING
-
3993440-52009-00 CIRCLIPCIRCLIP
