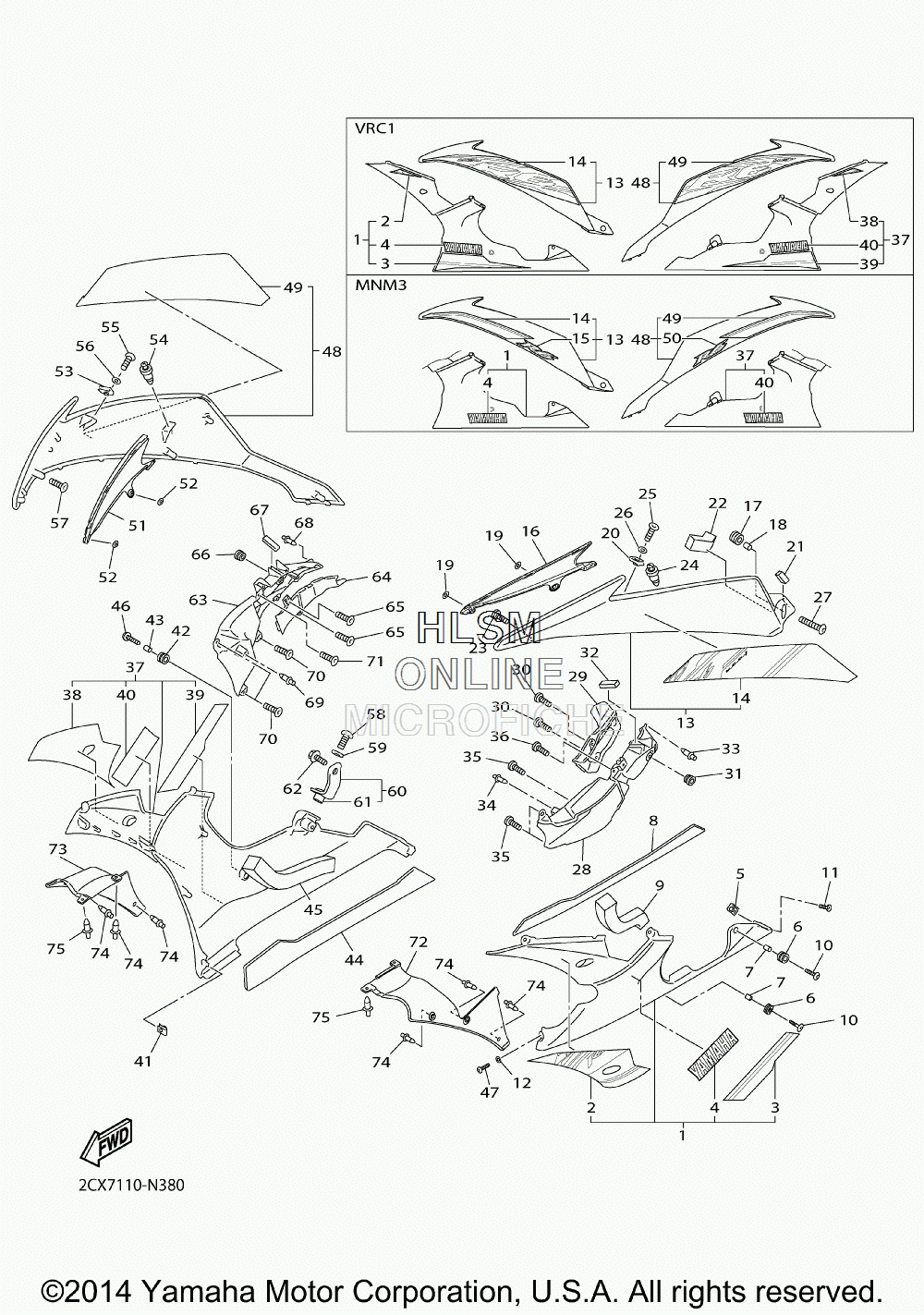

COWLING 2 для Yamaha YZFR6 - 2014 года выпуска
-
№АртикулНазвание
-
113S-W2838-M0-P4 UNDER COVER COMP. 1 FOR DPBMCUNDER COVER COMP. 1 FOR DPBMC
-
113S-W2838-N0-P1 UNDER COVER COMP. 1 SMX FOR VRC1UNDER COVER COMP. 1 SMX FOR VRC1
-
113S-W2838-E0-P0 UNDER COVER COMP. 1 MBL2 FOR MNM3UNDER COVER COMP. 1 MBL2 FOR MNM3
-
22CX-283A1-00-00 ......GRAPHIC, UNDER COVER 1 FOR DPBMC......GRAPHIC, UNDER COVER 1 FOR DPBMC
-
22CX-283A1-10-00 ......GRAPHIC, UNDER COVER 1 FOR VRC1......GRAPHIC, UNDER COVER 1 FOR VRC1
-
32CX-283A3-00-00 ......GRAPHIC, UNDER COVER 3 FOR DPBMC......GRAPHIC, UNDER COVER 3 FOR DPBMC
-
32CX-283A3-10-00 ......GRAPHIC, UNDER COVER 3 FOR VRC1......GRAPHIC, UNDER COVER 3 FOR VRC1
-
499241-00200-00 ......EMBLEM, YAMAHA FOR DPBMC......EMBLEM, YAMAHA FOR DPBMC
-
499241-00200-00 ......EMBLEM, YAMAHA FOR VRC1......EMBLEM, YAMAHA FOR VRC1
-
499247-00240-00 ......EMBLEM, YAMAHA FOR MNM3......EMBLEM, YAMAHA FOR MNM3
-
590183-05076-00 NUT, SPRINGNUT, SPRING
-
690480-14003-00 GROMMETGROMMET
-
790387-06260-00 COLLARCOLLAR
-
813S-2838G-00-00 SEAT 1SEAT 1
-
990520-50002-00 DAMPER, PLATEDAMPER, PLATE
-
1090111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1190110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290202-05180-00 WASHER, PLATEWASHER, PLATE
-
1313S-W283U-L0-P0 PANEL ASSY 1 FOR DPBMCPANEL ASSY 1 FOR DPBMC
-
1313S-W283U-J0-P1 PANEL ASSY 1 FOR VRC1PANEL ASSY 1 FOR VRC1
-
1313S-W283U-K0-PA PANEL ASSY 1 FOR MNM3PANEL ASSY 1 FOR MNM3
-
142CX-28391-10-00 ......GRAPHIC 1 FOR DPBMC......GRAPHIC 1 FOR DPBMC
-
142CX-28391-20-00 ......GRAPHIC 1 FOR VRC1......GRAPHIC 1 FOR VRC1
-
142CX-28391-30-00 ......GRAPHIC 1 FOR MNM3......GRAPHIC 1 FOR MNM3
-
151JS-2839B-11-00 ......EMBLEM 3D FOR MNM3......EMBLEM 3D FOR MNM3
-
1613S-28219-00-00 COVER 1COVER 1
-
1790480-14003-00 GROMMETGROMMET
-
1890387-06260-00 COLLARCOLLAR
-
1990183-05M02-00 NUT, SPRINGNUT, SPRING
-
2090183-05076-00 NUT, SPRINGNUT, SPRING
-
2113S-28415-00-00 DAMPER 1DAMPER 1
-
2290520-50001-00 DAMPER, PLATEDAMPER, PLATE
-
2397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2490269-07007-00 RIVETRIVET
-
2590110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2690202-05180-00 WASHER, PLATEWASHER, PLATE
-
2790111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2813S-2137U-00-00 GUIDE, AIR 1GUIDE, AIR 1
-
2913S-2137K-00-00 GUIDE, AIR 3GUIDE, AIR 3
-
3097702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
3190480-01558-00 GROMMETGROMMET
-
3213S-28217-00-00 DAMPER 1DAMPER 1
-
3390269-06008-00 RIVETRIVET
-
3490269-06081-00 RIVETRIVET
-
3597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3697702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
3713S-W2839-M0-P4 UNDER COVER COMP. 2 FOR DPBMCUNDER COVER COMP. 2 FOR DPBMC
-
3713S-W2839-N0-P1 UNDER COVER COMP. 2 SMX FOR VRC1UNDER COVER COMP. 2 SMX FOR VRC1
-
3713S-W2839-E0-P0 UNDER COVER COMP. 2 MBL2 FOR MNM3UNDER COVER COMP. 2 MBL2 FOR MNM3
-
382CX-283A2-00-00 ......GRAPHIC, UNDER COVER 2 FOR DPBMC......GRAPHIC, UNDER COVER 2 FOR DPBMC
-
382CX-283A2-10-00 ......GRAPHIC, UNDER COVER 2 FOR VRC1......GRAPHIC, UNDER COVER 2 FOR VRC1
-
392CX-283A4-00-00 ......GRAPHIC, UNDER COVER 4 FOR DPBMC......GRAPHIC, UNDER COVER 4 FOR DPBMC
-
392CX-283A4-10-00 ......GRAPHIC, UNDER COVER 4 FOR VRC1......GRAPHIC, UNDER COVER 4 FOR VRC1
-
4099241-00200-00 ......EMBLEM, YAMAHA FOR DPBMC......EMBLEM, YAMAHA FOR DPBMC
-
4099241-00200-00 ......EMBLEM, YAMAHA FOR VRC1......EMBLEM, YAMAHA FOR VRC1
-
4099247-00240-00 ......EMBLEM, YAMAHA FOR MNM3......EMBLEM, YAMAHA FOR MNM3
-
4190183-05076-00 NUT, SPRINGNUT, SPRING
-
4290480-14003-00 GROMMETGROMMET
-
4390387-06260-00 COLLARCOLLAR
-
4413S-2848K-00-00 SEAT 2SEAT 2
-
4513S-2847R-00-00 DAMPER 10DAMPER 10
-
4690111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4790110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4813S-W283V-L0-P0 PANEL ASSY 2 FOR DPBMCPANEL ASSY 2 FOR DPBMC
-
4813S-W283V-J0-P1 PANEL ASSY 2 FOR VRC1PANEL ASSY 2 FOR VRC1
-
4813S-W283V-K0-PA PANEL ASSY 2 FOR MNM3PANEL ASSY 2 FOR MNM3
-
492CX-28392-10-00 ......GRAPHIC 2 FOR DPBMC......GRAPHIC 2 FOR DPBMC
-
492CX-28392-20-00 ......GRAPHIC 2 FOR VRC1......GRAPHIC 2 FOR VRC1
-
492CX-28392-30-00 ......GRAPHIC 2 FOR MNM3......GRAPHIC 2 FOR MNM3
-
501JS-2839B-11-00 ......EMBLEM 3D FOR MNM3......EMBLEM 3D FOR MNM3
-
5113S-28229-00-00 COVER 2COVER 2
-
5290183-05M02-00 NUT, SPRINGNUT, SPRING
-
5390183-05076-00 NUT, SPRINGNUT, SPRING
-
5490269-07007-00 RIVETRIVET
-
5590110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5690202-05180-00 WASHER, PLATEWASHER, PLATE
-
5797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5890109-06207-00 BOLTBOLT
-
5990202-10024-00 WASHER, PLATEWASHER, PLATE
-
6013S-2836G-00-00 BRACKET 4BRACKET 4
-
6190179-06059-00 ...NUT...NUT
-
6290105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
6313S-2137V-00-00 GUIDE, AIR 2GUIDE, AIR 2
-
6413S-2137L-00-00 GUIDE, AIR 4GUIDE, AIR 4
-
6597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
6690480-01558-00 GROMMETGROMMET
-
6713S-28217-00-00 DAMPER 1DAMPER 1
-
6890269-06008-00 RIVETRIVET
-
6990269-06081-00 RIVETRIVET
-
7097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
7197702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
7213S-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
7313S-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
7490269-06008-00 RIVETRIVET
-
7590269-06002-00 RIVETRIVET
