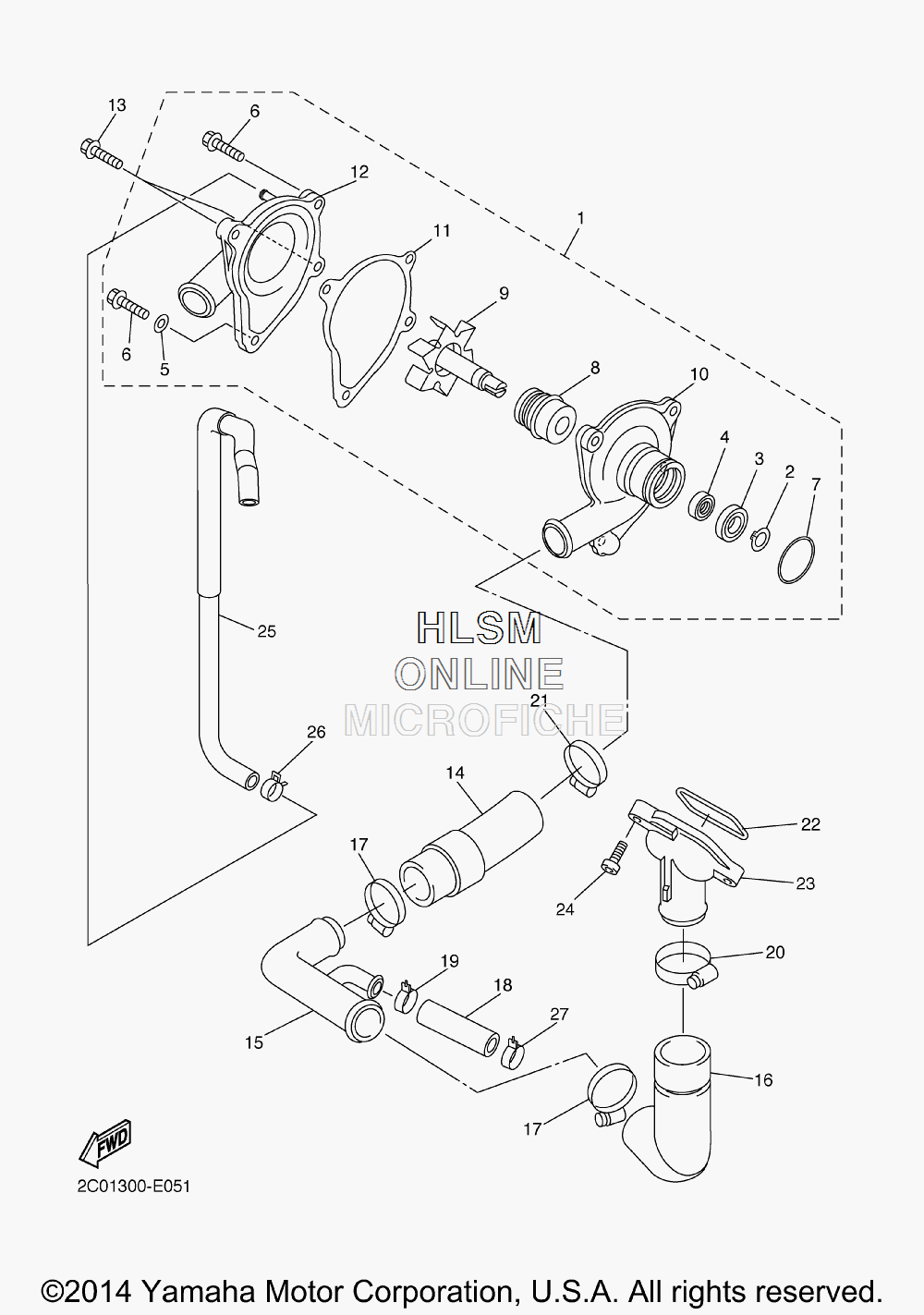

WATER PUMP для Yamaha YZFR6 - 2014 года выпуска
-
№АртикулНазвание
-
12C0-12420-00-00 WATER PUMP ASSYWATER PUMP ASSY
-
299009-10400-00 ...CIRCLIP...CIRCLIP
-
393306-00006-00 ...BEARING...BEARING
-
493101-10090-00 ...OIL SEAL S-TYPE...OIL SEAL S-TYPE
-
590430-06014-00 ...GASKET...GASKET
-
695024-06025-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
793210-33133-00 ...O-RING...O-RING
-
82C0-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
92C0-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
102C0-12421-00-00 ...HOUSING, WATER PUMP...HOUSING, WATER PUMP
-
112C0-12428-01-00 ...GASKET, HOUSING COVER 2...GASKET, HOUSING COVER 2
-
122C0-W1242-00-00 ...COVER, HOUSING...COVER, HOUSING
-
1390110-06140-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
142C0-12576-00-00 HOSE 1HOSE 1
-
152C0-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
162C0-12577-00-00 HOSE 2HOSE 2
-
1790450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
182C0-12588-00-00 HOSE 5HOSE 5
-
1990467-200A0-00 CLIPCLIP
-
2090450-38003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2190450-32001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2293210-46001-00 O-RINGO-RING
-
235EB-12469-00-00 JOINT 1JOINT 1
-
2490105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
252C0-1243A-00-00 HOSE 1HOSE 1
-
2690467-11090-00 CLIPCLIP
-
2790467-200A0-00 CLIPCLIP
