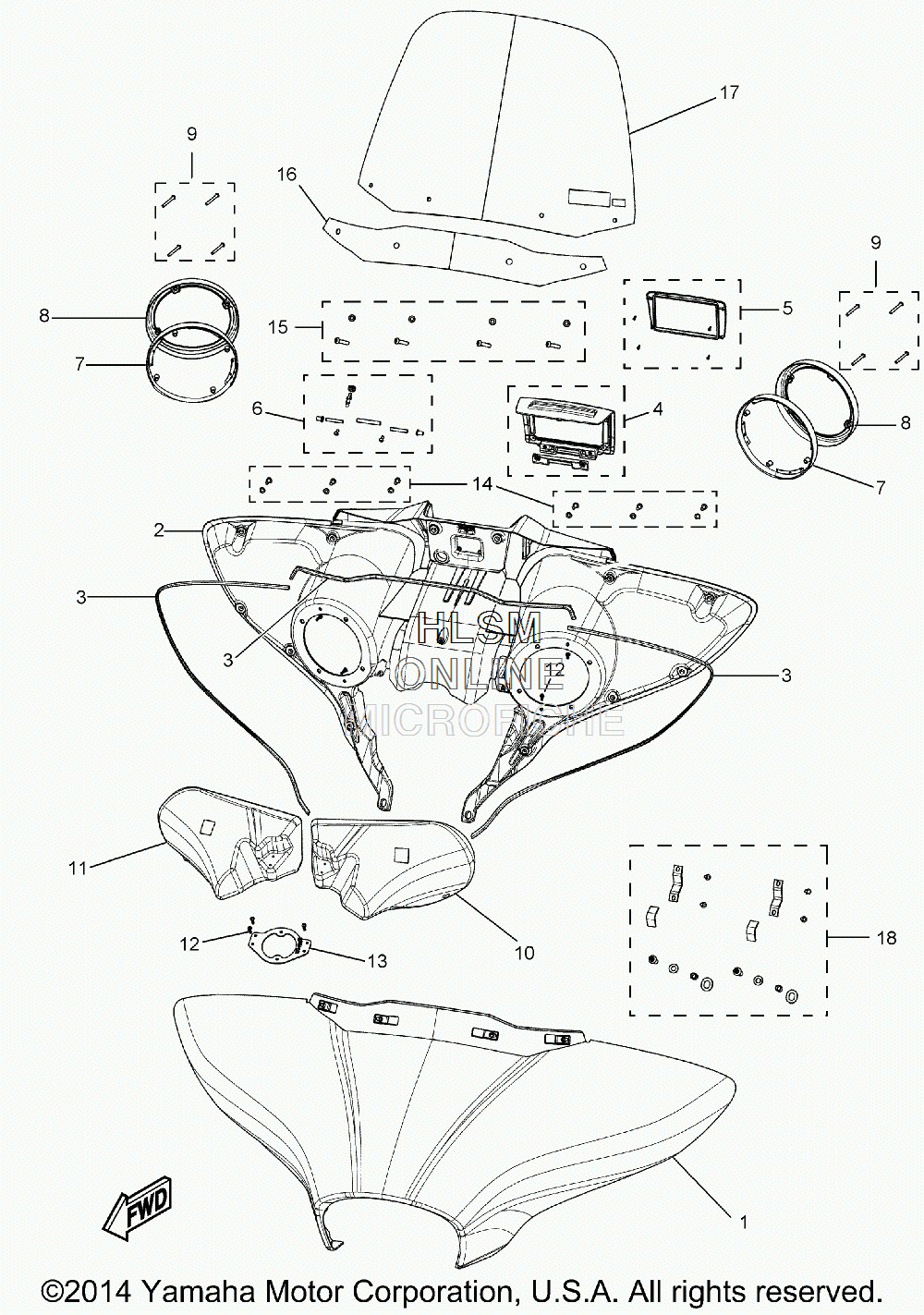

COWLING для Yamaha V STAR 1300 DELUXE (BLACK METALLIC) - 2015 года выпуска
-
№АртикулНазвание
-
12CA-F8330-T0-00 UPPER COWLING, 1 (RAVEN)UPPER COWLING, 1 (RAVEN)
-
22CA-F8340-V0-00 UPPER COWLING ASSY, 2UPPER COWLING ASSY, 2
-
32CA-F8376-V0-00 TRIM, COWLING (TRIM TO SIZE)TRIM, COWLING (TRIM TO SIZE)
-
42CA-F843F-V0-00 COVER ASSYCOVER ASSY
-
52CA-F843D-V0-00 COVER, ASSY 2COVER, ASSY 2
-
62CA-F842X-V0-00 HARDWARE KIT, FSTORAGE BOXHARDWARE KIT, FSTORAGE BOX
-
72C5-H8163-V0-00 GRILLE, SPEAKER 1GRILLE, SPEAKER 1
-
82C5-F8365-V0-00 COVERCOVER
-
990111-04804-00 BOLT, HEXAGON SOCKET BUTTON (~04804)BOLT, HEXAGON SOCKET BUTTON (~04804)
-
102CA-H8160-V0-00 SPEAKER ASSY, 1SPEAKER ASSY, 1
-
112CA-H8170-V0-00 SPEAKER ASSY, 2SPEAKER ASSY, 2
-
122CA-F8382-T0-00 SCREW, SPECIALSCREW, SPECIAL
-
132CA-H8144-V0-00 BRACKET, ANTENNABRACKET, ANTENNA
-
142CA-F83L2-T0-00 HARDWARE KIT, W/S MOUNT (12 SCREWS AND WASHERS)HARDWARE KIT, W/S MOUNT (12 SCREWS AND WASHERS)
-
152CA-F585H-R0-00 SCREW SETSCREW SET
-
162CA-F28A0-V0-00 COVER ASSY, 1COVER ASSY, 1
-
172CA-F8380-M0-00 WINDSCREEN ASSYWINDSCREEN ASSY
-
182CA-F83L2-V0-00 HARDWARE KIT, WS MOUNTHARDWARE KIT, WS MOUNT
