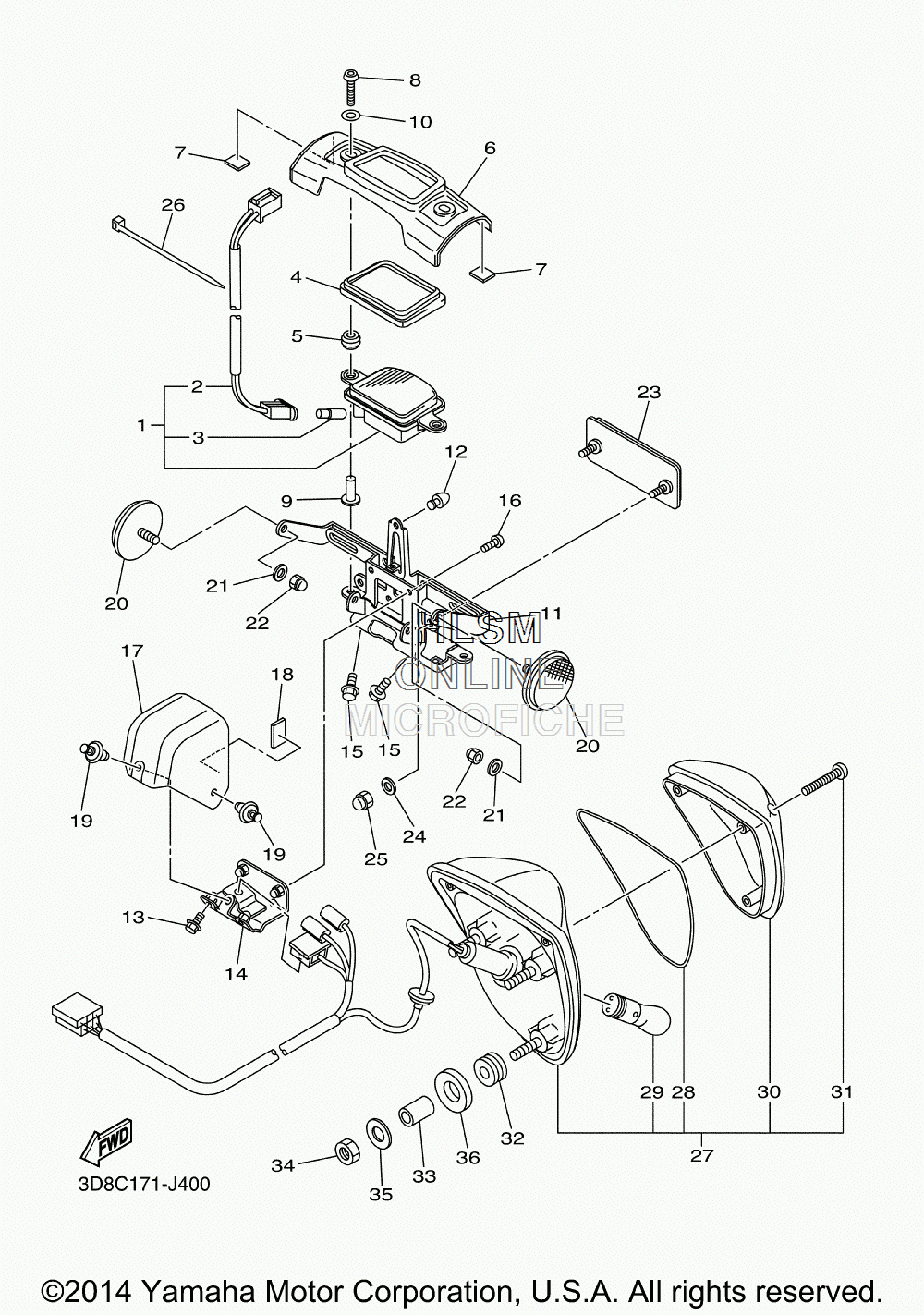

TAILLIGHT для Yamaha V STAR 1300 DELUXE (BLACK METALLIC) - 2015 года выпуска
-
№АртикулНазвание
-
13D8-84745-10-00 LICENCE LIGHT UNIT ASSYLICENCE LIGHT UNIT ASSY
-
23D8-8473E-10-00 ...SOCKET CORD ASSY 2...SOCKET CORD ASSY 2
-
35VN-84744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
43D8-84753-00-00 DAMPERDAMPER
-
590480-13459-00 GROMMETGROMMET
-
63D8-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
73D8-21652-00-00 PROTECTORPROTECTOR
-
890111-06077-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
990387-06165-00 COLLARCOLLAR
-
1090201-06091-00 WASHER, PLATEWASHER, PLATE
-
113D8-84551-00-00 BRACKET, LICENCEBRACKET, LICENCE
-
1242U-21639-00-00 DAMPER 2DAMPER 2
-
1395802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
143D8-84758-10-00 STAY, LICENCE BRACKETSTAY, LICENCE BRACKET
-
1595802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1692017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
173D8-2163F-01-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
-
1851Y-21639-00-00 DAMPER 2DAMPER 2
-
1990269-07077-00 RIVETRIVET
-
20449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
2190201-051K1-00 WASHER, PLATEWASHER, PLATE
-
2290176-05004-00 NUT, CROWNNUT, CROWN
-
231FK-85130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2490201-051K1-00 WASHER, PLATEWASHER, PLATE
-
2590176-05004-00 NUT, CROWNNUT, CROWN
-
265Y9-12491-00-00 CLAMP 1CLAMP 1
-
273D8-84700-10-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
283D8-84723-00-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
291A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
303D8-84721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
313D8-84726-00-00 ...SCREW...SCREW
-
3290480-14004-00 GROMMETGROMMET
-
3390387-07020-00 COLLARCOLLAR
-
3495302-06600-00 NUTNUT
-
3590201-06086-00 WASHER, PLATEWASHER, PLATE
-
365BN-84553-00-00 DAMPERDAMPER
