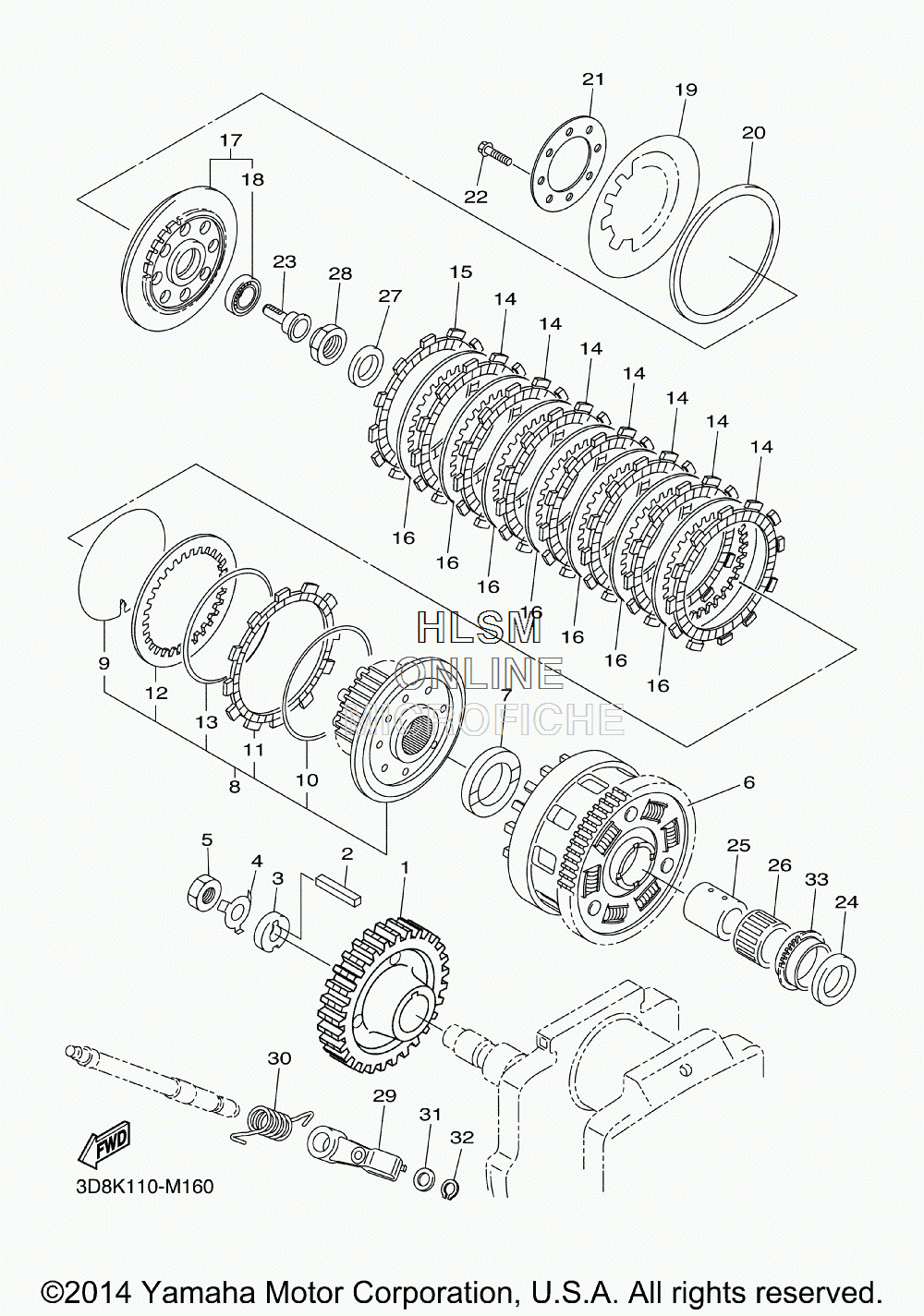

CLUTCH для Yamaha V STAR 133 TOURER - 2015 года выпуска
-
№АртикулНазвание
-
13D8-16111-10-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
290282-10001-00 KEY, STRAIGHTKEY, STRAIGHT
-
33D8-16181-10-00 SPACER 1SPACER 1
-
490215-18003-00 WASHER, LOCKWASHER, LOCK
-
590170-18008-00 NUTNUT
-
63D8-16150-20-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
75YU-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
83D8-16370-00-00 CLUTCH BOSS ASSYCLUTCH BOSS ASSY
-
92H7-16385-00-00 ...RING SET...RING SET
-
1036Y-16384-00-00 ...PLATE, SEAT...PLATE, SEAT
-
114XV-16331-00-00 ...PLATE, FRICTION 2...PLATE, FRICTION 2
-
122H7-16325-00-00 ...PLATE, CLUTCH 2...PLATE, CLUTCH 2
-
1336Y-16383-00-00 ......SPRING, CUSHION......SPRING, CUSHION
-
145JW-16321-10-00 PLATE, FRICTIONPLATE, FRICTION
-
15341-16321-20-00 PLATE, FRICTIONPLATE, FRICTION
-
162H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
173D8-16350-00-00 PRESSURE PLATE ASSYPRESSURE PLATE ASSY
-
1893306-00304-00 ...BEARING...BEARING
-
191TX-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
2036Y-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
211TX-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
2295812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
234XV-16356-01-00 ROD, PUSH 1ROD, PUSH 1
-
243D8-16164-10-00 PLATE, THRUST 2PLATE, THRUST 2
-
2590387-26006-00 COLLARCOLLAR
-
2693310-33560-00 BEARINGBEARING
-
2790208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2890179-20007-00 NUTNUT
-
293D8-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
3090508-18040-00 SPRING, TORSIONSPRING, TORSION
-
3190201-10029-00 WASHER, PLATEWASHER, PLATE
-
3299009-10400-00 CIRCLIPCIRCLIP
-
333D8-13354-10-00 SPROCKET, DRIVESPROCKET, DRIVE
