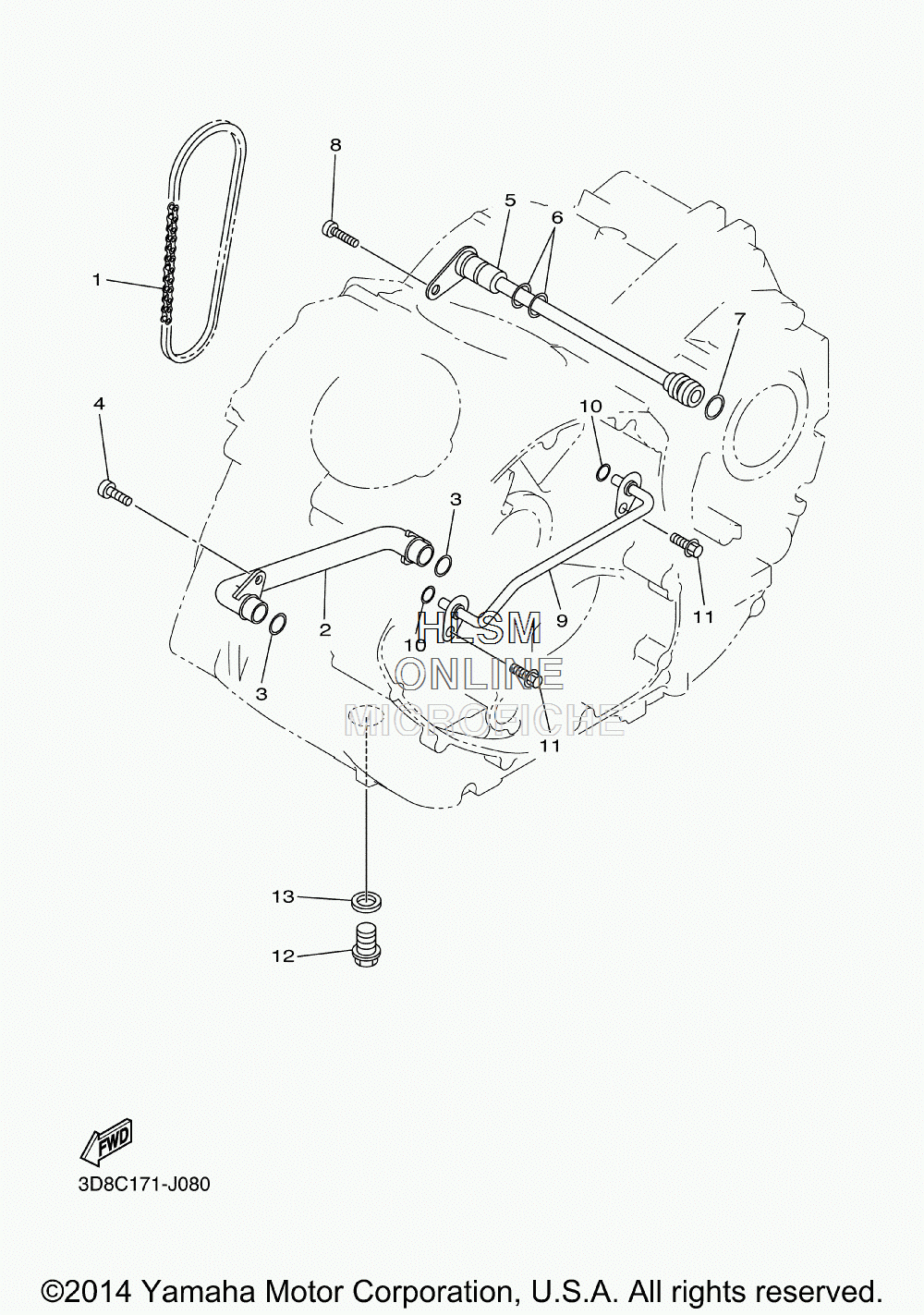

OIL PUMP для Yamaha V STAR 133 TOURER - 2015 года выпуска
-
№АртикулНазвание
-
194580-25062-00 CHAIN (DID25 62L)CHAIN (DID25 62L)
-
23D8-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
393210-14003-00 O-RINGO-RING
-
490110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
53D8-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
693210-09165-00 O-RINGO-RING
-
793210-06564-00 O-RINGO-RING
-
890110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
93D8-13181-00-00 PIPE, DELIVERY 3PIPE, DELIVERY 3
-
1093210-06667-00 O-RINGO-RING
-
1190105-06078-00 BOLT, FLANGEBOLT, FLANGE
-
1290340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
13214-11198-01-00 GASKETGASKET
