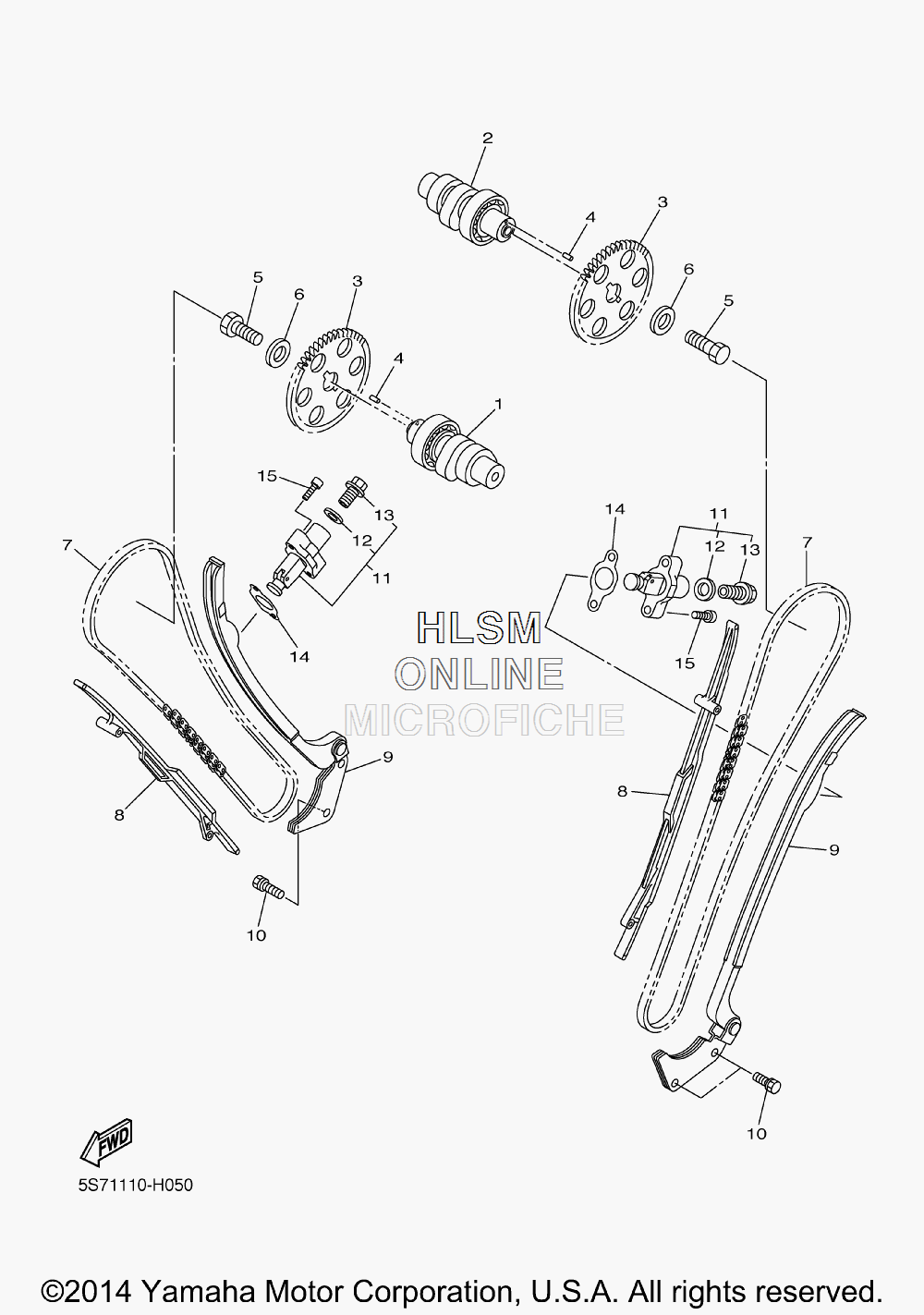

CAMSHAFT W/ CHAIN для Yamaha V STAR 950 TOURER - 2015 года выпуска
-
№АртикулНазвание
-
15S7-12170-10-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
25S7-12180-10-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
35S7-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
493604-12037-00 PIN, DOWELPIN, DOWEL
-
590101-10016-00 BOLTBOLT
-
690201-10591-00 WASHER, PLATEWASHER, PLATE
-
794591-59132-00 CHAINCHAIN
-
85S7-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
93D8-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1090119-06173-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1131G-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
1231G-12214-00-00 ...GASKET...GASKET
-
1331G-12222-00-00 ...PLUG...PLUG
-
143GD-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1591314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
