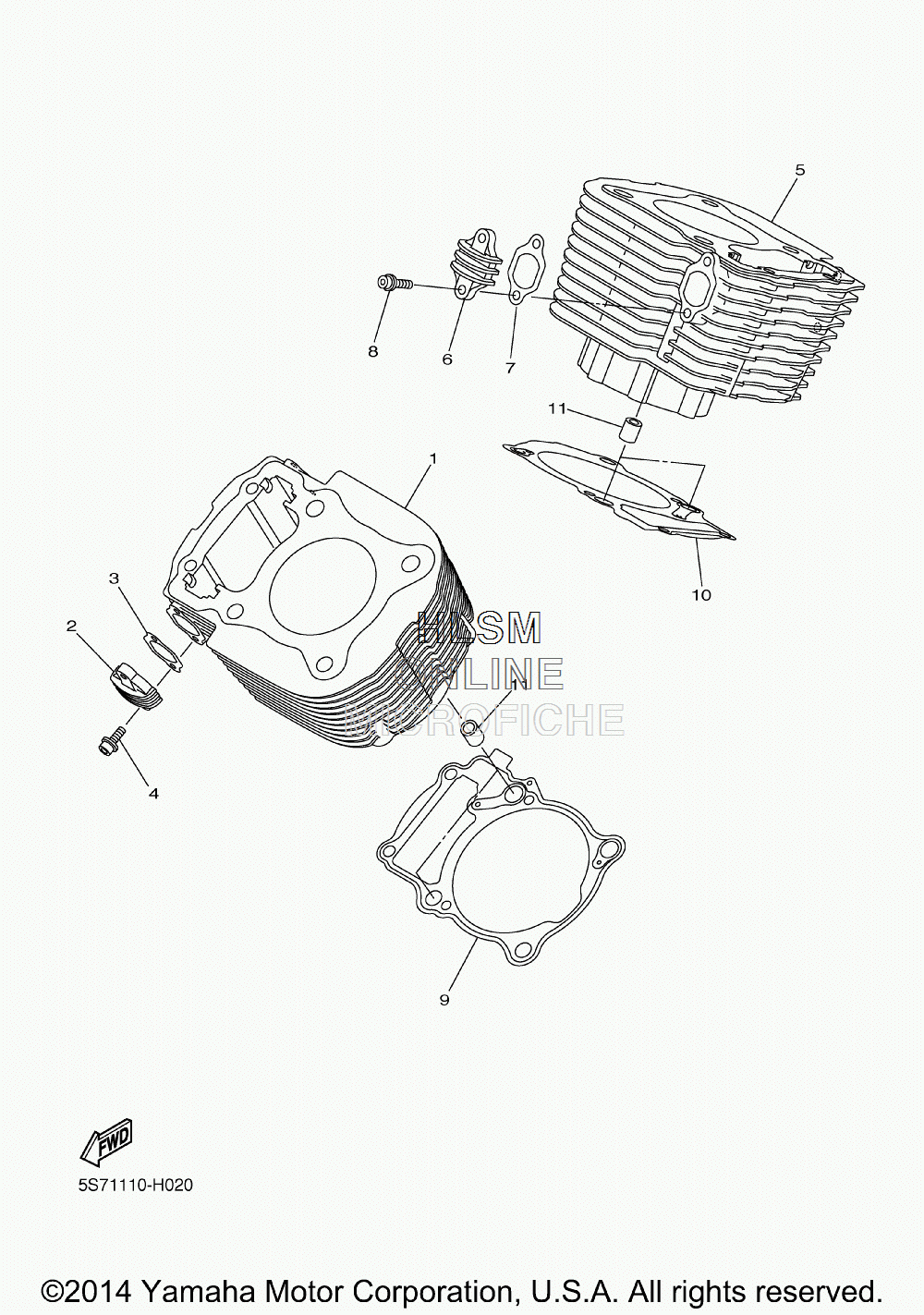

CYLINDER для Yamaha V STAR 950 TOURER - 2015 года выпуска
-
№АртикулНазвание
-
11TP-11311-00-00 CYLINDER 1CYLINDER 1
-
25S7-12215-00-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
35S7-12214-00-00 GASKETGASKET
-
490109-06015-00 BOLTBOLT
-
51TP-11311-00-00 CYLINDER 1CYLINDER 1
-
65S7-12215-00-00 CAP, TENSIONER CASECAP, TENSIONER CASE
-
75S7-12214-00-00 GASKETGASKET
-
890109-06015-00 BOLTBOLT
-
95S7-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
105S7-11352-00-00 GASKET, CYLINDER 2GASKET, CYLINDER 2
-
1199530-08016-00 PIN, DOWELPIN, DOWEL
