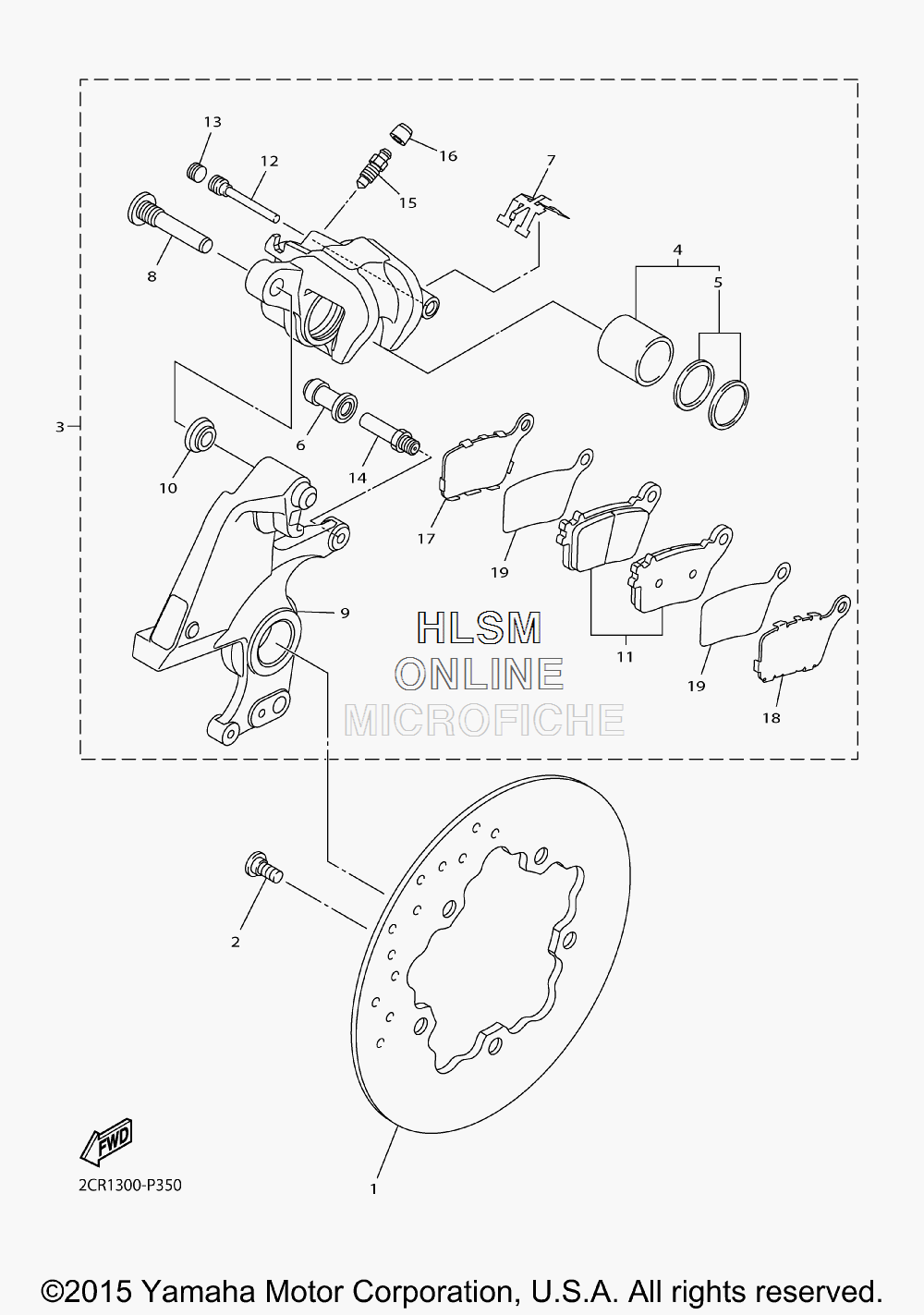

BRAKE - REAR CALIPER для Yamaha YZF-R1M - 2015 года выпуска
-
№АртикулНазвание
-
12CR-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290149-08009-00 SCREWSCREW
-
32CR-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
42CR-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53JD-25803-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
61UY-25937-51-00 ...BOOT 2...BOOT 2
-
72CR-25919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
85DH-25914-50-00 ...PIN, SLIDE...PIN, SLIDE
-
92CR-25921-50-00 ...BRACKET, SUPPORT...BRACKET, SUPPORT
-
103JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
112CR-25806-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
122CR-25924-00-00 ...PIN, PAD...PIN, PAD
-
135DH-25916-50-00 ...PLUG...PLUG
-
143SP-25914-51-00 ...PIN, SLIDE...PIN, SLIDE
-
158CR-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
162CR-25825-00-00 ...CAP...CAP
-
172CR-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
182CR-25827-10-00 ...SHIM, CALIPER...SHIM, CALIPER
-
192CR-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
