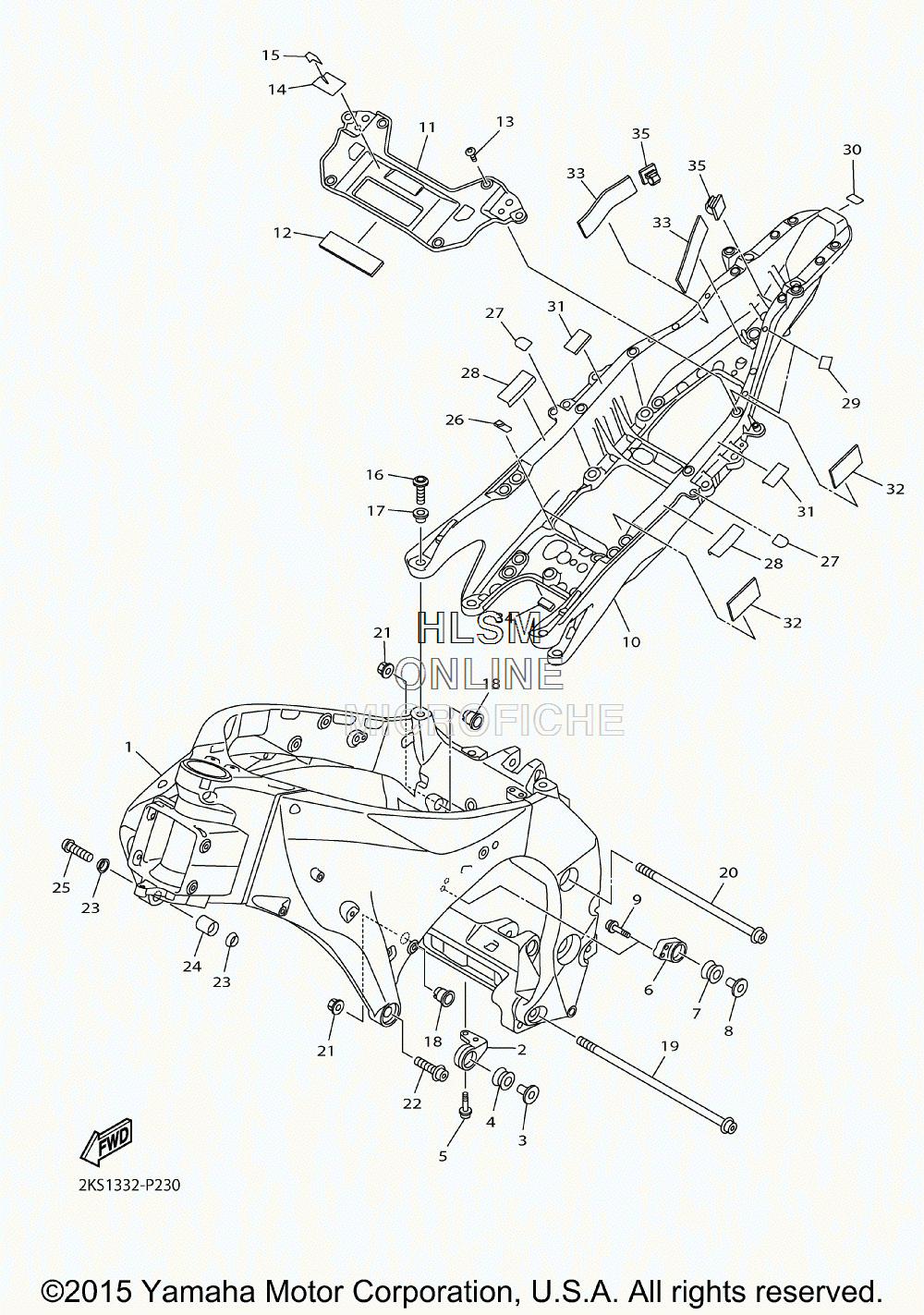

FRAME для Yamaha YZF-R1M - 2015 года выпуска
-
№АртикулНазвание
-
12CR-21110-00-00 FRAME COMP.FRAME COMP.
-
22CR-21435-00-00 BRACKET, MUFFLER 1BRACKET, MUFFLER 1
-
390387-08021-00 COLLARCOLLAR
-
45VY-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
590110-06248-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
62CR-21436-00-00 BRRACKET, MUFFLER 2BRRACKET, MUFFLER 2
-
75VY-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
890387-08021-00 COLLARCOLLAR
-
991312-06016-00 BOLTBOLT
-
102CR-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
112CR-21214-00-00 REINF., FRAME REARREINF., FRAME REAR
-
1290520-06007-00 DAMPER, PLATEDAMPER, PLATE
-
1390111-06155-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
142CR-22877-00-00 SEAL, 5SEAL, 5
-
152CR-22878-00-00 SEAL 6SEAL 6
-
1690149-10002-00 SCREWSCREW
-
172CR-21116-00-00 COLLARCOLLAR
-
185YU-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1990110-12010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090110-12008-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2190179-12004-00 NUTNUT
-
2290110-12007-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2314B-21414-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
2414B-21424-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
2590111-12003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
267TG-2214F-00-00 DAMPER 1DAMPER 1
-
272CR-22873-00-00 SEAL 1SEAL 1
-
282CR-22874-00-00 SEAL 2SEAL 2
-
292CR-22875-00-00 SEAL 3SEAL 3
-
305SL-21268-00-00 SEALSEAL
-
312CR-22876-00-00 SEAL 4SEAL 4
-
325JW-2164K-00-00 PATCH 5PATCH 5
-
335TH-21268-01-00 SEALSEAL
-
3413S-28415-00-00 DAMPER 1DAMPER 1
-
3590464-13004-00 CLAMPCLAMP
