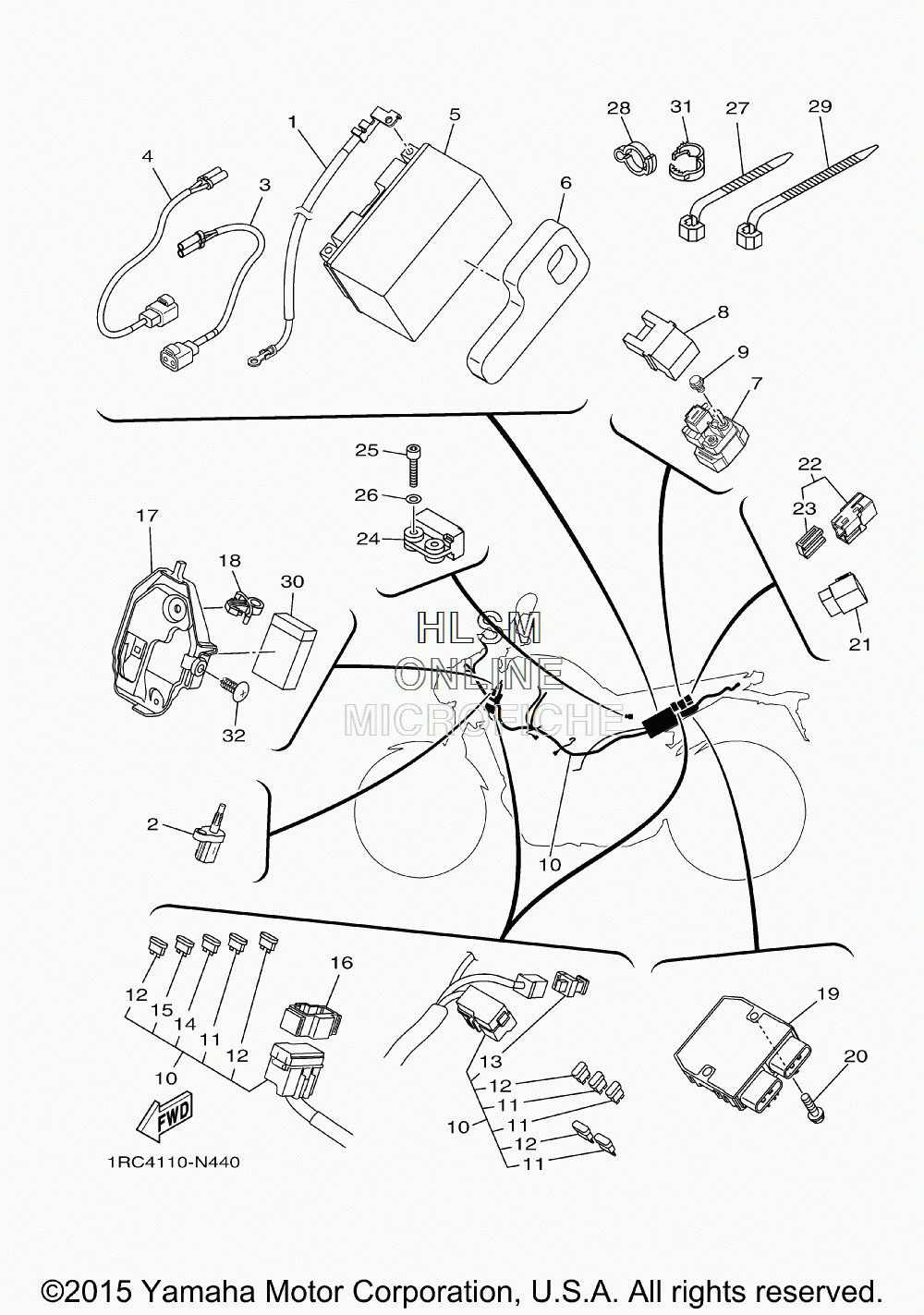

ELECTRICAL для Yamaha FZ-09 [FZ09GB] - 2016 года выпуска
-
№АртикулНазвание
-
11RC-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
25YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
31RC-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
41RC-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
55VY-82100-00-00 BATTERY ASSY (YUASA YTZ10S)BATTERY ASSY (YUASA YTZ10S)
-
61RC-8246K-00-00 SPACERSPACER
-
71RC-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
85SL-82119-30-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
995022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
101RC-82590-11-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
115JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
125JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
135JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
145JJ-82151-80-00 ...FUSE (2A-BL)...FUSE (2A-BL)
-
155JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
161RC-82544-00-00 CLAMPCLAMP
-
171RC-82599-00-00 COVER, CONNECTERCOVER, CONNECTER
-
1890464-15157-00 CLAMPCLAMP
-
191D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2095022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
215VK-81950-40-00 RELAY ASSY (5VK-40)RELAY ASSY (5VK-40)
-
221ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
235JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
245PS-82576-01-00 EMERGENCY STOP SWITCHEMERGENCY STOP SWITCH
-
2591312-04020-00 BOLTBOLT
-
2690201-04030-00 WASHER, PLATEWASHER, PLATE
-
2790464-13073-00 CLAMPCLAMP
-
2890464-14010-00 CLAMPCLAMP
-
293MA-82591-00-00 BANDBAND
-
301RC-82589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
3190464-16001-00 CLAMPCLAMP
-
3290269-07015-00 RIVETRIVET
