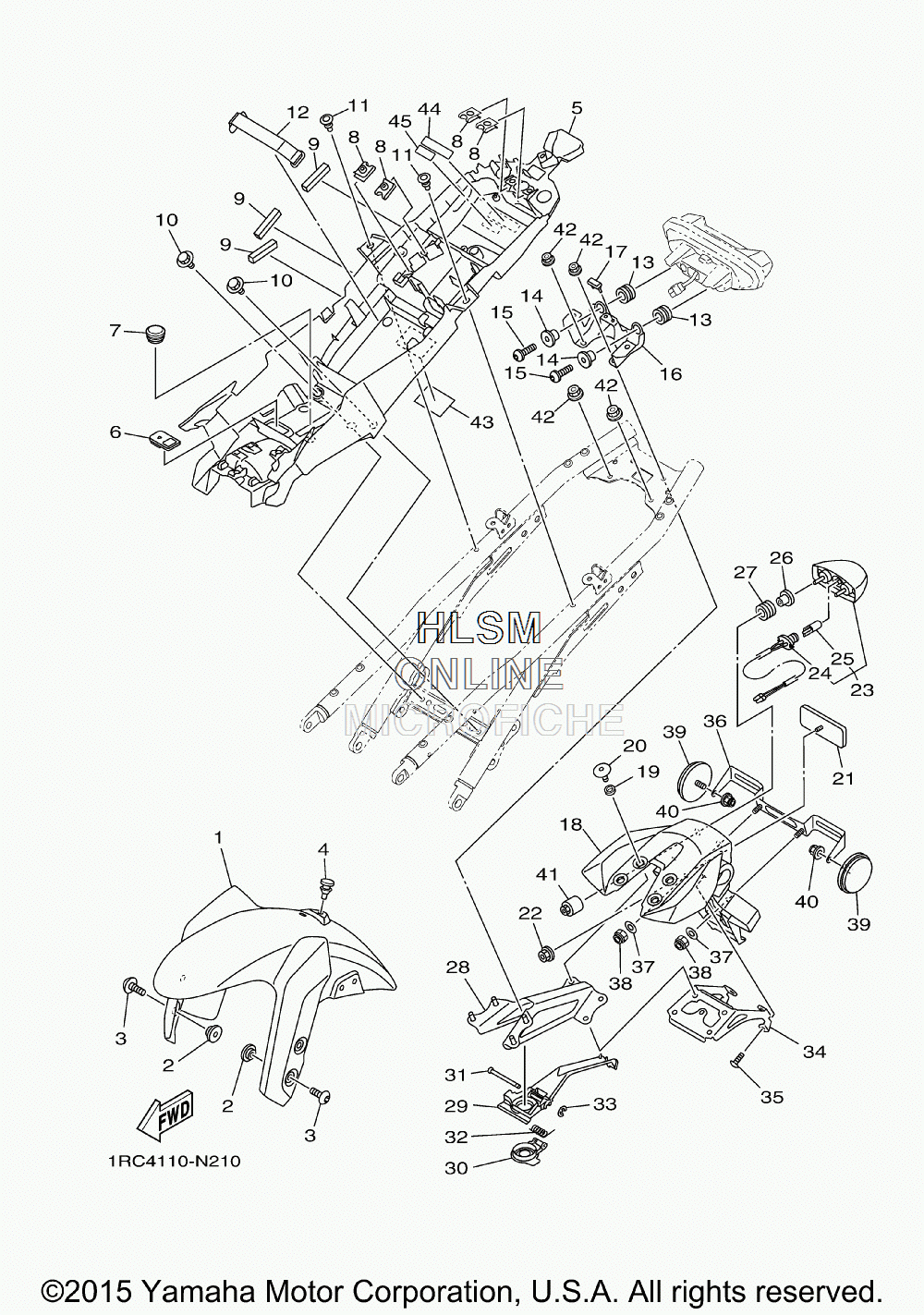

FENDER - FRONT / REAR для Yamaha FZ-09 [FZ09GB] - 2016 года выпуска
-
№АртикулНазвание
-
11RC-21511-00-P6 FENDER, FRONT (FOR SMX)FENDER, FRONT (FOR SMX)
-
11RC-21511-00-P7 FENDER, FRONT (FOR VPBC5)FENDER, FRONT (FOR VPBC5)
-
290387-06153-00 COLLARCOLLAR
-
390110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490480-06M19-00 GROMMETGROMMET
-
51RC-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
61RC-26199-00-00 PLUG, BLINDPLUG, BLIND
-
790480-14100-00 GROMMETGROMMET
-
890183-06069-00 NUT, SPRINGNUT, SPRING
-
95PS-28372-00-00 DAMPERDAMPER
-
1090109-06202-00 BOLTBOLT
-
1190269-07007-00 RIVETRIVET
-
121RC-82137-00-00 BAND, BATTERYBAND, BATTERY
-
1390480-14052-00 GROMMETGROMMET
-
1490387-06288-00 COLLARCOLLAR
-
1592012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
161RC-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
17682-44532-00-00 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
181RC-21629-01-00 GUARD, MUDGUARD, MUD
-
1990387-06372-00 COLLARCOLLAR
-
2090111-06061-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
213Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2295602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
231RC-84740-00-00 LICENSE LIGHT ASSYLICENSE LIGHT ASSY
-
241RC-84547-00-00 ......CORD, LICENSE LIGHT......CORD, LICENSE LIGHT
-
251TP-84347-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
2690387-05042-00 COLLARCOLLAR
-
2790480-11009-00 GROMMETGROMMET
-
281RC-2164F-00-00 STAY 1STAY 1
-
291RC-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
301RC-2465B-00-00 CAP, ROTORCAP, ROTOR
-
3190249-03002-00 PINPIN
-
3290508-09007-00 SPRING, TORSIONSPRING, TORSION
-
3393430-02001-00 CIRCLIP E-TYPECIRCLIP E-TYPE
-
341RC-21682-00-00 STAY, PLATESTAY, PLATE
-
3590160-05012-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
361RC-84751-10-00 BRACKET, LICENSEBRACKET, LICENSE
-
3792902-06600-00 WASHER, PLATEWASHER, PLATE
-
3895607-06100-00 NUT, UNUT, U
-
39449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
4095707-05500-00 NUT, FLANGENUT, FLANGE
-
411RC-2622H-00-00 WEIGHTWEIGHT
-
4295602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4314B-21668-00-00 LABEL, TIRELABEL, TIRE
-
443JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
453TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
