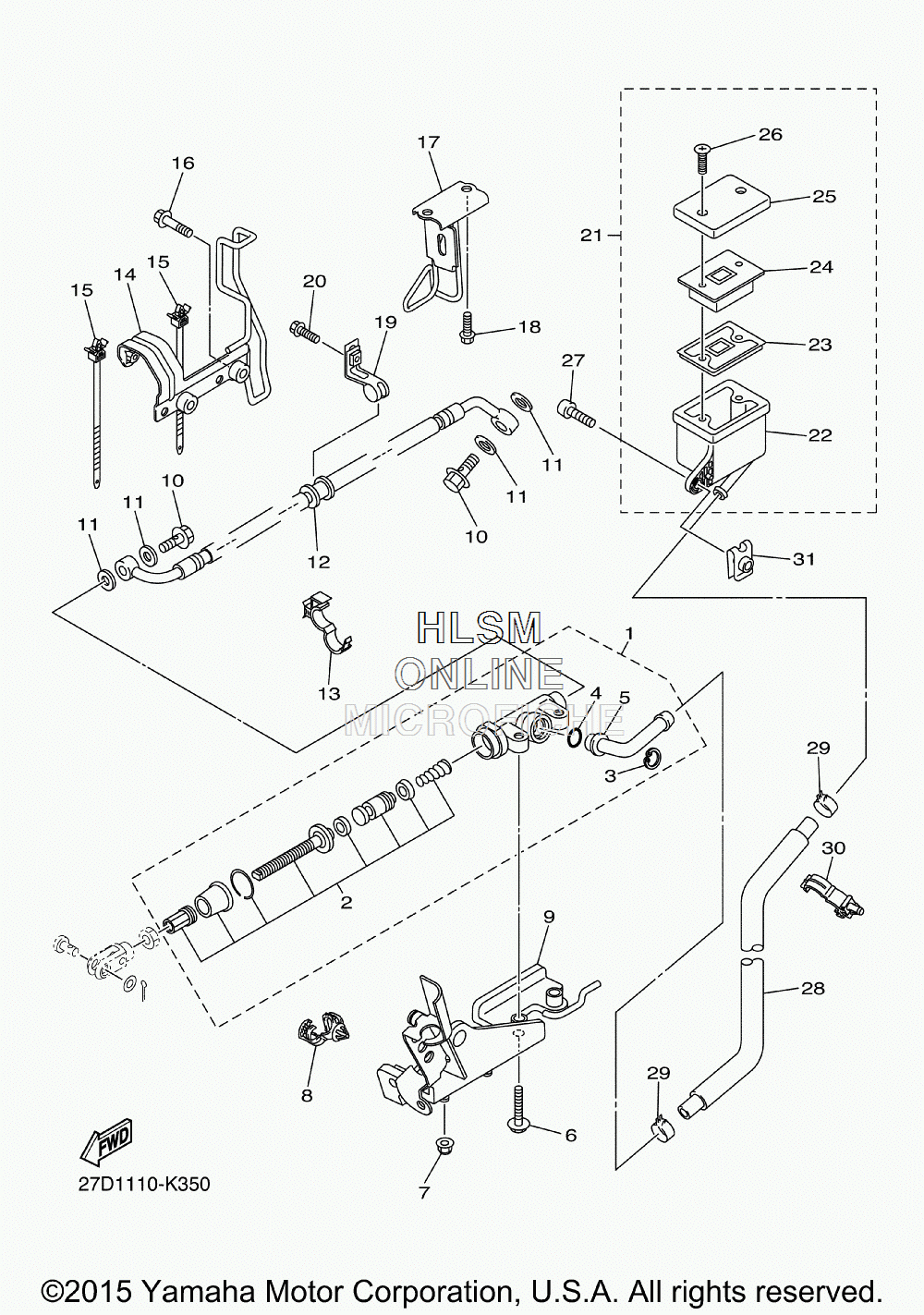

BRAKE - REAR MASTER CYLINDER для Yamaha STRYKER BULLET COWL [XVS13CGGY] - 2016 года выпуска
-
№АртикулНазвание
-
13D8-2583V-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
25EL-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
32VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
493210-15620-00 ...O-RING...O-RING
-
52VN-2582A-50-00 ...JOINT...JOINT
-
695024-08030-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890464-13249-00 CLAMPCLAMP
-
927D-27432-00-00 BRACKET 1BRACKET 1
-
1090401-10020-00 BOLT, UNIONBOLT, UNION
-
1190430-10005-00 GASKETGASKET
-
1227D-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
1390464-15192-00 CLAMPCLAMP
-
143D8-21374-10-00 HOLDER, FUEL PIPEHOLDER, FUEL PIPE
-
1590464-12036-00 CLAMPCLAMP
-
1695022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
173D8-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
1895022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
193D8-2588F-11-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
2095022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
215YU-25804-00-00 RESERVE TANK ASSYRESERVE TANK ASSY
-
225YU-25894-00-00 ...TANK, RESERVOIR...TANK, RESERVOIR
-
2355U-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
243GM-2585B-20-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
255YU-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
2698706-04040-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
2790111-06008-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
283D8-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2990467-12191-00 CLIPCLIP
-
3090464-16012-00 CLAMPCLAMP
-
3190183-06053-00 NUT, SPRINGNUT, SPRING
